Internet/Print Server User’s Guide
Port Pinouts76

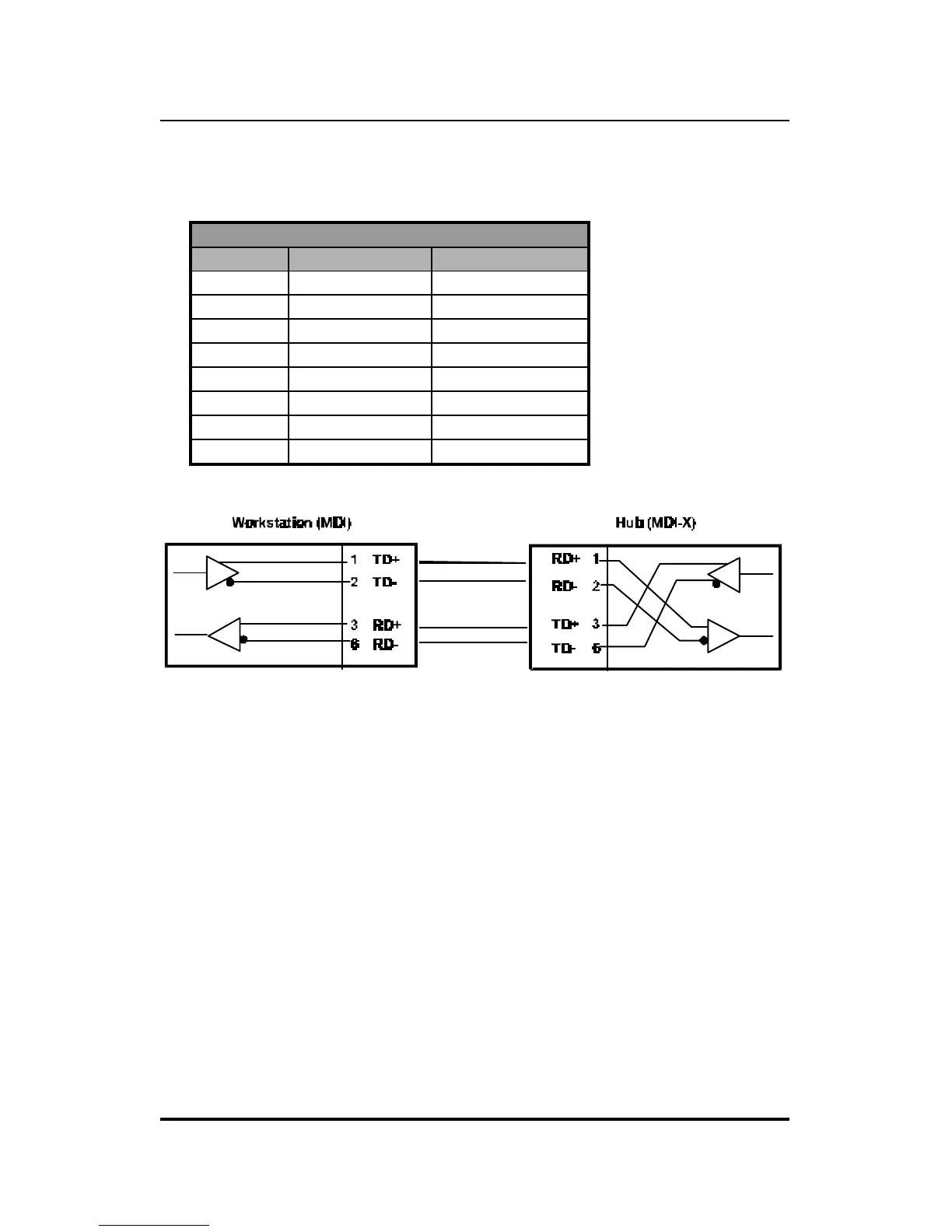

Straight Twisted-Pair Cable Pinouts
Contact MDI-X Signal MDI Signal
1 RD+ (receive) TD+ (transmit)
2 RD- (receive) TD- (transmit)
3 TD+ (transmit) RD+ (receive)
4 Not used Not used
5 Not used Not used
6 TD- (transmit) RD- (receive)
7 Not used Not used
8 Not used Not used
RJ-45 Twisted-Pair Cabling Active Pinout Configuration
