D-Link DSR-150 User Manual

D-Link DSR-Series User Manual 109
Section 7 - VPN

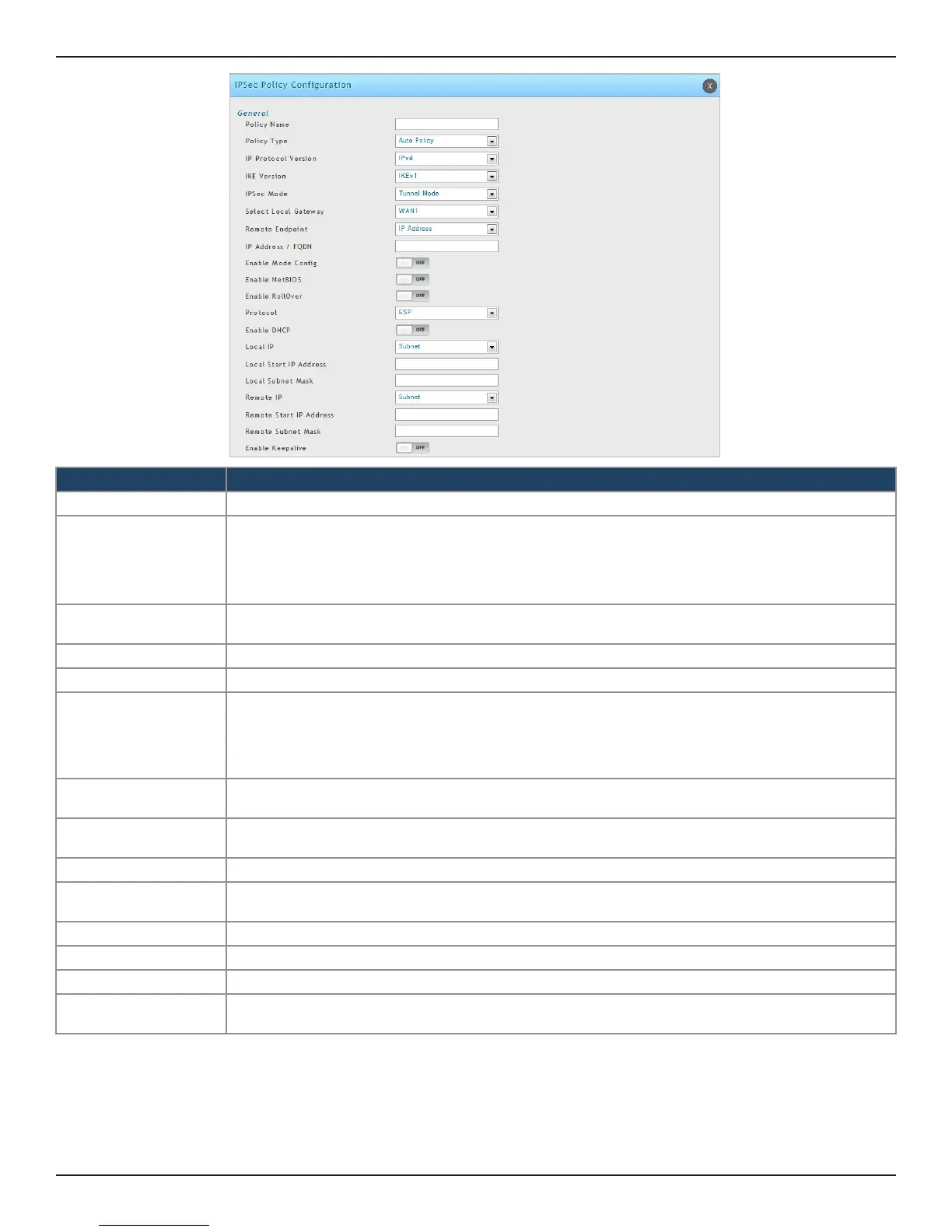

Field Description
Policy Name Enter a unique name for the VPN Policy. This name is not an identier for the remote WAN/client.
Policy Type
Select either Manual or Auto.
• Manual: All settings (including the keys) for the VPN tunnel are manually input for each end point. No
third-party server or organization is involved.
• Auto: Some parameters for the VPN tunnel are generated automatically. This requires using the IKE
(Internet Key Exchange) protocol to perform negotiations between the two VPN Endpoints.
IP Protocol Version
Select either IPv4 or IPv6. The drop-down menu is based up on the IP Mode selected by the user on the
IP Mode page.
IKE Version Select the version of IKE.
L2TP Mode Select the L2TP mode.
IPSec Mode
Select either Tunnel or Transport. IPsec tunnel mode is useful for protecting trac between dierent
networks, when trac must pass through an intermediate, untrusted network. Tunnel mode is primarily
used for interoperability with gateways, or end-systems that do not support L2TP/IPsec or PPTP
connections. Transport mode is the default mode for IPsec, and it is used for end-to-end communications
(for example, for communications between a client and a server).
Select Local Gateway
In the event that two WAN ports are congured to connect to your ISP, select the gateway that will be used
as the local endpoint for this IPsec tunnel.
Remote Endpoint
Select the type of identier that you want to provide for the router at the remote endpoint (either IP
Address or FQDN [Fully Qualied Domain Name])
IP Address/FQDN Enter the identier for the router.
Enable Mode Cong
Toggle to ON to enable. Mode Cong is similar to DHCP and is used to assign IP addresses to the remote
VPN clients.
Enable NetBIOS Toggle to ON to allow NetBIOS broadcasts to travel over the VPN tunnel
Enable RollOver Toggle to ON to enable VPN rollover. You must have the WAN Mode set to Rollover.
Protocol Select a protocol from the drop-down menu.
Enable DHCP
Toggle to ON to allow VPN clients that are connected to your router over IPsec to receive an assigned IP
using DHCP.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
