D-Link DSR-Series User Manual 52
Section 5 - Connect to the Internet
Bridge
Field Description
Routing Settings Select Bridge.
Bridge Interface IP
Address
Enter the bridge interface IP address.
DMZ Interface IP
Address
Enter the DMZ interface IP address.
Subnet Mask Enter the subnet mask.
NAT with WAN1 Toggle ON to turn NAT on WAN1 or OFF for classical.
Save Click to save and activate your settings.
When Bridge Mode routing is enabled, the rst physical LAN port and secondary WAN/DMZ (port 2) interfaces
are bridged together at Layer 2, creating an aggregate network. The other LAN ports and the primary WAN
(WAN1) are not part of this bridge, and the router asks as a NAT device for these other ports. With Bridge mode
for the LAN port 1 and WAN2/DMZ interfaces, L2 and L3 broadcast trac as well as ARP / RARP packets are
passed through. When WAN2 receives tagged trac the tag information will be removed before the packet is
forwarded to the LAN port 1 interface.
Note: Bridge mode option is available on DSR-500 / 500AC /1000 / 1000AC routers only.

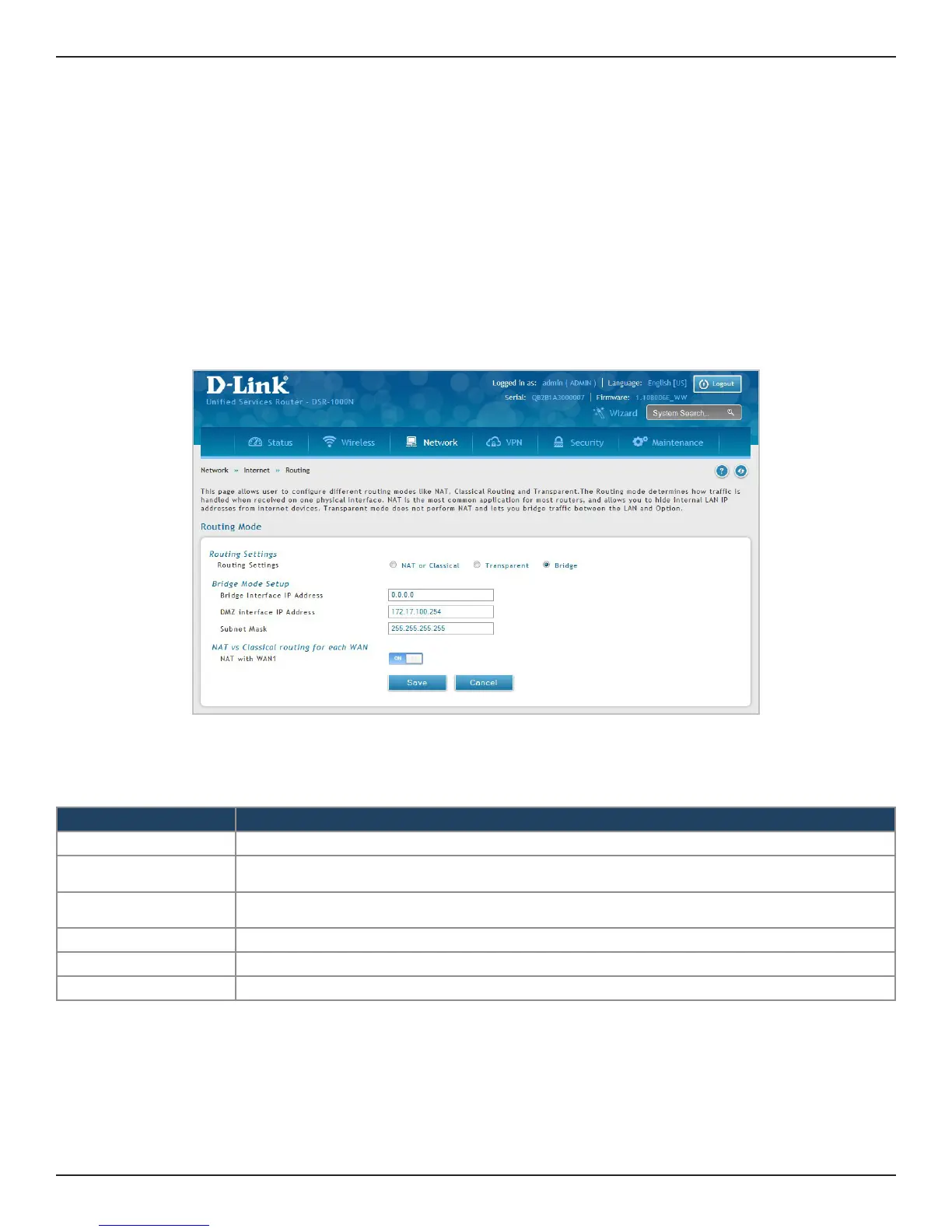

1. Click Network > Internet > Routing.
2. Complete the elds from the table below and click Save.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
