Section 7 - VPN

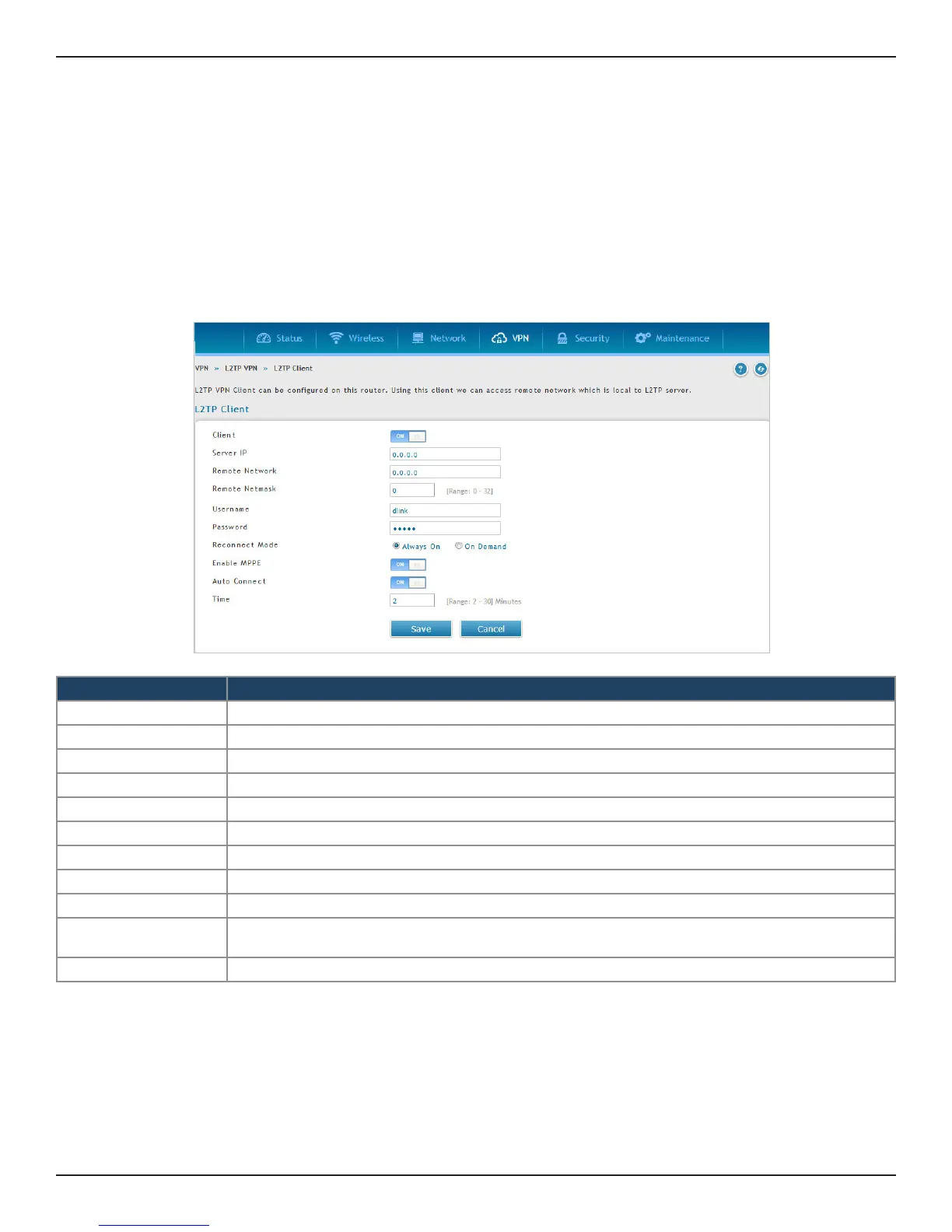

L2TP Client
Field Description
Client Toggle to ON to enable L2TP client.
Server IP Enter the IP address of the L2TP server you want to connect to.
Remote Network Enter the remote network address. This address is local for the L2TP Server.
Remote Netmask Enter the remote network subnet mask.
Username Enter your L2TP user name.
Password Enter your L2TP password.
Reconnect Mode Select Always On or On Demand.
MPPE Encryption Toggle to ON to enable Microsoft Point-to-Point Encryption (MPPE).
Auto Connect Toggle to On to enable Auto Connect.
Time
Enter the reconnect time. If the client is disconnected from the server, it will try to connect to the server
after the specied time.
Save Click Save to save and activate your settings.
L2TP VPN Client can be congured on this router. Using this client we can access remote network which is local to
L2TP server. Once client is enabled, the user can access Status > Active VPNs page and establish L2TP VPN tunnel
clicking Connect.
To congure the router as a L2TP VPN client:
1. Click VPN > L2TP VPN > L2TP Client tab.
2. Toggle Client to ON and complete the elds in the table below.
Note: When the L2TP Client conguration is correctly saved and the L2TP server is up, the tunnel initiation starts
automatically.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
