D-Link DSR-Series User Manual 15
Section 3 - Basic Conguration
Note: The IP address range used on the remote LAN must be dierent from the IP address range used on the local LAN.
7. You can quickly create both IKE and VPN policies. Once the IKE or VPN policy is created, you can modify
it as required.

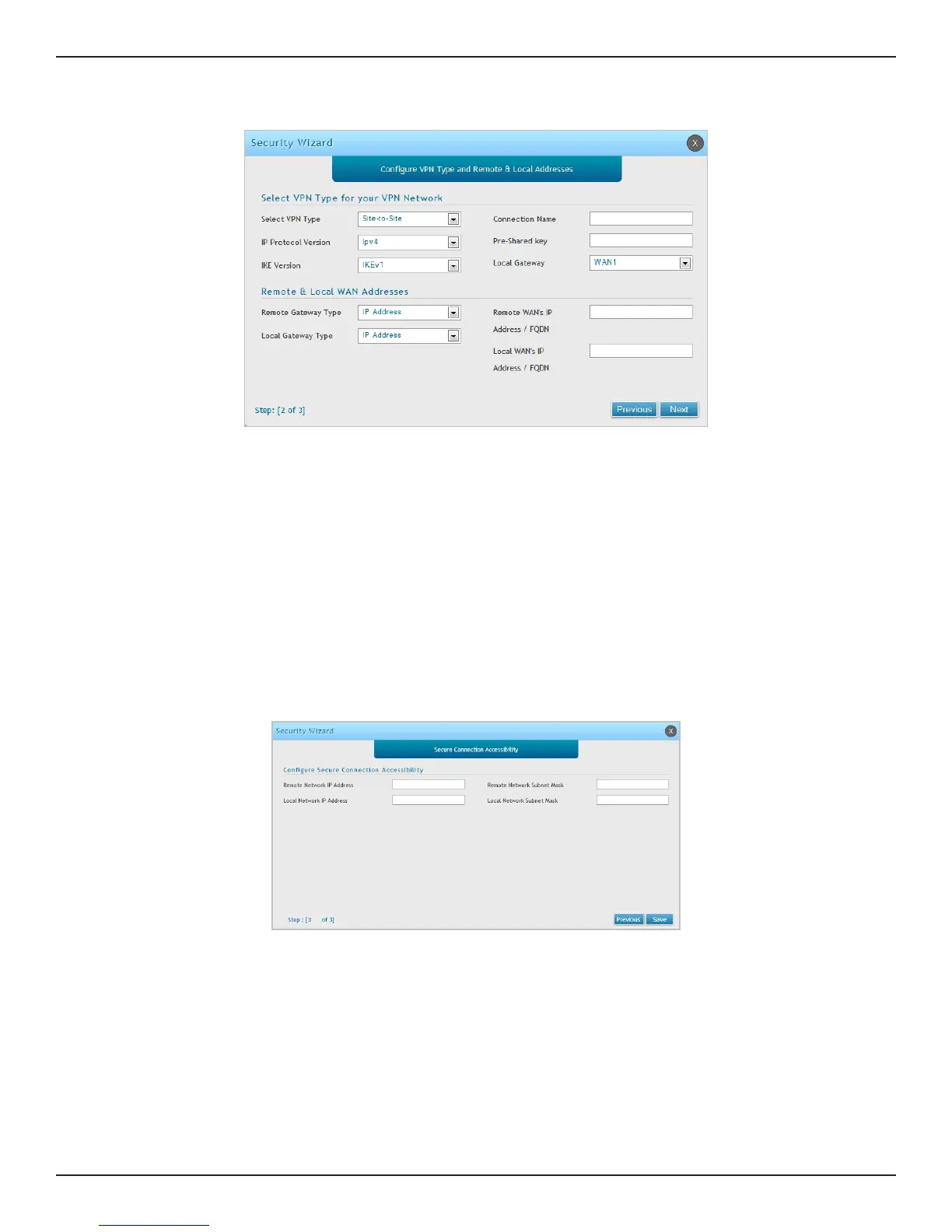

8. From the Select VPN Type drop-down menu, select either Site to Site or Remote Access.
9. Next to Connection Name, enter a name for this VPN connection.
10. Next to IP Protocol Version, select either IPv4 or IPv6.
Note: The IP Protocol Version drop-down list depends up on the IP Mode selected on the Network > IPv6 > IP
Mode page.
11. Next to IKE Version, select the version of IKE.
12. Next to Pre-Shared Key, enter the pre-shared key used.
13. Next to Local Gateway, select which WAN port used for the local gateway.
14. Next to Remote Gateway Type and Local Gateway Type, select either IP Address or FQDN.
15. Enter the Remote and Local WAN IP Address or FQDN and click Next.
16. Enter the remote network IP address and subnet mask.
17. Enter the local network IP address and subnet mask.
18. Click Save.
