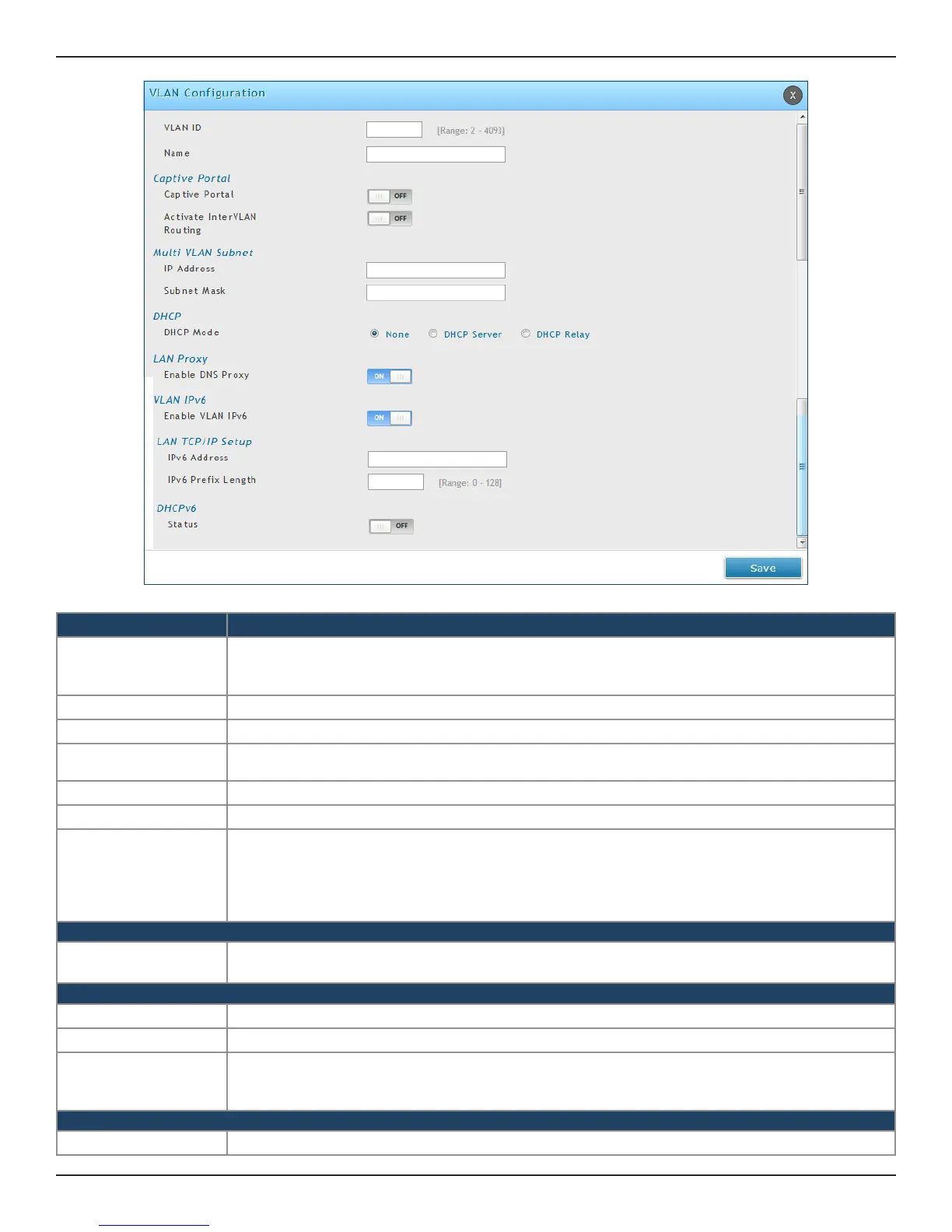

Section 4 - LAN Conguration
Field Description
VLAN ID
Enter a number between 2 and 4093. This numeric value associated with the VLAN is used both
for management and in some cases to update the Ethernet packet header for member device trac
forwarded through this VLAN.
Name Enter a name for your VLAN.
Captive Portal Toggle ON to enable Captive Portal (refer to “Captive Portal” on page 29 for more information).
Activate InterVLAN
Routing
Toggle ON to allow routing between multiple VLANs or OFF to deny communication between VLANs.
IP Address Enter the IP address for the VLAN.
Subnet Mask
Enter the subnet mask for the VLAN.
DHCP Mode
Select one of the following modes:
• None - Turns o DHCP for your VLAN.
• DHCP Server (default) - The router will act as the DHCP server for your VLAN.
• DHCP Relay - DHCP clients on your VLAN will receive IP address leases from a DHCP server on a
dierent subnet.
LAN Proxy
Enable DNS Proxy
Toggle ON to enable the router to act as a proxy for all DNS requests and communicate with the ISP’s DNS
servers.
VLAN IPv6
Enable VLAN IPv6 Toggle to ON to enable IPv6 on this VLAN.
IPv6 Address Enter the router’s VLAN IPv6 address.
IPv6 Prex Length
Enter an IPv6 prex length. The range is 0 to 128. The IPv6 network (subnet) is identied by the initial
bits of the address called the prex. All hosts in the network have the identical initial bits for their IPv6
address; the number of common initial bits in the networks addresses is set by the prex length eld.
DHCPv6
Status By default the DHCPv6 server is disabled for the VLAN. Once enabled, congure the elds given below.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
