Section 4 - LAN Conguration

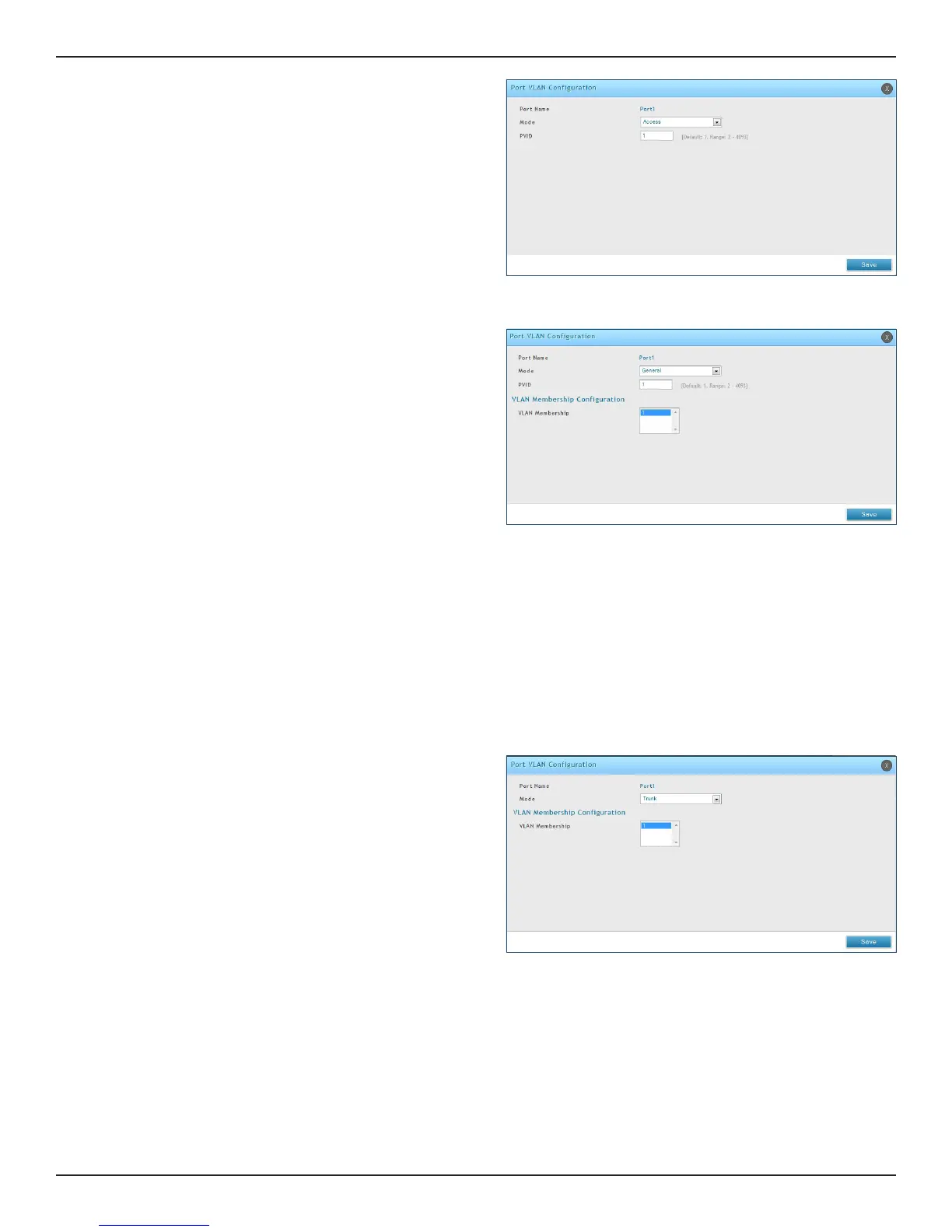

In Access mode the port is a member of a single VLAN
(and only one). All data going into and out of the port is
untagged. Trac through a port in access mode looks
like any other Ethernet frame.
In General mode the port is a member of a user selectable
set of VLANs. The port sends and receives data that is
tagged or untagged with a VLAN ID. If the data into the
port is untagged, it is assigned the dened PVID.
For example, if Port 3 is a General port with PVID 3, then
the untagged data into Port 3 will be assigned PVID 3. All
tagged data sent out of the port with the same PVID will
be untagged. This is mode is typically used with IP Phones
that have dual Ethernet ports. Data coming from phone
to the switch port on the router will be tagged. Data
passing through the phone from a connected device will
be untagged.
Note: The DSR-150/150N do not support General mode due
to hardware limitations.
In Trunk mode the port is a member of a user
selectable set of VLANs. All data going into and out
of the port is tagged. Untagged coming into the port
is not forwarded, except for the default VLAN with
PVID=1, which is untagged. Trunk ports multiplex
trac for multiple VLANs over the same physical link.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
