Unified Services Router User Manual
64
o DMZ: If this option is selected, you are able to configure the DMZ port on the DMZ
Configuration menu.
Click Save Settings to save your changes.
Click Don't Save Settings to revert to the previous settings.

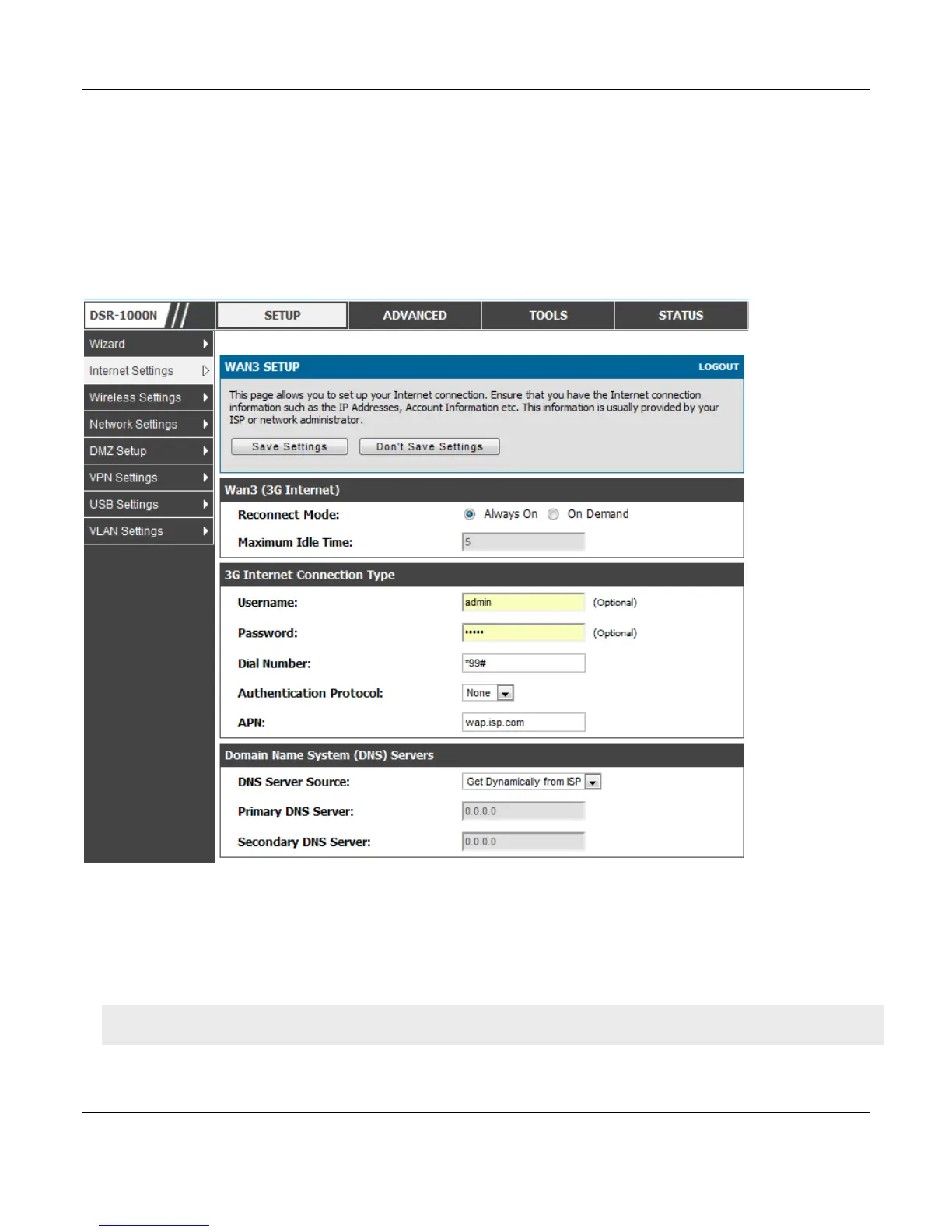

Figure 43: WAN3 configuration for 3G internet
Cellular 3G internet access is available on WAN3 via a 3G USB modem for DSR-1000 and DSR-
1000N. The cellular ISP that provides the 3G data plan will provide the authentication requirements
to establish a connection. The dial Number and APN are specific to the cellular carriers. Once the
connection type settings are configured and saved, navigate to the WAN status page (
Setup >
Internet Settings > WAN3 Status
) and Enable the WAN3 link to establish the 3G connection.
The 3G USB modem can be configured as the third WAN in DSR-1000 and DSR- 1000N.
