The 3-point hitch can be controlled
by the position control lever and the
draft control lever. The lever installed
on the outer side (away from the
driver) is the position control lever
while the lever installed on the inner
side (close to the driver) is the draft
control lever.
POSITION CONTROL
1. The position control lever is used
to lift or lower the lifting arm (lower
link) of the 3-point hitch.
3-POINT HITCH CONTROL
SYSTEM

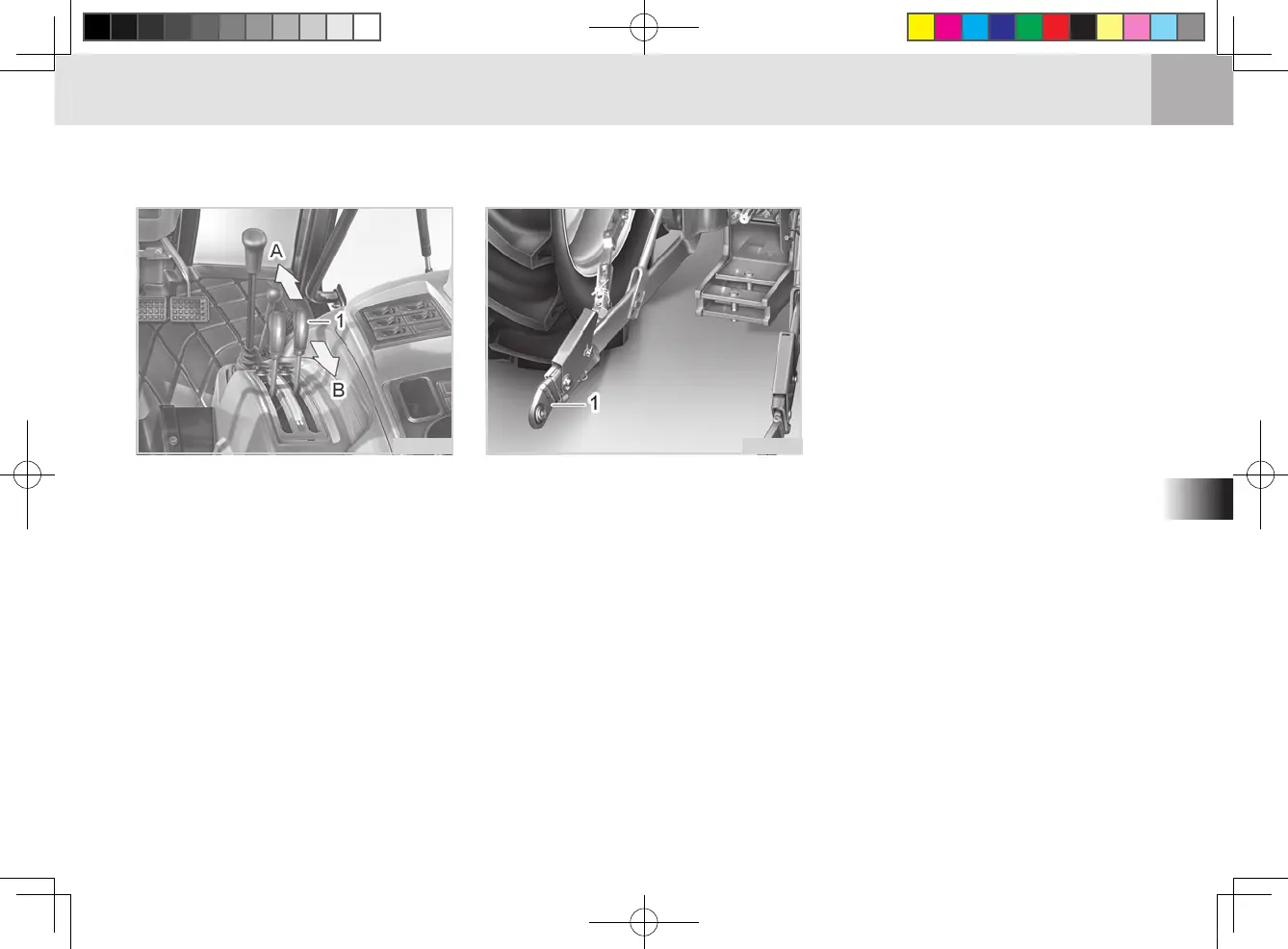

(1) Position Control Lever
(A) Lowering (B)Lifting
H11O538a
(1) Lower Link
5. Therefore, the implement attached
to the lower link may be lifted by
protrusion on the ground when it is
lowered to the ground. It is called
as "oating”.
2. Pushing the lever forward lowers
the lower link while pulling the le-
ver backward lifts the lower link.
3. The height of the lower link is pre-
cisely controlled proportional to
the position of the lever.
4. The lower link is lifted by the hy-
draulic energy of the tractor while
it is lowered by potential energy of
its own weight. Therefore, the im-
plement cannot be lowered by the
hydraulic pressure.
