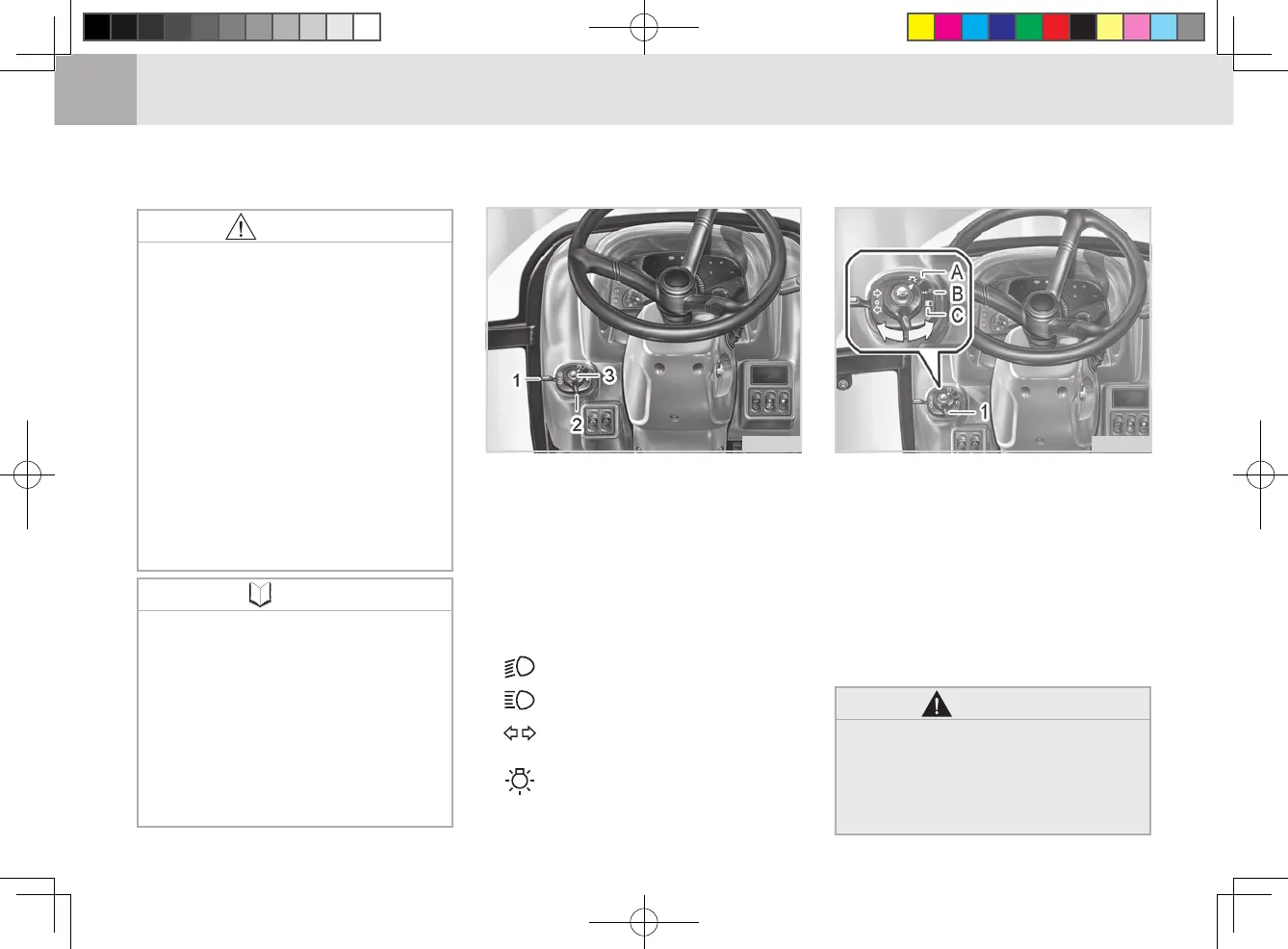

COMBINATION SWITCH
(1) Head light switch
(A) OFF (B) Low beam ON
(C) High beam ON
H23O407A
The combination switch consists of
the head light, turn signal light, and
horn switches. Its function by its po-
sition is as follows:
HEAD LIGHT SWITCH
The head light switch can be operat-
ed only while the key switch is turned
to the “ON” position. Turning the head
light switch clockwise one click will il-
luminate the low beam head lights
while turning it one more click will illu-
minate the high beam head lights.

Driving with high beam head
light disturbs the approaching
vehicle’s visibility for safe driv-
ing. Use the high beam head
lights only if necessary.
H23O406A
(1) Turn signal light switch
(2) Head light switch
(3) Horn switch

Stop the engine immediately if
the oil pressure warning lamp
does not go off after the en-
gine is started. The engine may
be severely damaged.

If the battery charge warn-
ing lamp does not go off af-
ter the engine is started, check
the electrical systems, such
as the alternator, for damage.
Continuing to use the engine
under this condition can dis-
charge the battery or damage
other electrical devices.

The ignition key is not direction-
al and can be inserted in any di-
rection. Also, be careful not to
leave the tractor unattended as
the same key is used for all KIO-
TI tractors. It can be stolen.

The horn, turn signal lamp, and
hazard lamp can be operated
without the key inserted.
CAUTION
NOTE
OFF : Head light and tail light OFF
:
Low beam and tail light ON
: High beam and tail light ON
: Turn signal light ON
:
Head light OFF and
tail light ON
WARNING
