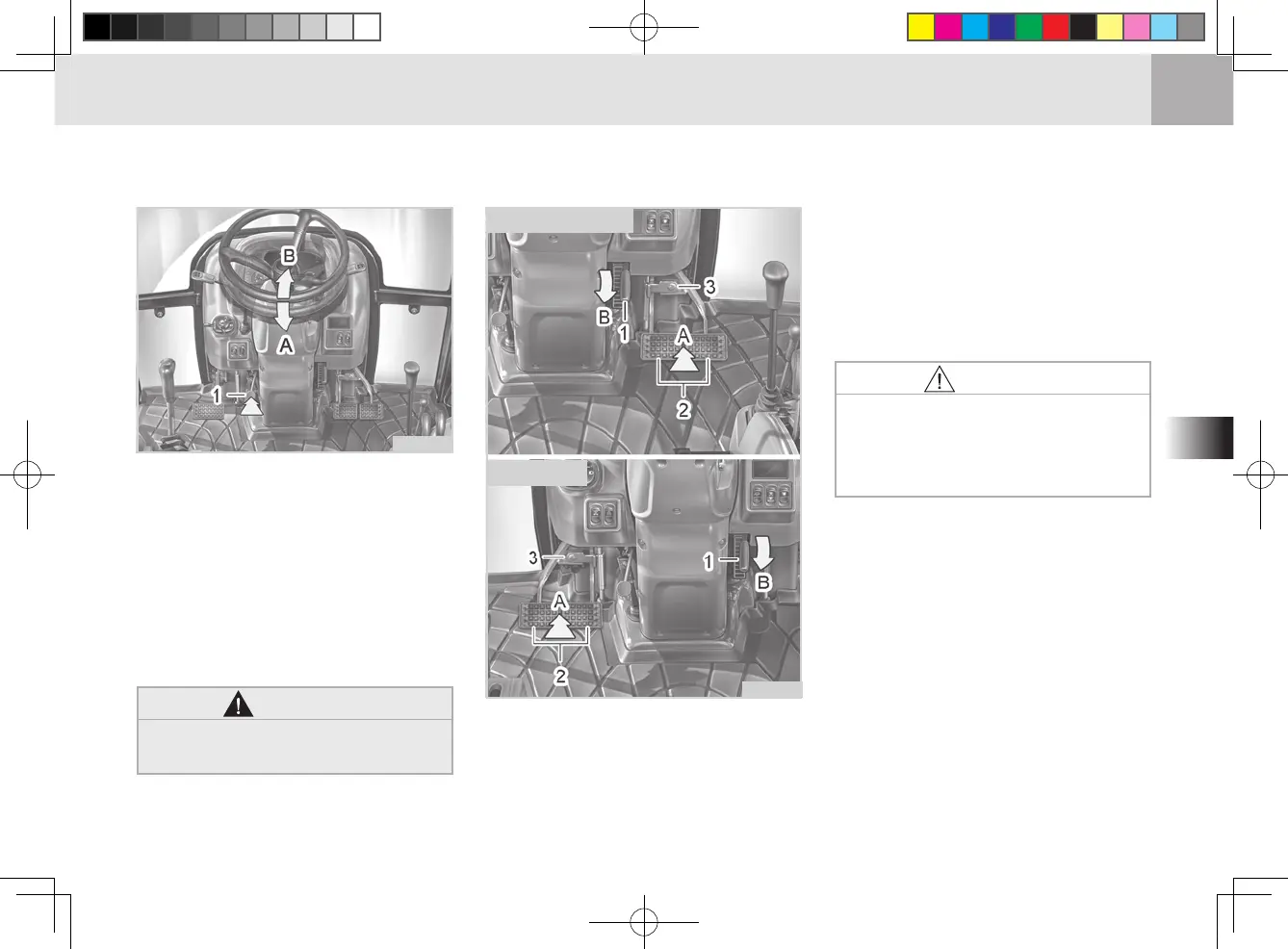

PARKING BRAKE LEVER
(1) Parking Brake Lever
(2) Brake Pedal
(3) Connecting Hook
(A) Depressing (B) Pressing Down
H23O463A
STEERING WHEEL
ADJUSTMENT
(1) Steering Wheel Tilt Pedal
(A) Lowering (B) Lifting
H23O462A

Do not adjust the tilt steering
while driving.
The angle of the steering wheel can
be adjusted for the driver’s comfort.
Hold the steering wheel with both
hands, depress the tilt pedal light-
ly and then adjust the position of the
steering wheel as desired.

If the vehicle is driven with the
parking brake partially or com-
pletely engaged, it may cause
early wear of the brake disc.
To stop the tractor, depress the brake
pedal and pull the lever up to apply
the parking brake.
The parking bake is automatically re-
leased by depressing and then re-
leasing the brake pedal.
WARNING
HST Type
MANUAL Type
CAUTION
