INSTRUMENT PANEL
VIEW
Symbols on the instrument panel come on when the key switch is turned to the “ON” position.
H23O420A

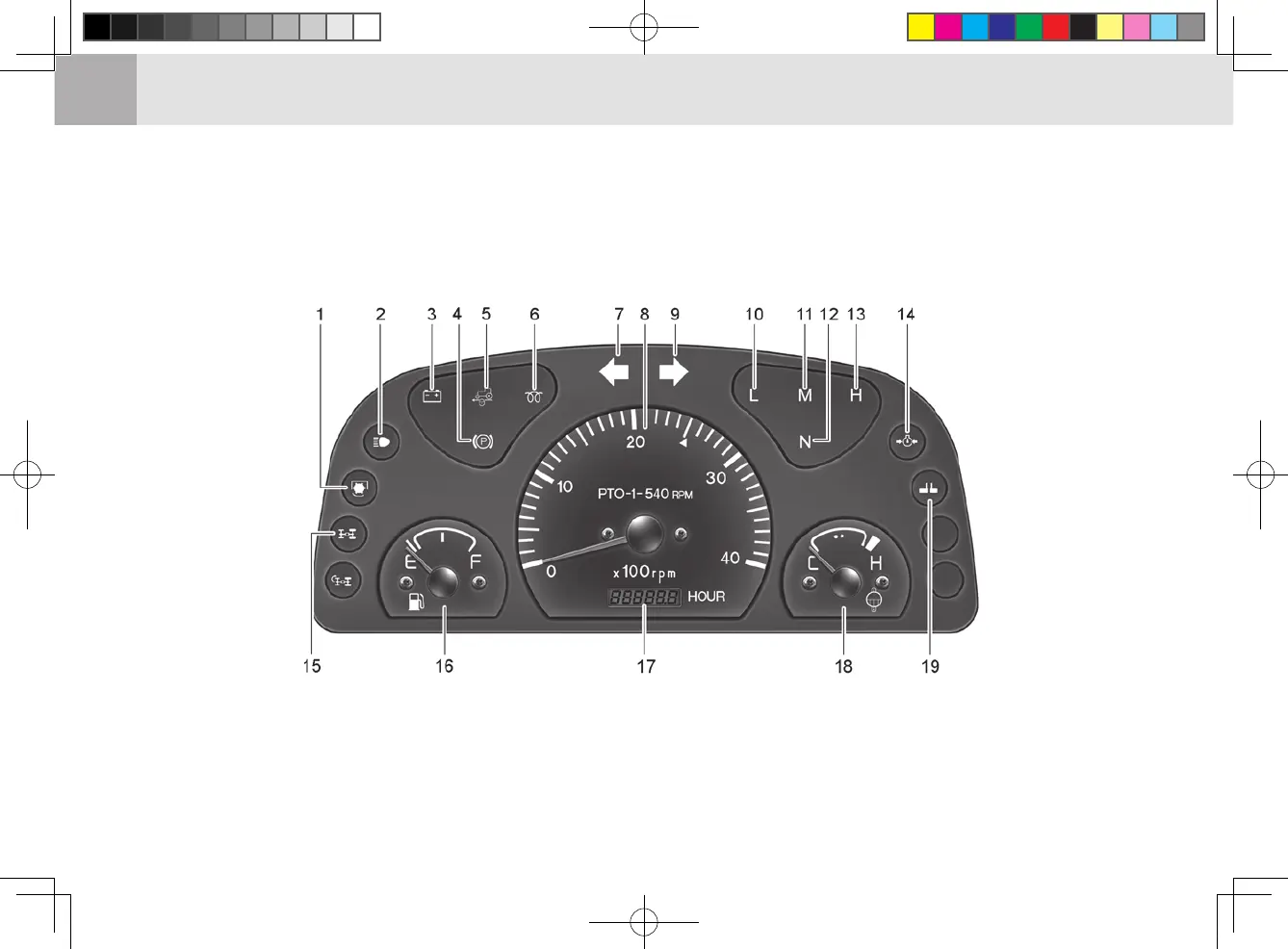

(1) PTO Indicator
(2) High Beam Indicator
(3) Battery Charge Warning Lamp
(4) Parking Brake Indicator
(5) Cruise Indicator
(6) Glow Plug Indicator
(13) High Speed Indicator
(14) Engine Oil Pressure Warning Lamp
(15) 4WD Engaged Indicator
(16) Fuel Gauge
(17) Hour Meter
(18) Coolant Temperature Gauge
(7) Turn Signal Light (LH)
(8) Tachometer
(9) Turn Signal Light (RH)
(10) Low Speed Indicator
(11) Mid Speed Indicator
(12) Neutral Indicator
(19) Brake (One Side) Lamp
MANUAL Type
