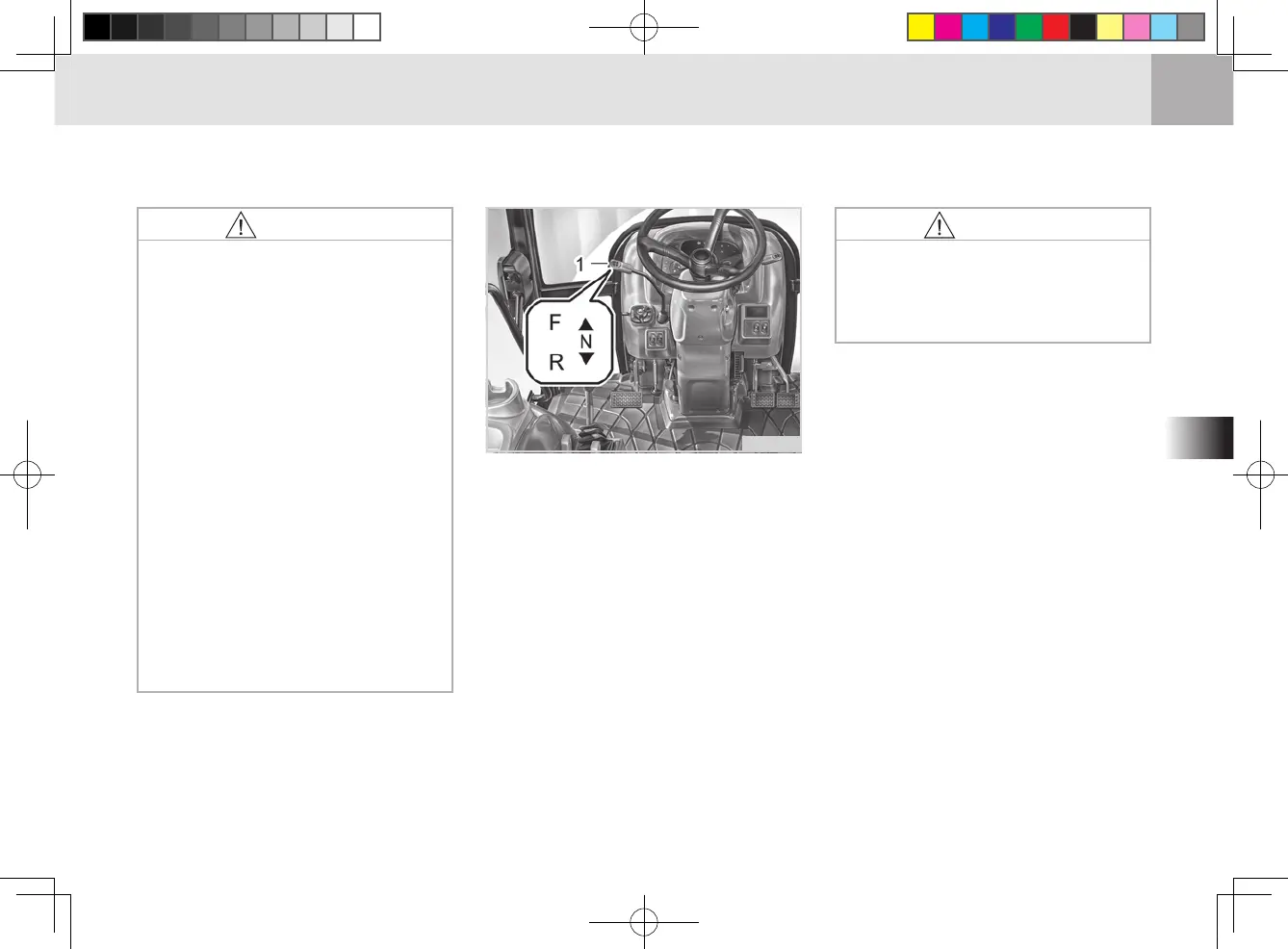

SHUTTLE SHIFT LEVER
H23O457A
(1) Shuttle Shift Lever
(F) Forward (R) Reverse
(N) Neutral

Make sure to shift the range
gear shift lever with the clutch
pedal depressed and the trac-
tor stationary (Manual Type).

Never put the range shift lever
into the high speed position
during driving backward as it
is dangerous to drive at a high
speed.

The tractor is not braked by
depressing the brake pedal
without depressing the clutch
pedal at a low speed as rota-
tional force of the axle has a
major effect at a low speed.
T h e r e f o r e , d i s e n g a g e t h e
clutch before depressing the
brake pedal to stop the tractor.
(Manual Type)

Reduce the speed before mov-
ing this lever since it is very
dangerous to switch the driv-
ing direction at a high speed.
This lever is used to select forward
or reverse driving. The lever can be
shifted while the tractor is moving
with the clutch disengaged as these
gears are synchromesh. Shifting this
lever frequently can deteriorate the
trans-mission’s life and durability.
Put this lever into the neutral position
when the tractor is not driven.
CAUTION
CAUTION
