DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
4
4
-
39
4
-
38
DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
H23O4F0A

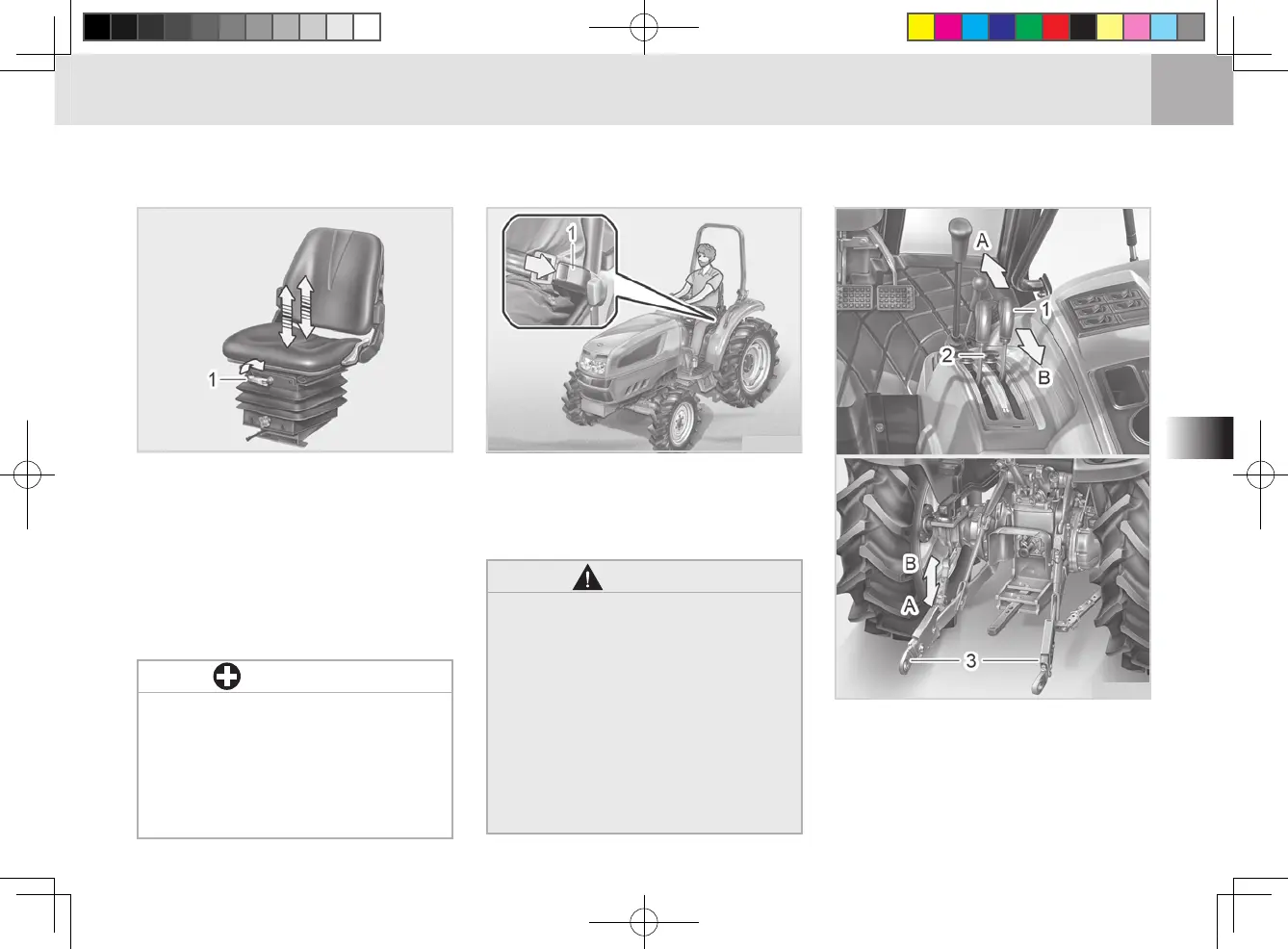

(1) Seat Belt
SEAT BELT
The seat cushion can be adjusted ac-
cording to the weight of the driver.
Turning the cushion adjustment lever
counterclockwise to the 50 kg position
makes the cushion lighter, and turning
the lever clockwise to the 120 kg po-
sition makes the cushion heavier.
CUSHION STRENGTH
ADJUSTMENT
(1) Cushion Adjustment Lever
H11O471A
The seat belt is self-retracting type.
Make sure to fasten the seat belt be-
fore driving.
POSITION CONTROL LEVER
(1) Position Control Lever (3) Lower Link
(2) Lock Bolt
(A) Lowering (B) Lifting
T46O518A

Always fasten the seat belt
when the tractor has ROPS
properly. Otherwise, never
wear the seat belt.

Make sure that the seat belt
is not twisted. It cannot work
properly, leading to a danger-
ous situation.

Be extra careful not to let any
part of your body under the
tractor or an implement when
lowering an implement.
WARNING

When the operator leave from
the seat, engine will stop with
seat except conditions below.

Parking brake is ON.

Shuttle range lever is in the neutral.

Mid PTO is OFF.
IMPORTANT
