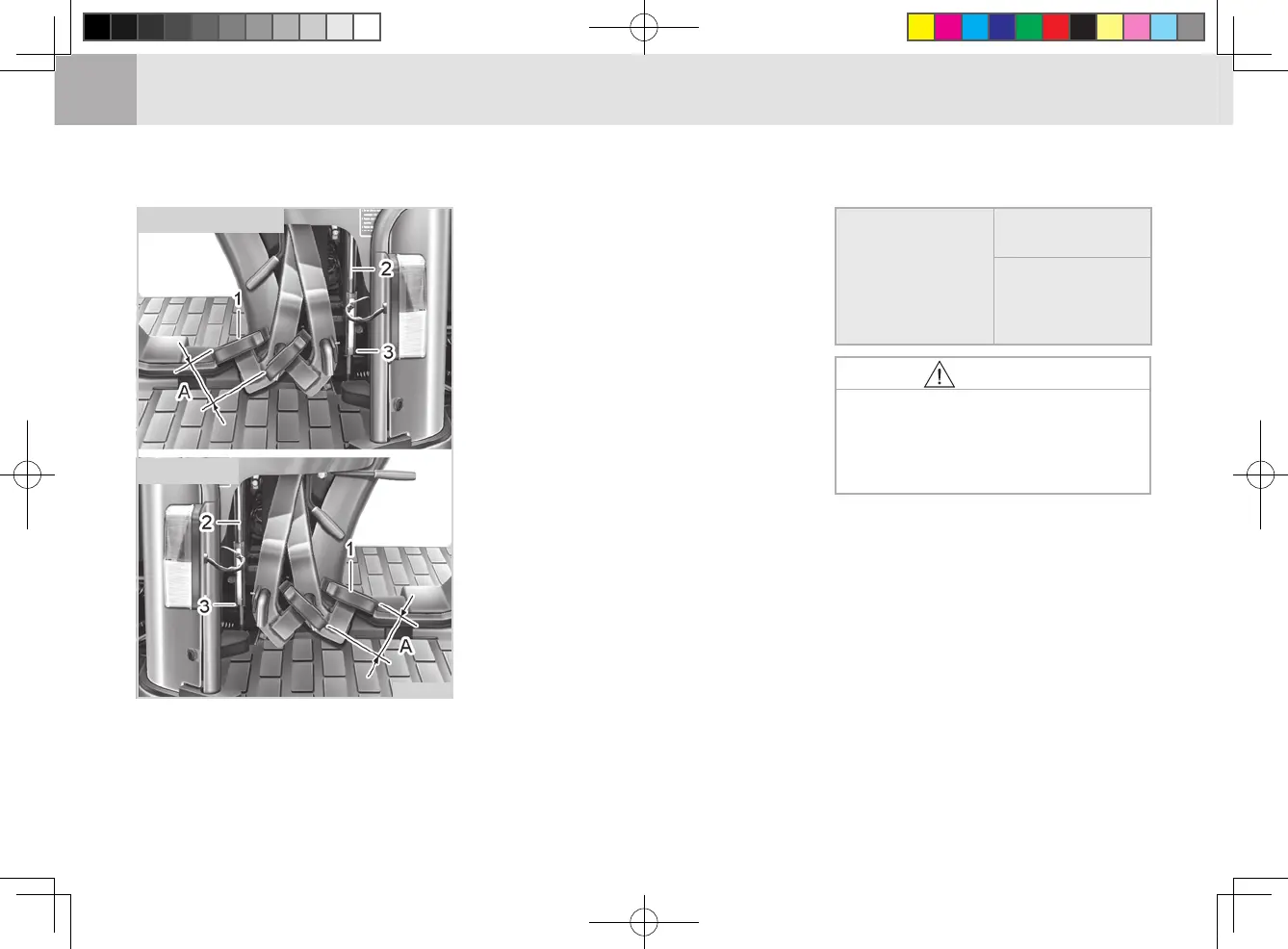

(1) Brake Pedal (3) Lock Nut
(2) Brake Rod (A) Free Play
H23O628A

Using the brake pedal for an extend-
ed period of time causes it to play.
This may lead to deterioration of the
braking performance and malfunc-
tion of the braking system.
The brake pedal can be adjusted as
follows:
1. Release the parking brake
2. Slightly depress the pedals and
measure the free travel at the top
of the pedal stroke.
3. When adjustments are needed,
loosen the locking nut and turn the
turnbuckle until the rod length is at
the desired and acceptable limit.
4. Re-tighten the lock nuts.
5. Perform the same procedure for
the left brake pedal and measure
its play.
6. Interlock the brake pedals after
checking or adjusting them.


Proper brake
pedal free travel
(A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
Keep the free
travel in the right
and left brake
pedals equal.



   

CAUTION
