Daedong KIOTI EX45 - Draft Control Lever (if EQUIPPED)

4
-
41
4
-
40
DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
4
-
41
4
-
40
DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)

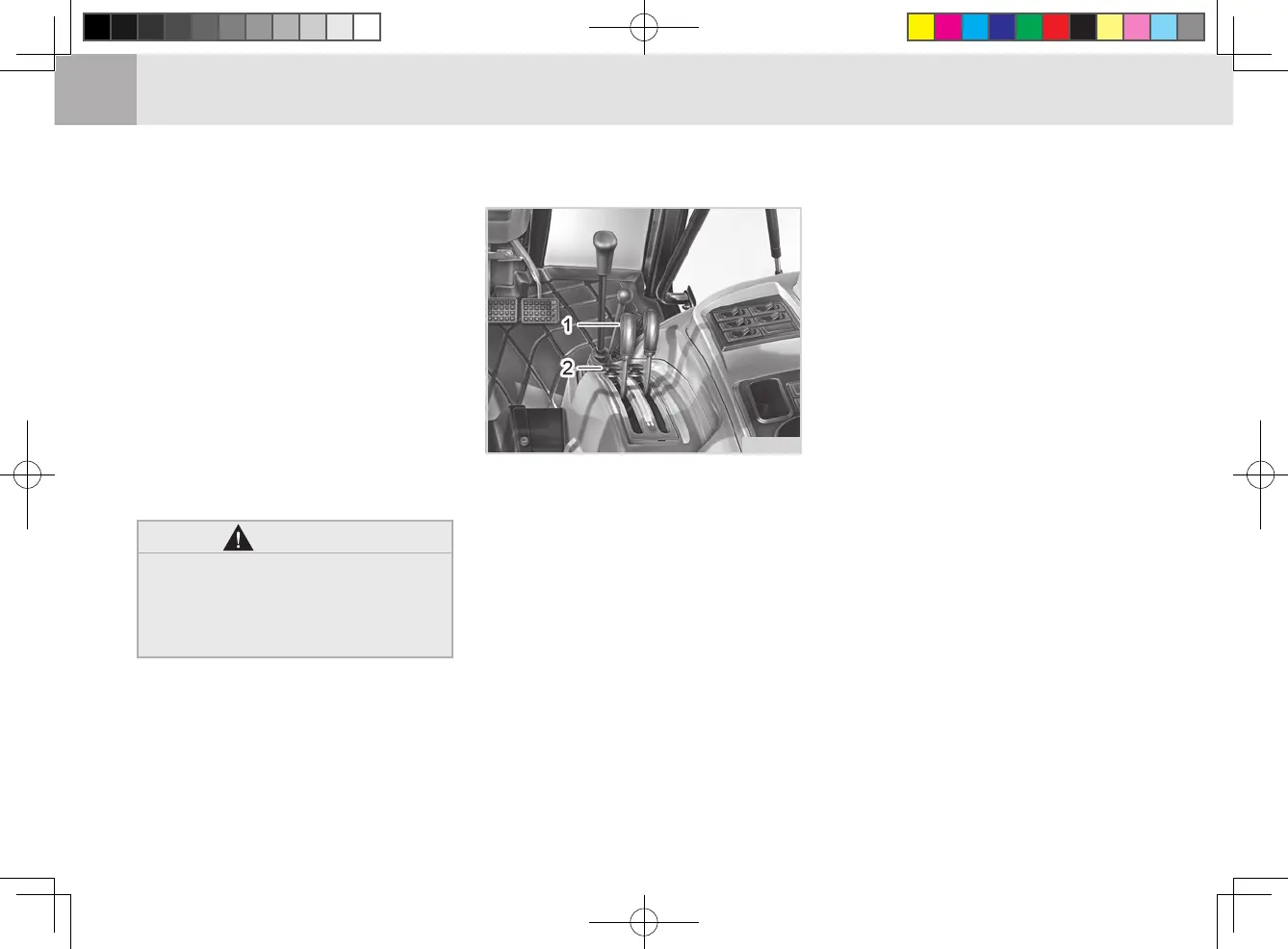

(1) Draft Control Lever (2) Stop Bolt
H11O473A
DRAFT CONTROL LEVER
(IF EQUIPPED)
The draft function can be used for
the plow which is installed to the low-
er link. (Lifting arm)
If the plow is applied with exces-
sive draft, the lifting arm is automat-
ically raised to reduce the draft and
then returned to its original. This is
called as “Draft Function”. The plow-
ing depth can be controlled by the
soil status by putting the draft control
lever into the “Deep” position to ac-
tivate the draft function at mid load
The position control lever is used to
keep the plowing depth constant dur-
ing work.
The implement attached to the lifting
arm can be lowered by pushing the
lever while the implement is raised
by pulling the lever.
In order to limit the lowering height of
implements, use the lock bolt (2) to
limit the operating range of the lever.
For detailed information, refer to “Ini-
tial Operation” in Chapter 5.
and putting the lever into the “Shal-
low” position to activate the draft
function at light load.
For detailed information, refer to “Ini-
tial Operation” in Chapter 5.

Make sure that there is nobody
or not obstacle aroud the three-
point linkage before cotrolling
position lever.
WARNING
