Daedong KIOTI EX45 - SLOW Blow FUSE(Ap); Slow Blow Fuse (Ap); Replacing Bulb(Aq); Replacing Bulb (Aq)

7
-
39
7
-
38
MAINTENANCEEX35(C)/EX40(C)/EX45(C)/EX50(C)
7
7
-
39
7
-
38
MAINTENANCEEX35(C)/EX40(C)/EX45(C)/EX50(C)
NO. Bulb Capacity
1 Headlamp 35W / 35W
2 Position lamp (front) 5W
3
Stop/Position lamp
(rear)
21W / 5W
4 Turn signal lamp 21W
5 Work lamp 21W
6
Cluster
indicator
Charging
warning
light
3W
Others 1.4W
7 Backup lamp 10W

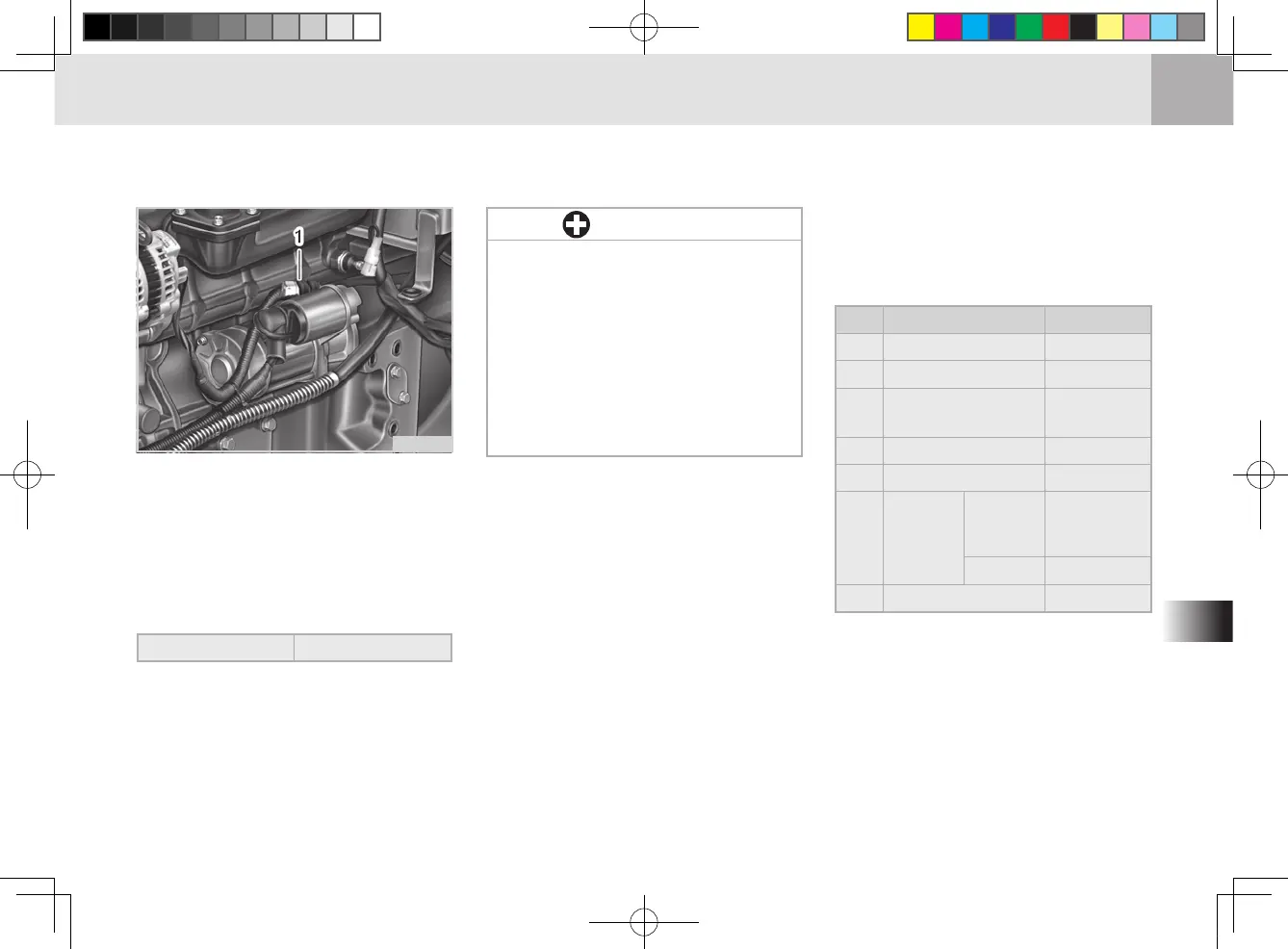

(1) slow blow fuse
H11O657A

The slow-blow fuse is to protect the
electric wiring. If it is blown, nd and
repair the cause and replace it with a
new genuine part.

   
    -
     -


    -
    

   -

The bulb and capacity used in this
tractor are listed in the blow table.
This section only describes proce-
dures the users can handle.

Slow blow fuse 60A

