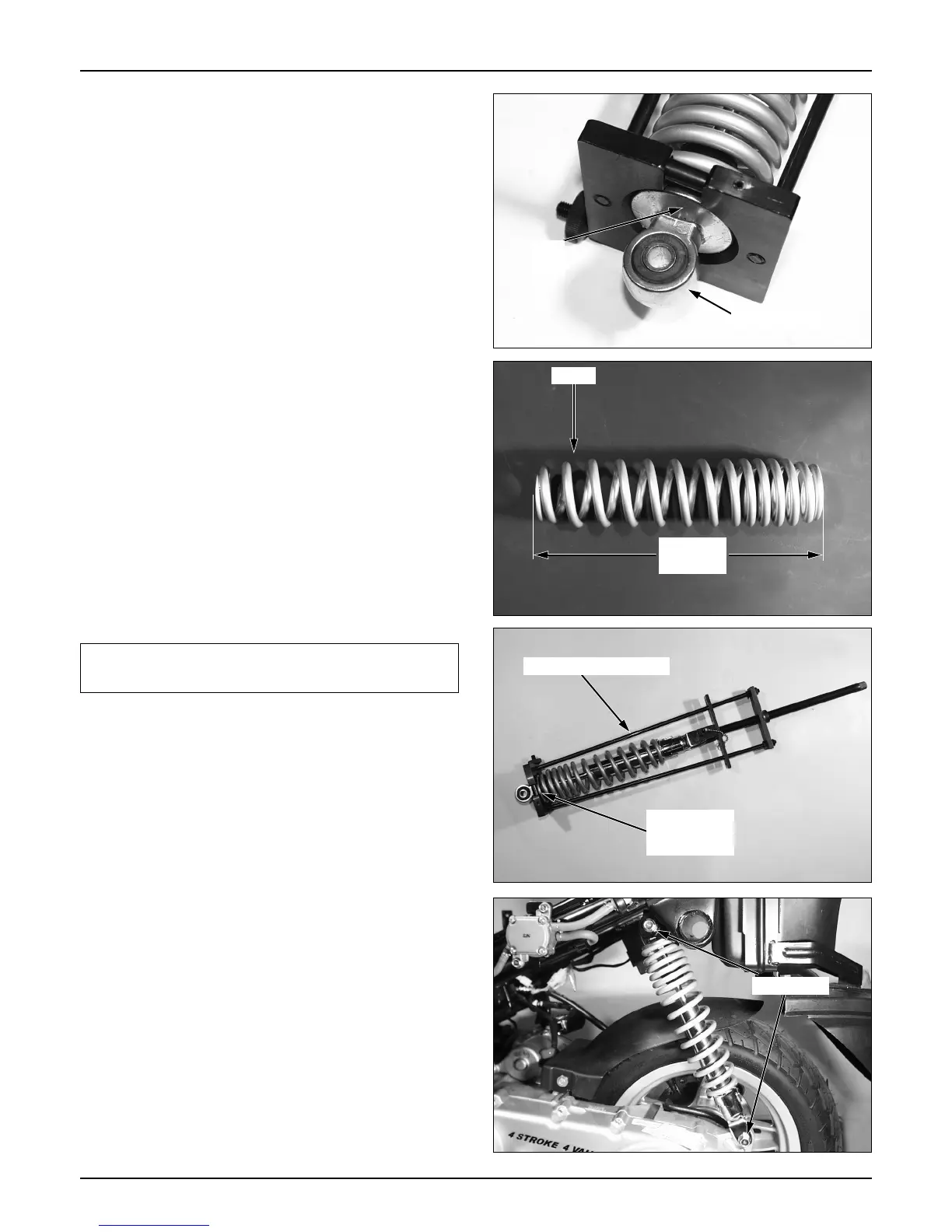

Rear Wheel/Brake/Suspension
Fix the bottom metal, and loosen the lock nut.
Remove the bottom metal.
Remove the lock nut, bottom metal, stopper
rubber, spring, and spring guide from the
damper component.
Inspection
Measure the rear cushion spring free length.
Check the damper rod for deflection or damage.
Service limit: 238mm
Assembly
Assemble the spring, spring guide, and stopper
rubber.
NOTE
Apply thread locking agent to the lock nut, and
install the rear cushion compressor attachment on
the damper rod.
Fix the upper joint, and tighten the lock nut.
Torque value: 2.0kg-m(20N.m, 14ft-lb)
Tools: Rear compressor
Rear cushion compressor attachment
Installation
Assemble the rear cushion.
Tighten the top and bottom of the cushion with bolt.
Torque value: Upper side 2.7kg-m(27N.m, 20ft-lb)
Lower side 4.0kg-m(40 N.m, 29ft-lb)
13-5
Spring
Free
length
Bottom metal
Lock
nut
Cushion compressor
Compressor
attachment
Setting bolt
Install the spring with its narrow pitch side
facing upward
