13-6
Rear Wheel/Brake/Suspension
Rear Swing Arm
Removal
Remove the following parts.
- EX. muffler.(4-9)
- Rear brake caliper.
Loosen the axle nut, remove the rear swing arm.
Disassemble the rear wheel outside collar to the
rear swing arm.
Disassemble the oil seal and radial ball bearing.
Install in the reverse order of removal.
Torque value
- Rear wheel axle nut: 6.0-8.0kgf
m

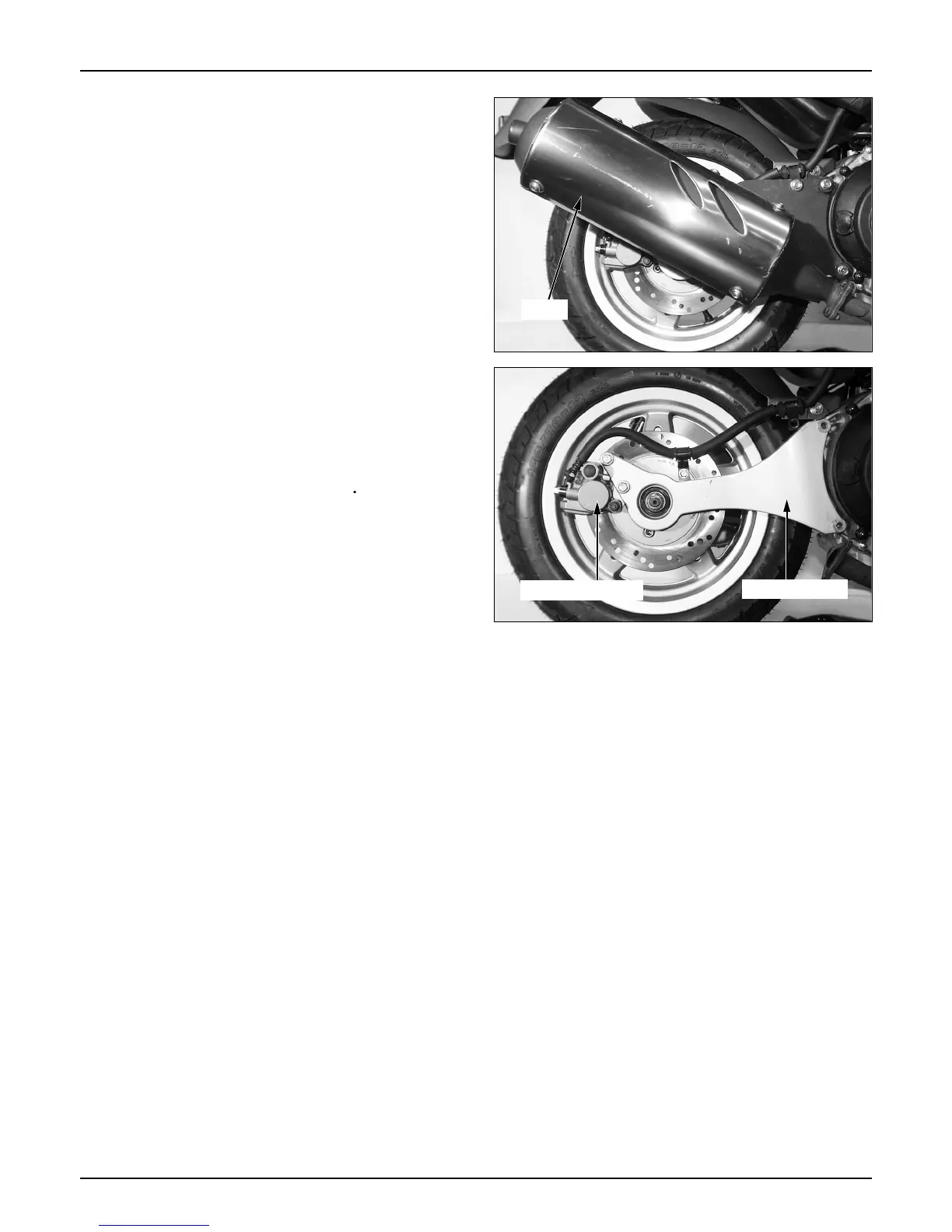

Muffler
Rear brake caliper
Rear swing arm
To Next Page
