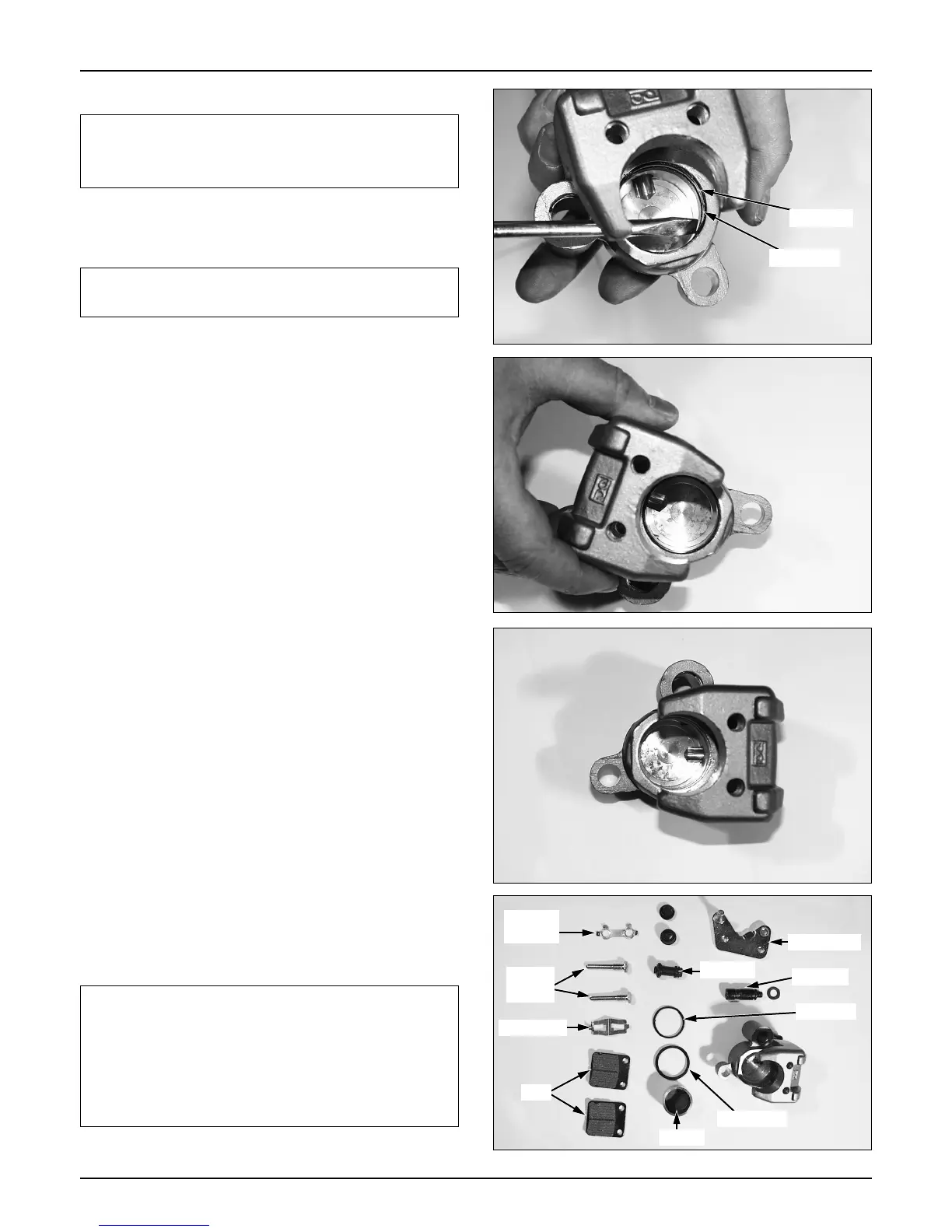

Brake System
CAUTION
Disassemble the piston seal and the dust seal.
NOTE
Clean the piston and the inside of the caliper and
remove the oil from the seal groove.
Front brake caliper inspection
Caliper cylinder
Check the caliper cylinder bore for scoring,
scratches or other damage.
Caliper piston
Check the caliper piston O.D. part for scratches
or other damage.
Front brake caliper installation
Clean the piston seal and the dust seal with the
brake fouid and install them in the caliper. Install
the piston in the caliper with the groove side of
the piston facing the pad.
NOTE
14-7
Make sure that each part is free from dust or dirt
before reassembly.
Replace the dust seals and piston seals as a set
whenever they are removed.
When cleaning with the brake fluid, use the
specified brake fluid.
Never use the high-pressure air or bring the air
gun too close.
Never touch the inside of the caliper.
Pay attention not to damage the inner surface of
the caliper.
Dust seal
Piston seal
Rear bracket
Slide pin
pin bush
Dust seal
Piston seal
Piston
Tongued
washer
pin
hanger
Pad spring
Pad
To Next Page
