 Apply the silicone grease to the pin bush.
 Connect the pin bush to the portion of the caliper.
 Install the pad spring in the caliper.
 Install the caliper pin bolt and the slide pin in the
caliper.
 Install the brake pad and the hanger pin in the
caliper.
 Install the plug dust in the slide pin.
 Install the brake caliper to the front fork, and
connect the brake hose to the caliper, and install 2
sealing washers and the brake hose bolt.
Torque: 3.5kgf
··
m
 Install the slide pin cap.
 Fill the brake fluid, and bleed air.
Rear brake caliper removal
 Remove the brake oil bolt and the brake hose
from the brake caliper.
 Remove the EX. muffler. (4-9)
 Remove the brake caliper from the rear swing
arm and remove the pad spring, hanger pin and
brake pad.
Rear brake caliper installation
 Install the brake caliper to the rear swing arm,
and connect the brake hose to the caliper, and
install 2 sealing washers and the brake hose bolt.
Torque: 3.5kgf
··
m
 Install the EX. muffler. ( 49)
 Install the slide pin cap.
 Fill the brake fluid, and bleed air.

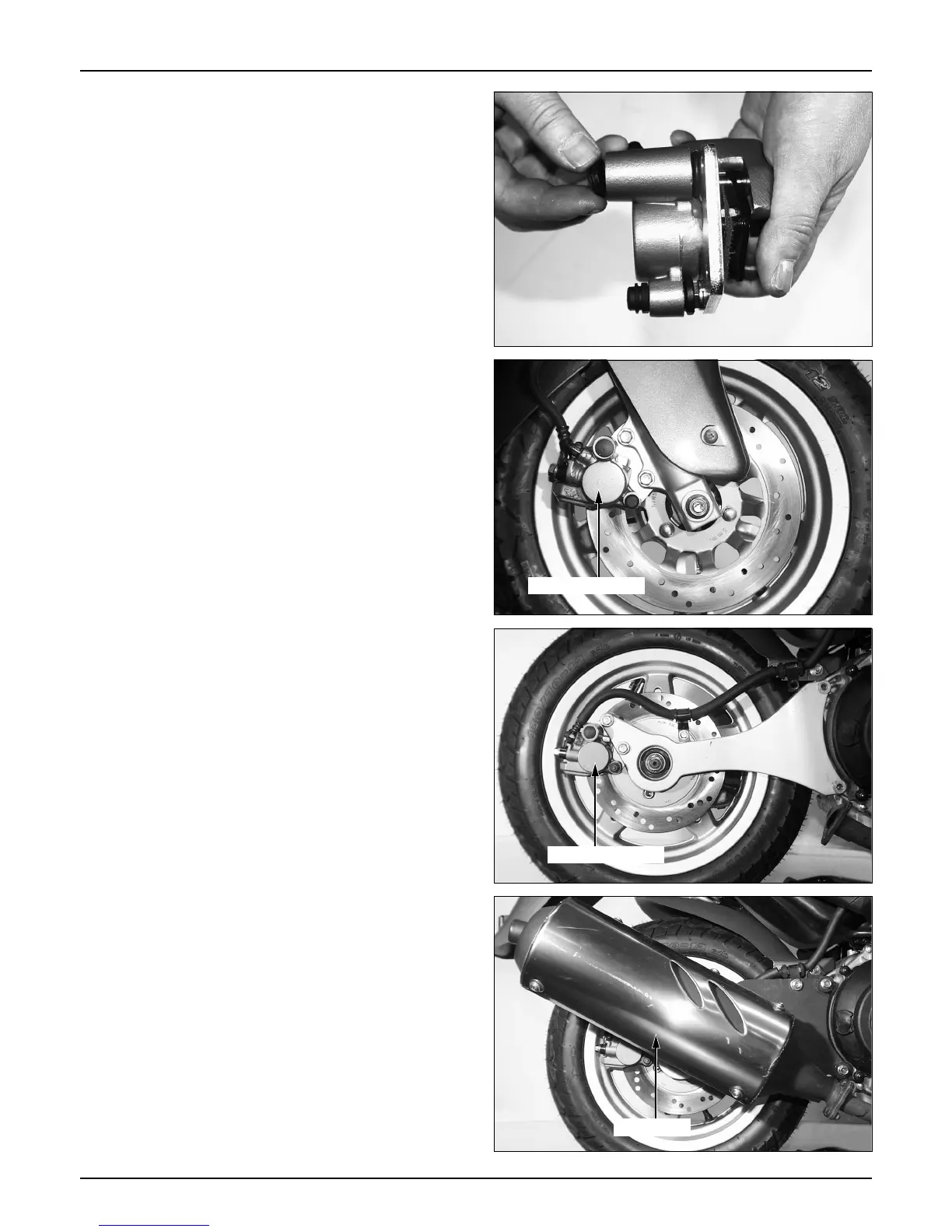

Front brake caliper
