Lubrication
2-3
Engine Oil Level Check
Erect the motorcycle on the main stand.
Warm up the engine to heat the engine oil to an
appropriate level.
Stop the engine, and check the oil level line on the
sight-glass installed on the L. crank case cover.
If the oil level is between the lower and higher
sight-glass oil level line, oil level is satisfactory. If
the oil level is below or near the lower level mark,
add the recommended engine oil.
Engine Oil Change
NOTE
Loosen the oil drain plug bolt and drain engine oil.
Operate the kick starter arm several times to
remove the remaining oil from the engine.
Tighten the oil drain plug bolt.
Torque value: 2.0-3.0kgf
m
CAUTION
It is extremely important to replace oil filter or
clean the oil filter screen at the first maintenance
interval (after 1,000Km).
Clean the oil filter screen every 4,000Km.
Clean the filter screen with fresh cleaning oil.
Check the hole cap O-ring for satisfactory condition.
Tighten the hole cap with specified tightening
torque.
Torque value: 1.5kgf m
Loosen the special screw, remove the plug
maintenance cover.
Fill the recommended oil after opening oil filter
cap of cylinder head cover.
Oil Capacity: 1.1
ℓℓ
(After disassembly)
0.75
ℓℓ
(After Oil change)
0.8
ℓℓ
(After Oil filter change)
0.9
ℓℓ
(
After Oil change with Oil in
the Oil hose removed
)
API service classification: SE, SF, SH grade
Start the engine and keep it idle for a few minutes.
Stop the engine and check the oil level. If the oil
level is low, add the recommended engine oil.
Check on oil leaks.
To completely and rapidly drain engine oil, warm up
engine and erect the motorcycle on its side stand.

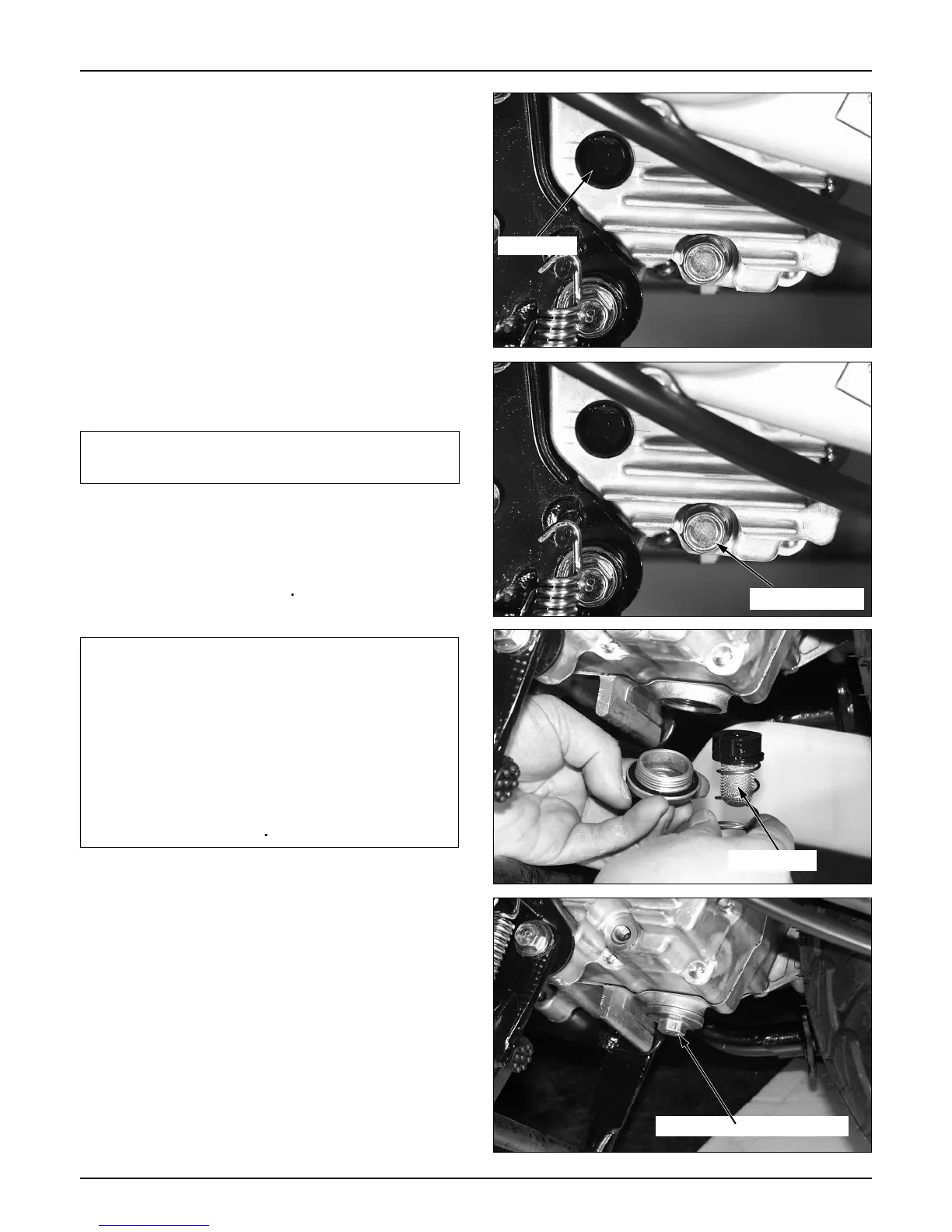

Tappet adjusting hole cap
Filter screen
Sight-glass
Drain plug bolt
