Lubrication
2-4

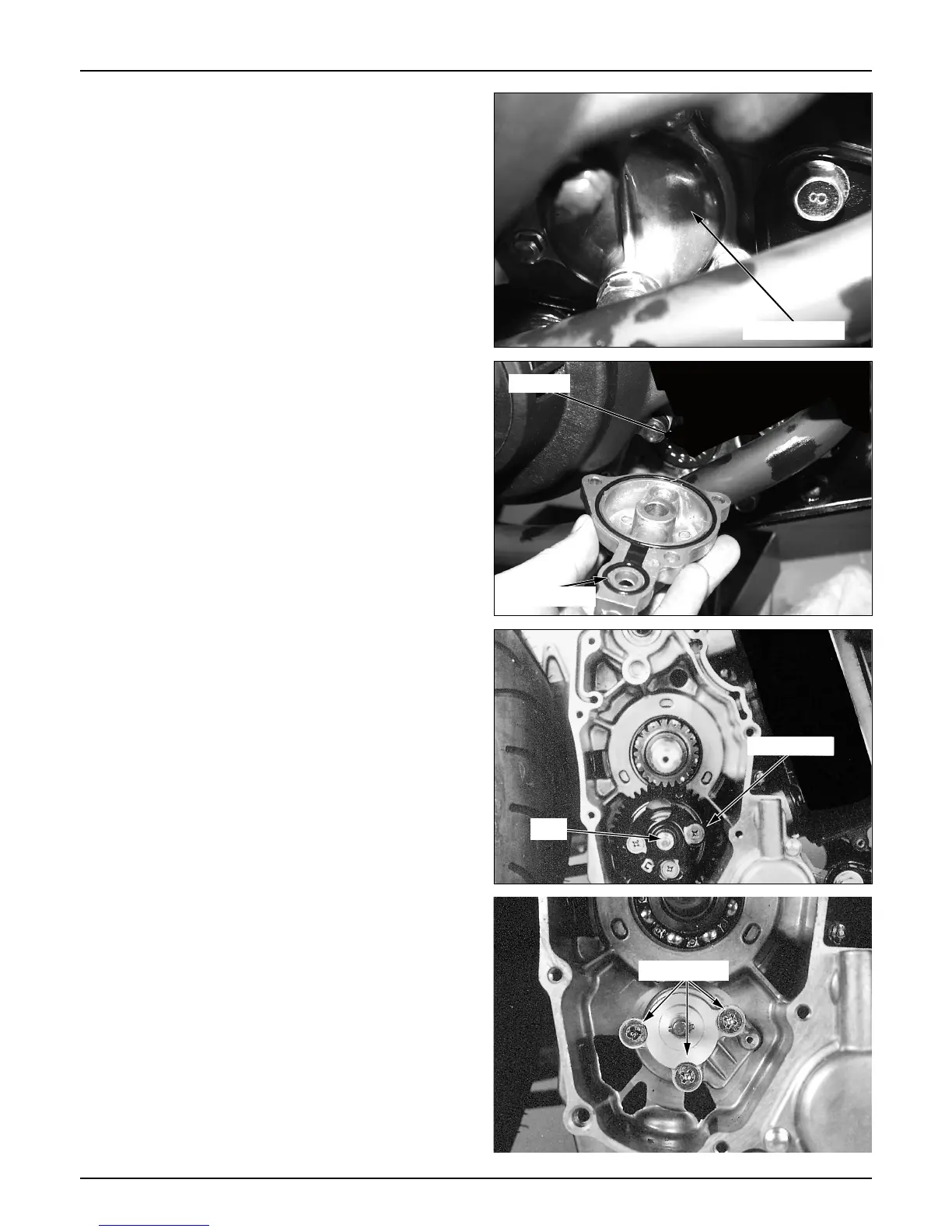

Oil Filter Element Change
Drain engine oil. ( 2-3)
Remove the oil filter cover bolts, filter cover, filter
element and spring.
Change the oil filter element with a new one.
Check the relief valve inside the oil filter cover for
satisfactory operation.
Check if the oil filter seal is in good condition.
Assemble the filter element spring and filter cover,
and tighten bolts.
Torque value: Oil filter cover 1.1kg-m(11N.m.8ft-lb)
Oil Pump
Remove the following parts:
- Luggage box ( 4-5)
- Rear cushion bolt( 6-2)
- RH. floor side cover( 4-5)
- Exhaust muffler( 4-9)
- Center cover ( 4-4)
- Shroud ( 8-2)
- Cooling fan( 8-2)
- R. Crank cover ( 8-4)
- A.C. generator ( 8-2)
- Starter driven gear and reduction gear ( 8-5)
- Starter clutch ( 8-6)
Loosen the oil pump drive gear setting nuts.
Remove the oil pump drive gear.
Remove the oil pump driven gear.
Oil filter cover
Element
Drive gear
Nut
Setting bolts
Oil filter seal
