Lubrication

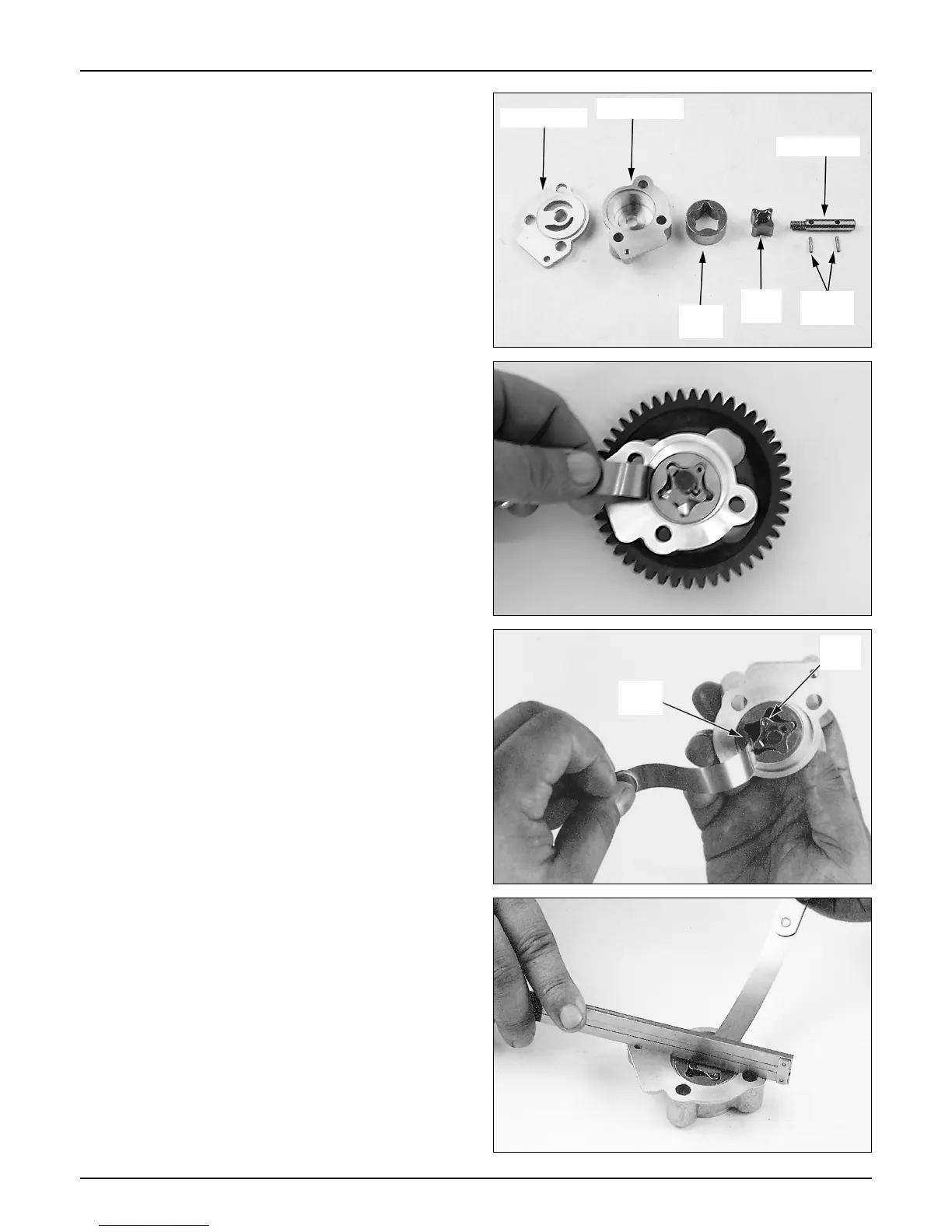

Remove the oil pump.
Clean the oil pump body, inner and outer rotors
with fresh cleaning oil.
Measure the rotor tip clearance.
Service limit: 0.18mm (0.007in)
Inspection
Assemble the inner and outer rotors to the oil
pump
Measure the pump body clearance.
Service limit: 0.23mm (0.009in)
Measure the pump side clearance.
Service limit: 0.12mm (0.005in)
2-5
Outer
rotor
Inner
rotor
Setting
pin
Pump shaft
Pump body
Pump plate
Outer
rotor
Inner
rotor
