Lubrication
2-6

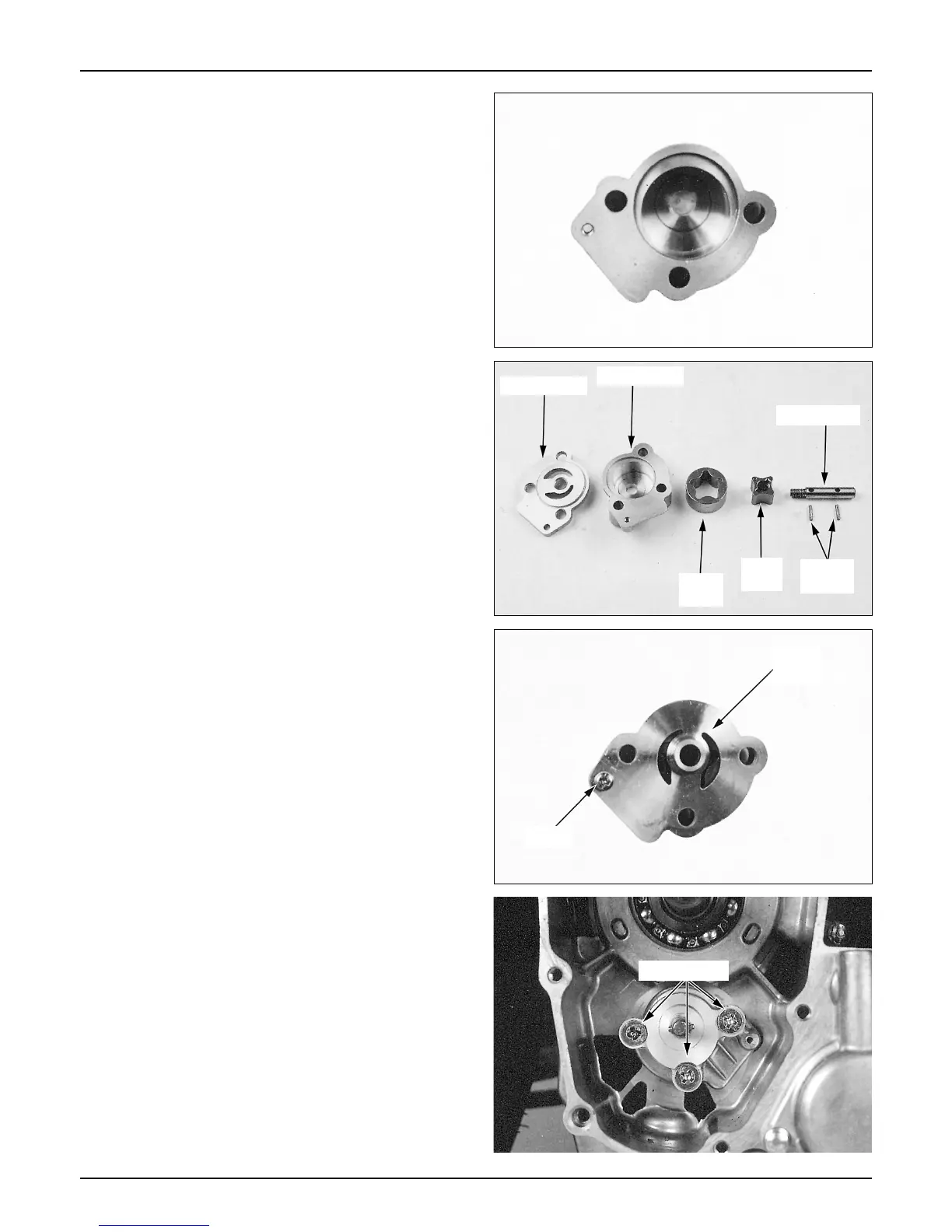

Removal/Installation
Remove the inner and outer rotors from the
pump body.
Clean all parts with fresh cleaning oil.
Attach the oil pump plate to the pump body.
Tighten screws.
Installation
Assemble the oil pump to the R. crank case cover.
Install the following parts.
- Oil pump drive gear and driven gear
- Starter clutch
- Starter driven gear and reduction gear
- A.C. generator
- R. crank case cover
- Shroud and cooling fan
- Center cover
- Body cover
- Luggage box
Install the inner and outer rotors.
Assemble the pump shaft with setting pins.
Screw
Pump
Plate
Outer
rotor
Inner
rotor
Setting
pin
Pump shaft
Pump body
Pump plate
Setting bolts
To Next Page
