Inspecitions/Adjustments
3-4

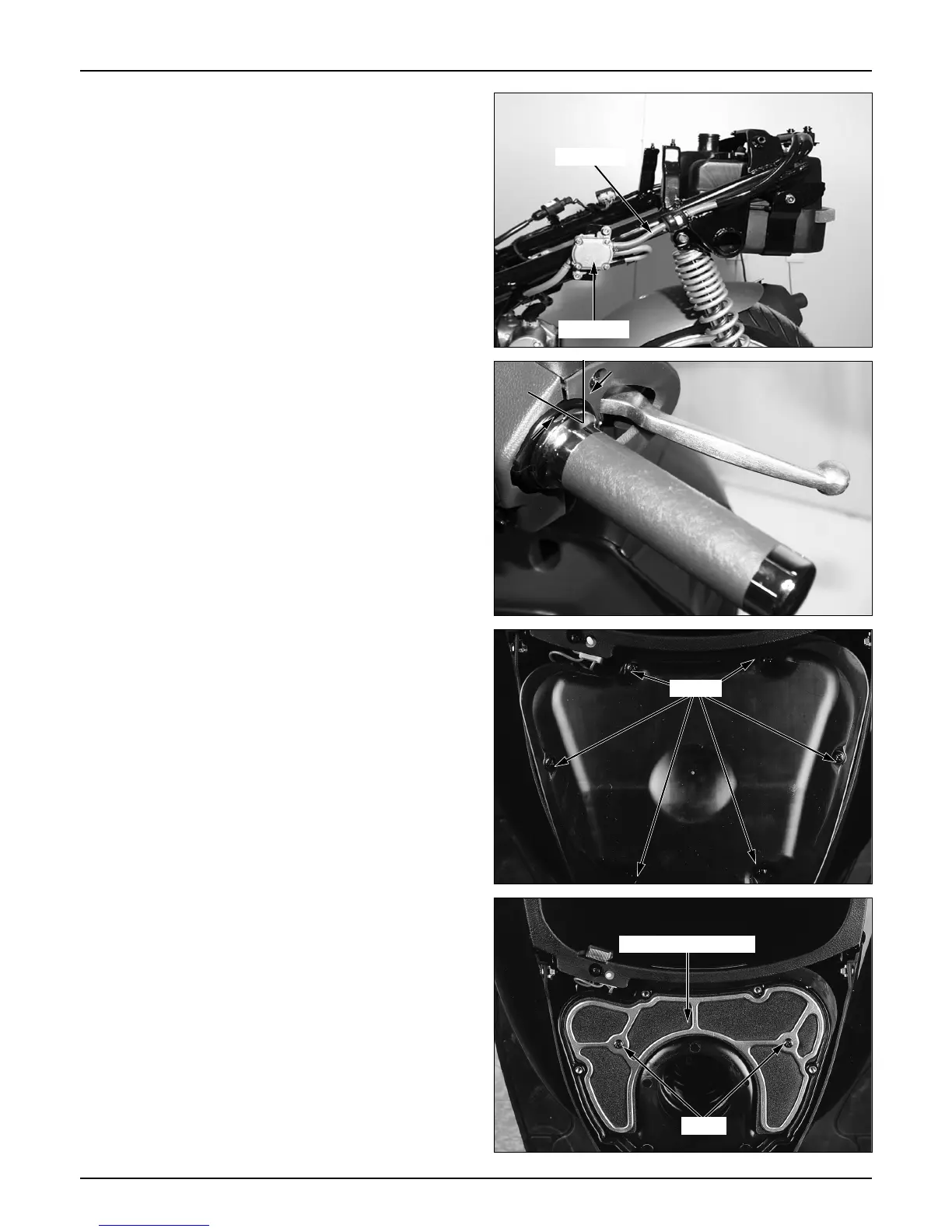

Fuel Line (Fuel Tube)
Remove the luggage box ( 4-5)
Check the fuel tube of the fuel pump connected
to the fuel tank and carburetor. If the fuel tube is
cracked, damaged or leaks, replace it.
Throttle Grip Operation
Check if the throttle grip operates smoothly in any
steering position.
If the throttle grip does not operate properly,
lubricate the throttle cable.
If the throttle grip does not operate properly,
check the throttle cable for aging, damage or
kinking.
Check the throttle grip free play.
Free play: 2~6mm(1/8~1/4in)
Air Cleaner
Unlock the system with main key, and open the
seat.
Loosen the 6 setting screw assembled to the air
cleaner case cover.
Loosen the 2 setting screw assembled to the air
cleaner element.
Remove the air cleaner element.
Fuel pump
Fuel tube
Screw
Screw
Air cleaner element
