DAELIM NS125DLX - A.C Generator

Generator/Starter Clutch
8-2

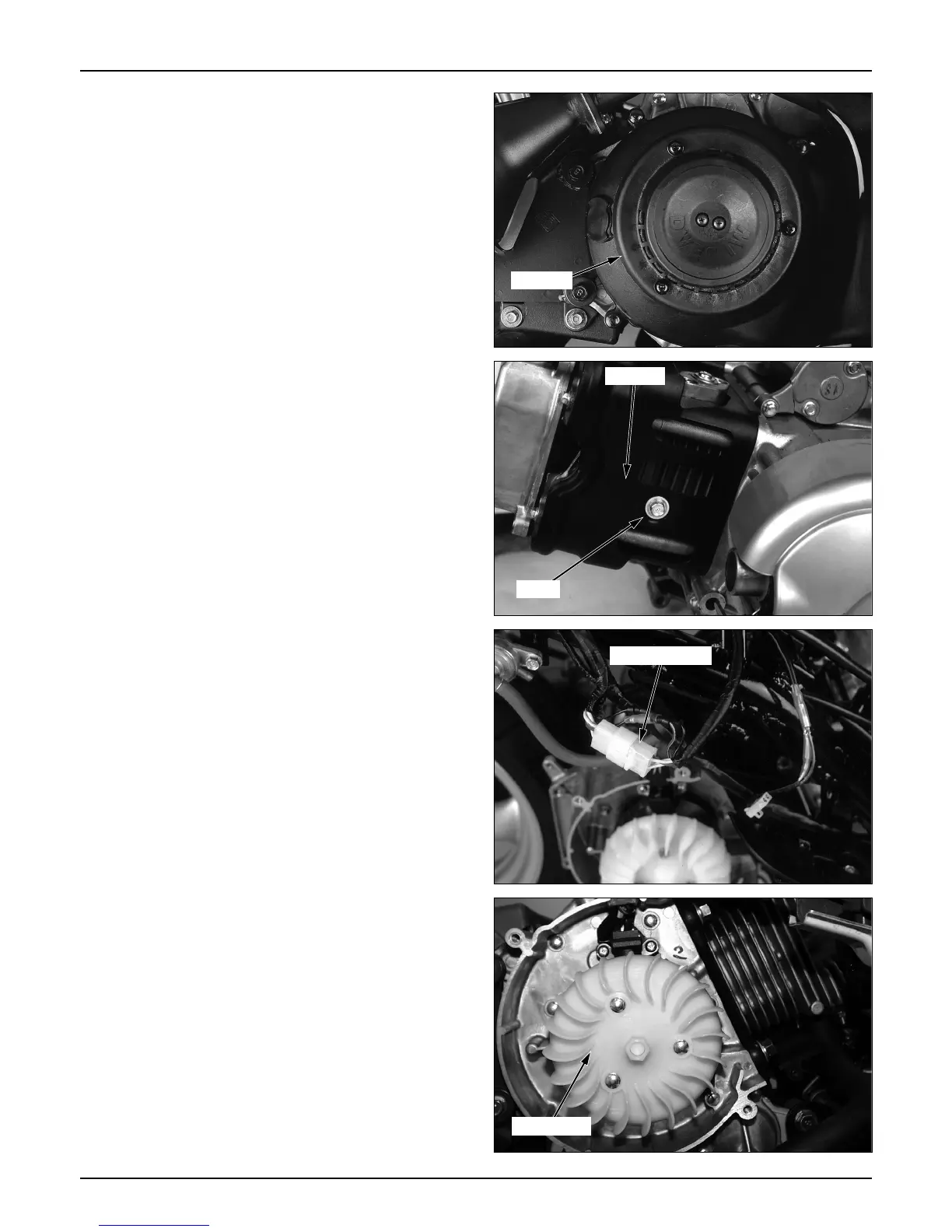

Shroud
Removal
 Remove the following parts.
- Luggage box ( 4-5)
- Body cover ( 4-6)
- Center cover ( 4-4)
 Loosen the 4 R. shroud setting bolts.
 Loosen the 3 shroud R/L setting bolts.
 Loosen the shroud L setting screw.
 Remove the shroud R/L.
 Install in the reverse order of removal.
A.C. Generator
Removal
 Remove the following parts.
- ( 4-5)
- ( 4-6)
- ( 4-4)
- R. shroud comp ( 7-2)
 Remove the A.C. generator wiring connection.
 Remove the 3 cooling fan bolts.
Screw
L. shroud
Generator wire
Cooling fan
R. shroud
