Generator/Starter Clutch
8-3

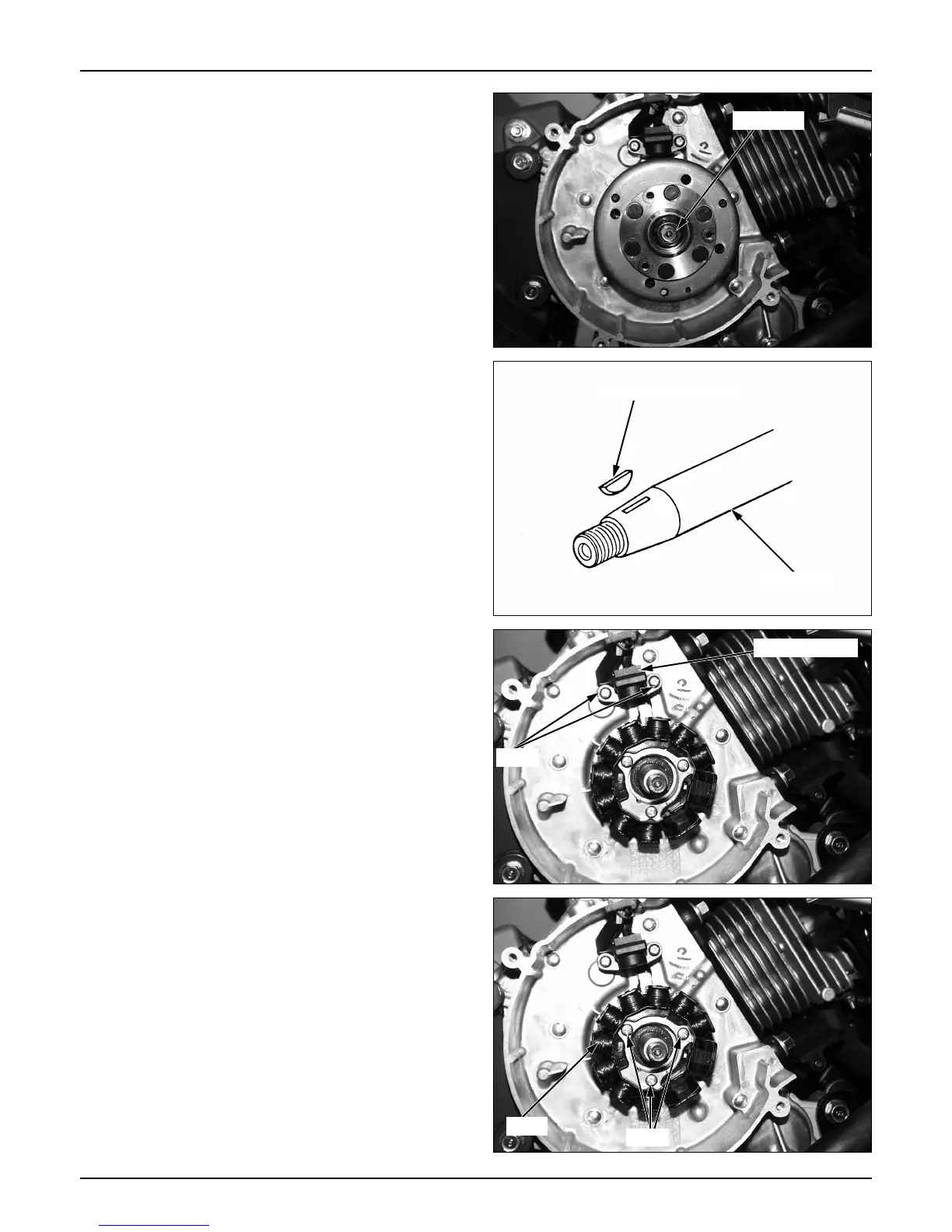

Remove the A.C generator flange nut.
Install the flywheel puller on the rotor, and
remove the flywheel
Tool: Fly wheel puller holder
Remove the woodruff key from the crankshaft.
Stator Removal/Installation
Loosen the pulse generator screw, and remove
the pulse generator.
Loosen the 3 stator setting screws to remove the
stator.
Install in the reverse order of removal.
Flange nut
Pulse generator
Crankshaft
Woodruff key
Screw
Screw
Stator
