3.3.3 Vacuum supply
Specification: 500mm Hg (min.)
Vacuum may be required for some work holders.
A factory supply or a separate pump may provide it.
3.3.4 Services connection

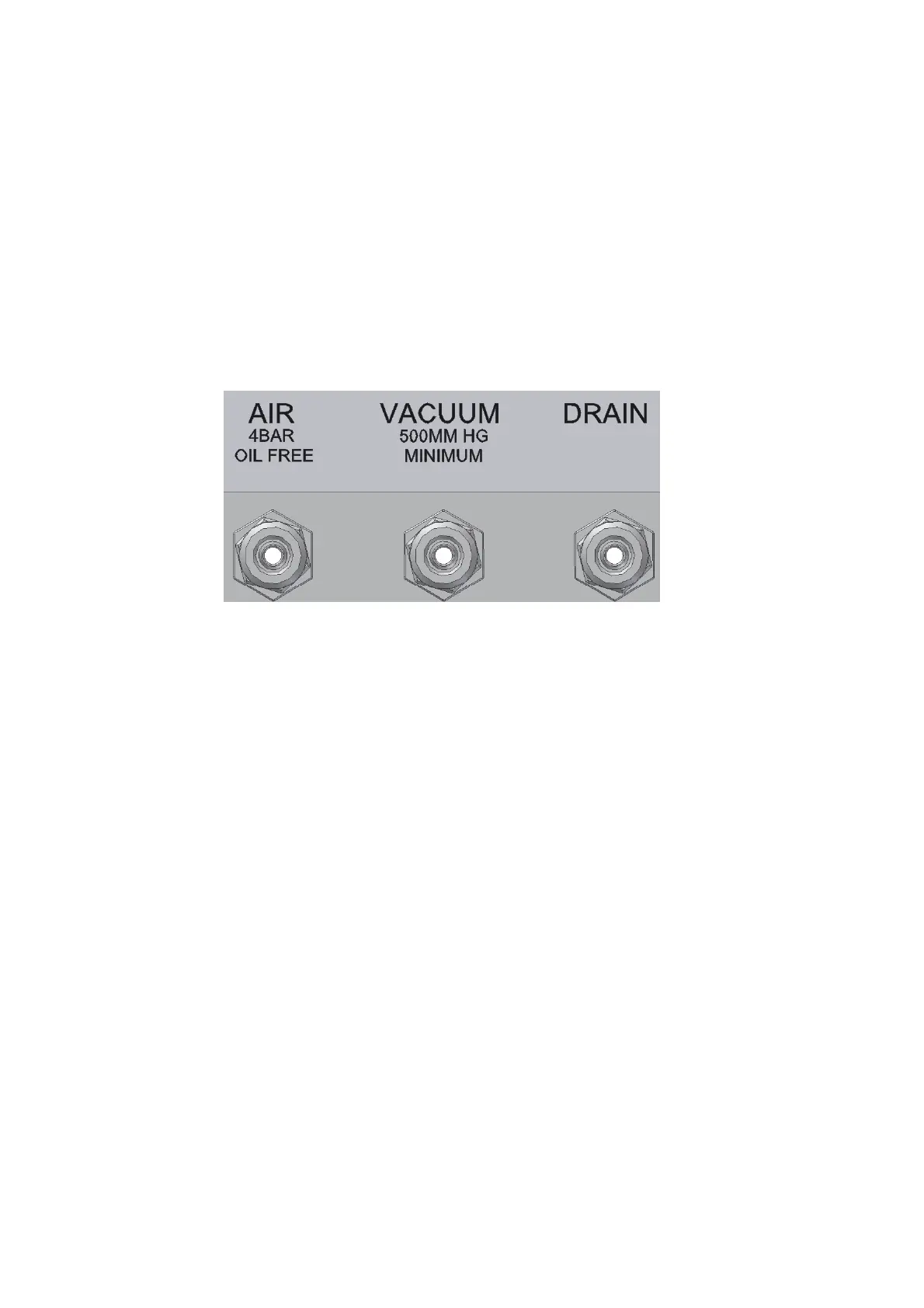

There are three service connections on the rear of the machine as shown below: -
Note: Any water in the airline is separated and will be discharged from the
drain automatically. A suitable receptacle must be provided
Found in the Right hand bottom corner of the rear of the pneumatic
chassis
