Dage 4000HS - Work Holder Stands Available for the High Speed XY Table

37
6.3.1 Work holder stands available For the High Speed XY Table
To ensure ease of operation the work holder stand should be orientated with the jaw tightening
screw located towards the rear of the machine. As indicated this stand is also used to hold the
calibration weight support (for CBP5KgHS load cell only).

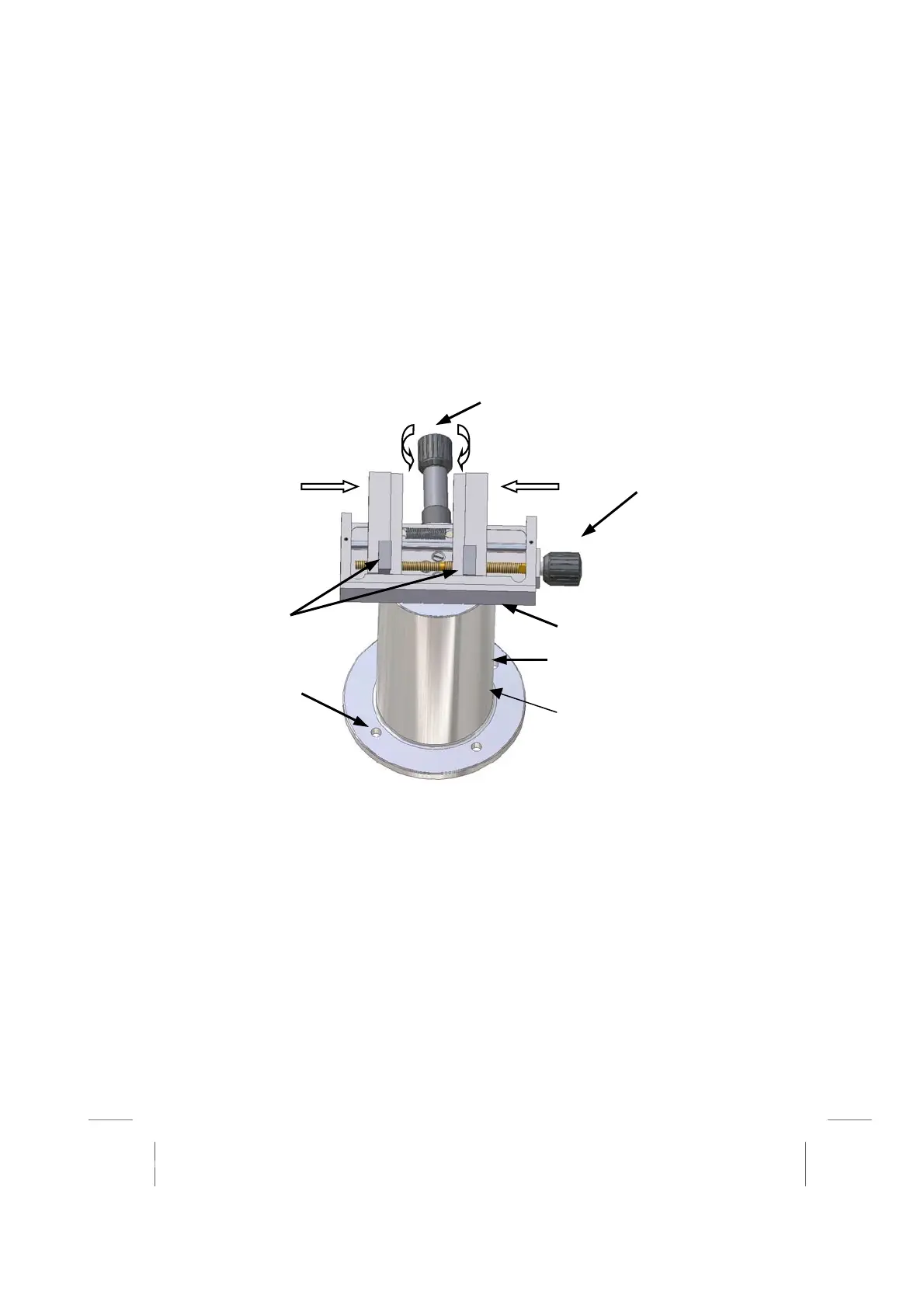

WORK HOLDER AND STAND FOR SHEAR
TESTS RATED UP TO
5
K
G.
Jaw Tightening Screw
Adapter Clamp Screw
Adapter Stand
Screw Fixing
Holes
Clamps
Front Edge (Highest Part of
the Work Holder.
Use this stand to hold
the weight support
