Test the action of the jaws manually using the button or key.
Note: This will not work if the guard doors are open.
7.2.2 Tool alignment

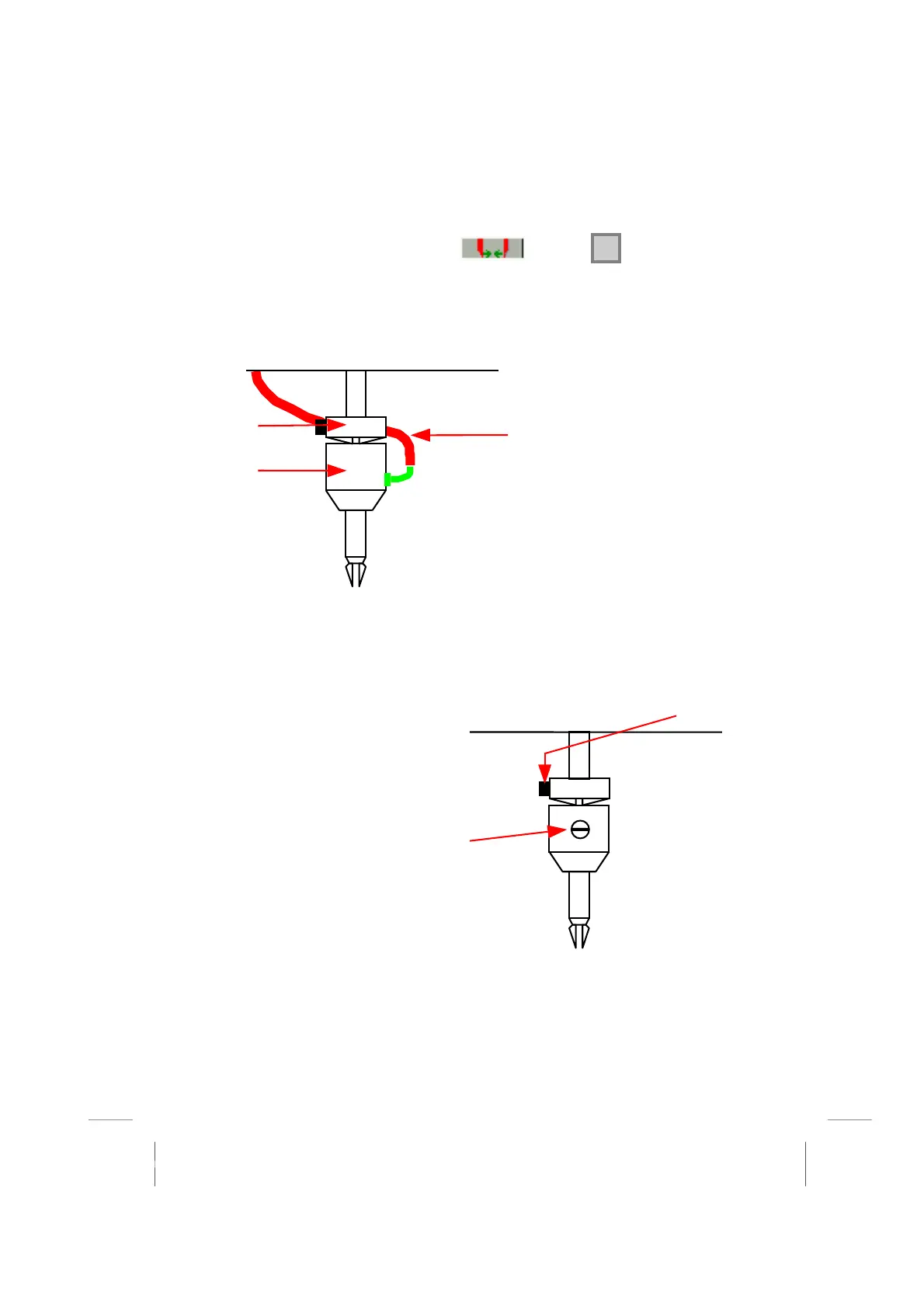

Align the air pipe with the tweezer jaws as shown below
Notes: The tool guard must be free to operate without hitting the air pipe. The
tweezers may not operate correctly if rotated more than one quarter of a turn in
either direction from this position.
7.2.3 Changing tweezer jaws
1) Set the tweezer opening width to maximum by releasing the adjustment screw.
Do not remove the screw
2) Carefully remove the access screw
and it's sealing ring (if fitted).
Air pipe
Rotate
Hold
