4.2 SETTING THE MACHINE FOR AN OPERATOR
Note: It is important that operator adjustments are made with the assistance of an experienced engineer.
If you are unfamiliar with the machine operation refer to section 5.
4.2.1 Setting the chair
Adjust the height of the chair to set the arm position as shown below.
Adjust the footrest and backrest to support the correct seating position as shown.
4.2.2 Setting the joysticks
The joysticks have been designed for left or right handed use.
If one configuration does not suit all operators extra joysticks may be needed.
It will be necessary to reconfigure the joystick axis to move (for example) the motorised table controls
from the left to the right joystick. See your engineer.
Note: The standard configuration is described in section 3.4.1.

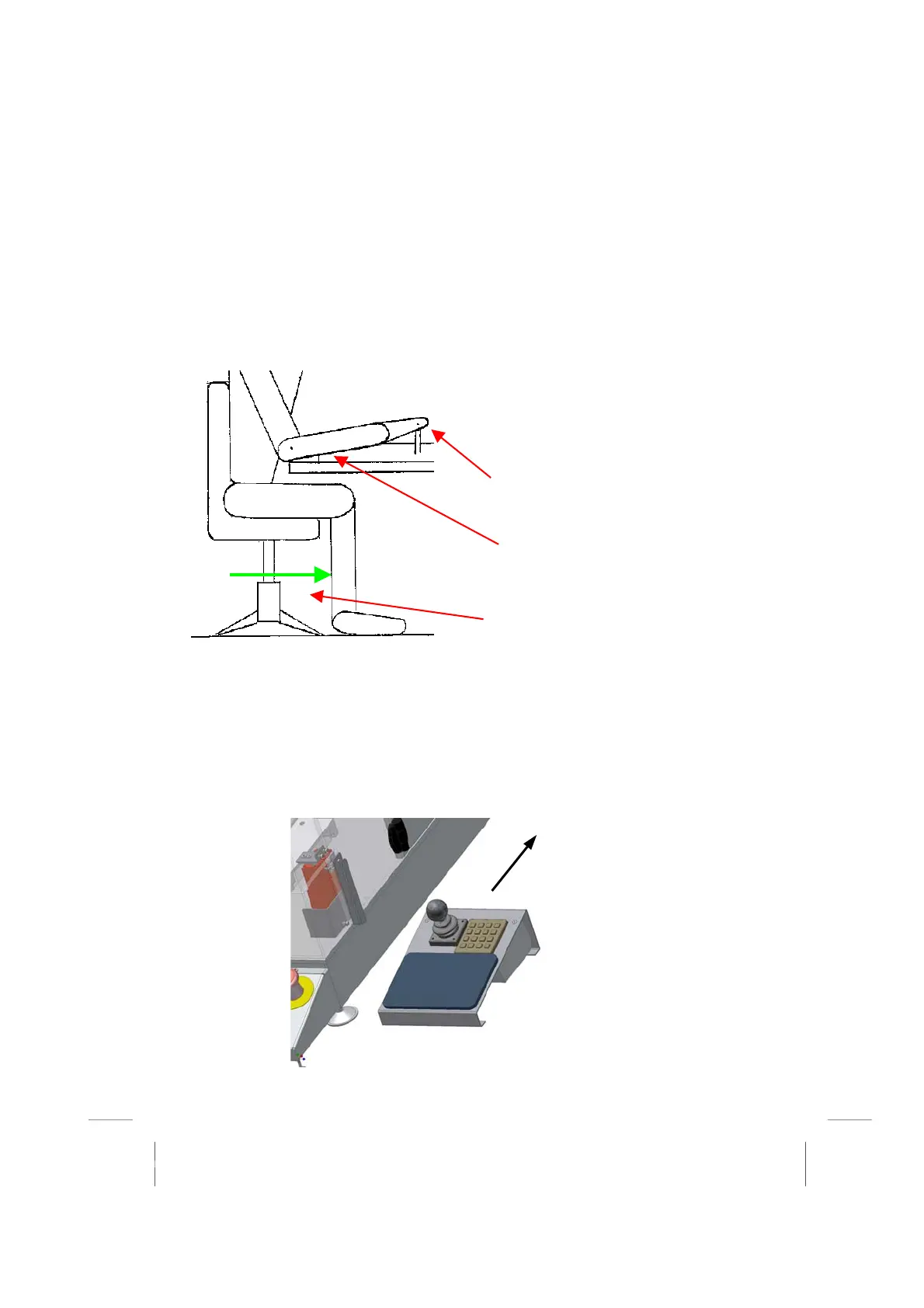

Hands in the normal
operating position
Lightly supported
forearm
Move chair in as close
as possible
Leads to the rear of
the machine.
