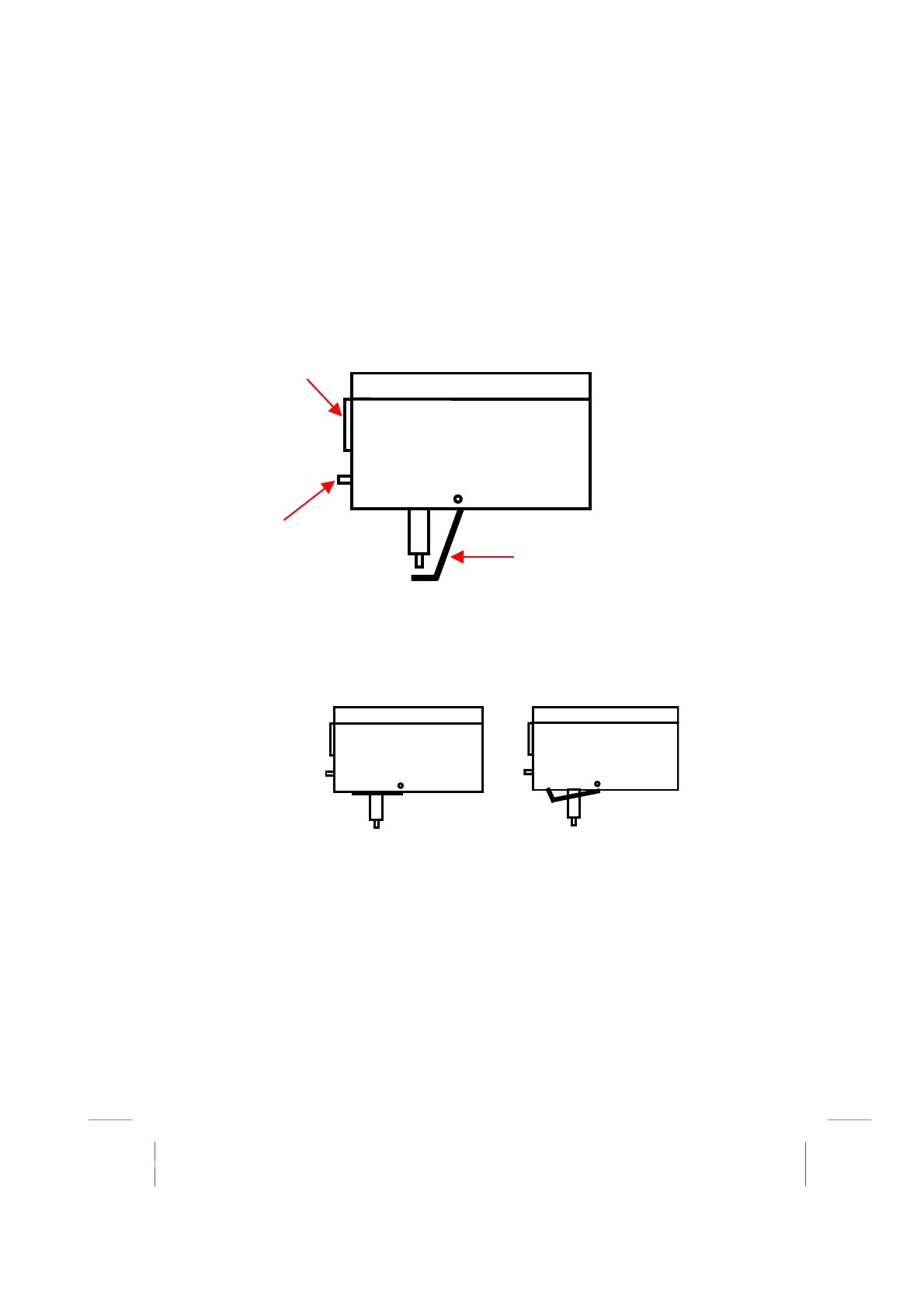

5.5.1 Cartridge layout
Cartridges have an electrical connector and optionally an air connection tube.
Note: The connectors and air tubes are delicate and must be kept clean.
5.5.2 Tool Guard
The tool guard will retract when fitting the cartridge and drop down on removal.
Note: The guard is not designed to resist excessive force and may itself be damaged by heavy
handling.
When retracted the guard should be firmly against the under side of the cartridge.
Note: If the guard hangs loose it has been damaged and should be serviced by a qualified Dage
representative.
The guard does not lift when storing the cartridge on the side of the machine.
Optional air
connector
Tool guard
Electrical
connector
