3.3 PNEUMATIC SERVICES
Note: At the time of press the machine only requires compressed air to perform high speed
testing.
3.3.1 Compressed air
Specification: 4bar (min.) dry, clean 10 l/min (Free air)
The bondtester uses compressed air to operate its shear and cold bump pull cartridges.
Compressed air is also used to operate the vertical lift table, which is used during pull tests.
Compressed nitrogen is a suitable alternative.
Note: The machine will not operate correctly if the supply is contaminated or wet.
3.3.2 Setting compressed air regulators

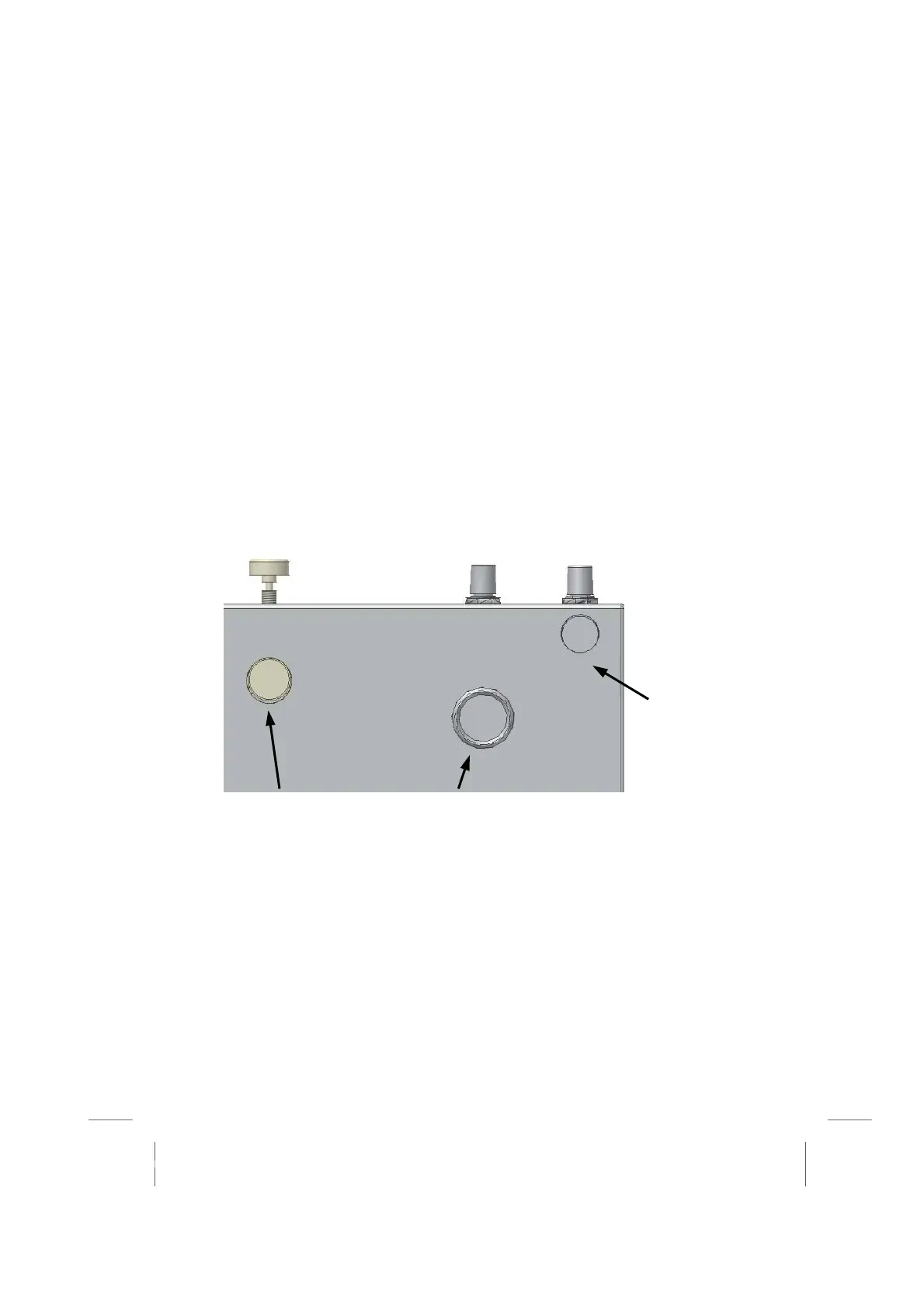

There are three regulators located on the top right of the machine, which should be set as
follows: -
High Speed
Bump Pull
Rising Table
Regulator
Secondary Regulator
Shear Load Cell Air
Bearing Pressure Set
To 0.19M
p
a
(
1.9Bar
)
Primary
Regulator
Tweezer Jaw
Clamping
Pressure Set To
0.4Mpa (4.0
Bar)
