To avoid potential collisions between the work holder and the Z stage it is very
important to ensure that the work holder and stand are orientated so that the
pneumatic air fitting is located towards the rear of the machine.

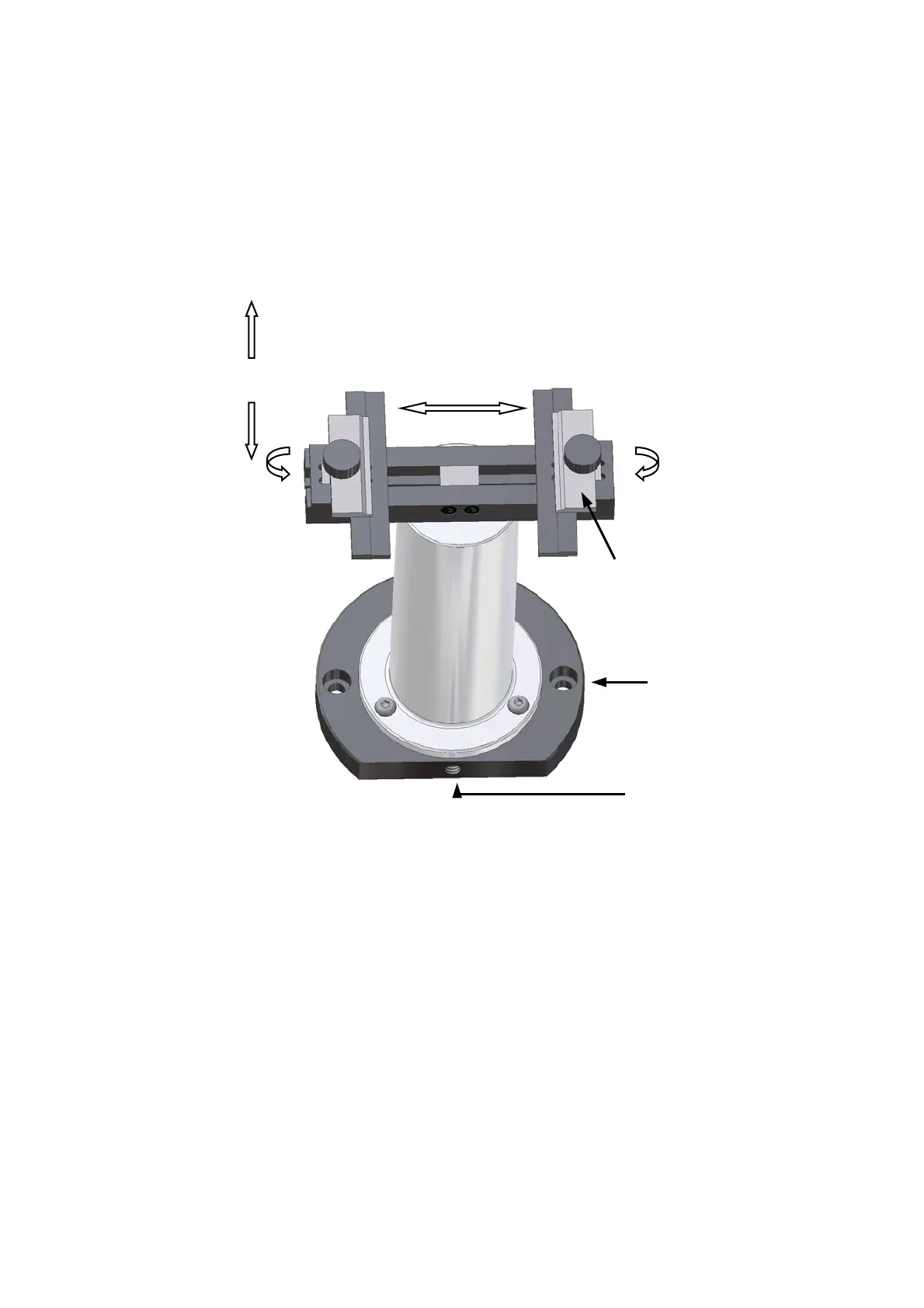

Work Holder and Stand For Pull Tests Rated Up To
5Kg.
Pneumatic air inlet.
Fixing Holes
Slide towards or
apart from each
other
Loosen and
tighten as
required
Up and down
motion of rising
table.
Clamps
