To perform a shear calibration the calibration jig is fitted using the same stand as the shear work
holder. As seen in the section describing this work holder the stand is also fitted to this plate.

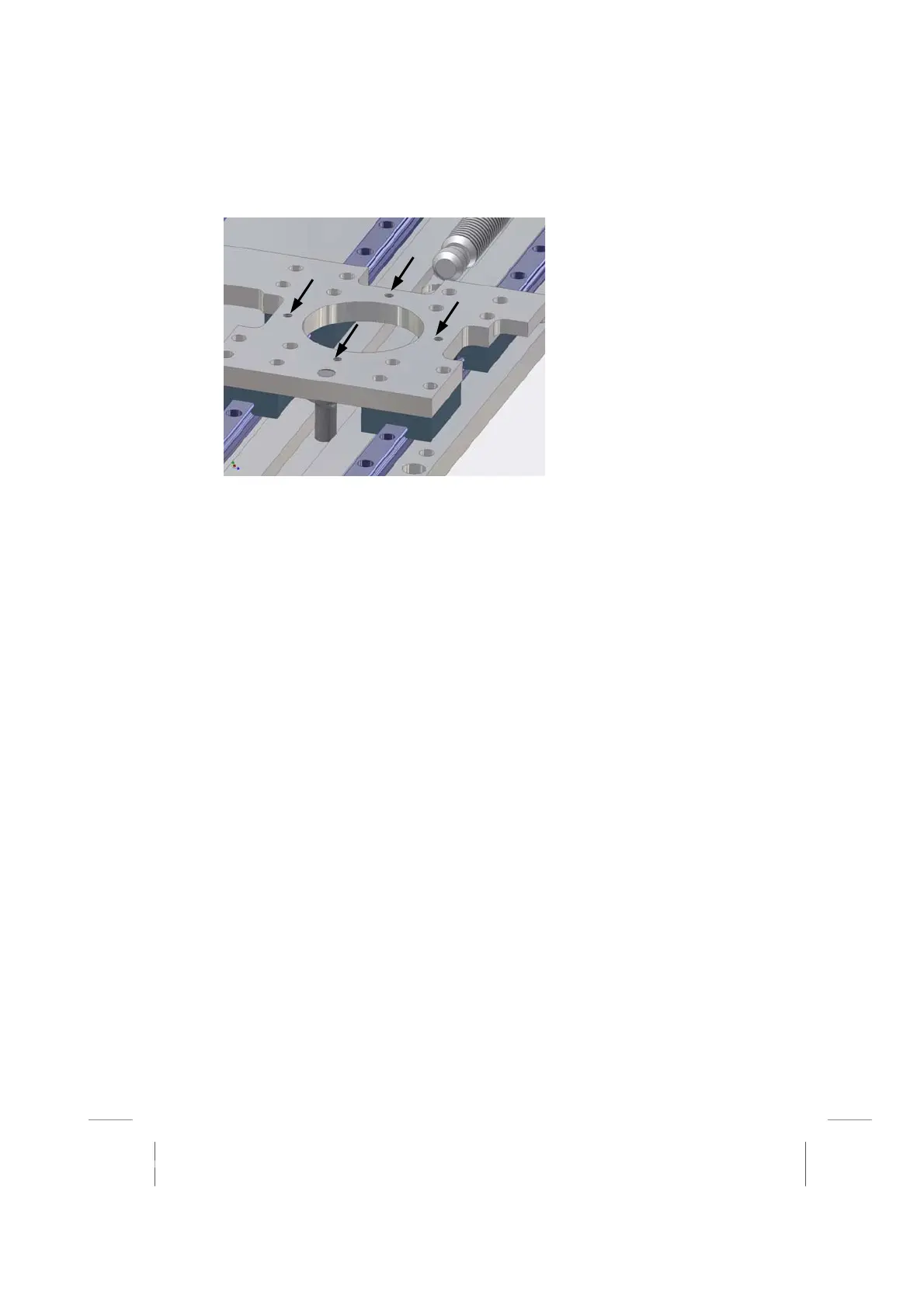

Both the shear work
holder and the pull work
holder fix to this plate
which is part of the XY
table assembly picking
up on the indicated
holes as required. The
p
ull stand will only pic
k
up on three of these
holes due to the
p
neumatic air inlet.
