Dage 4000HS - Page 41

41

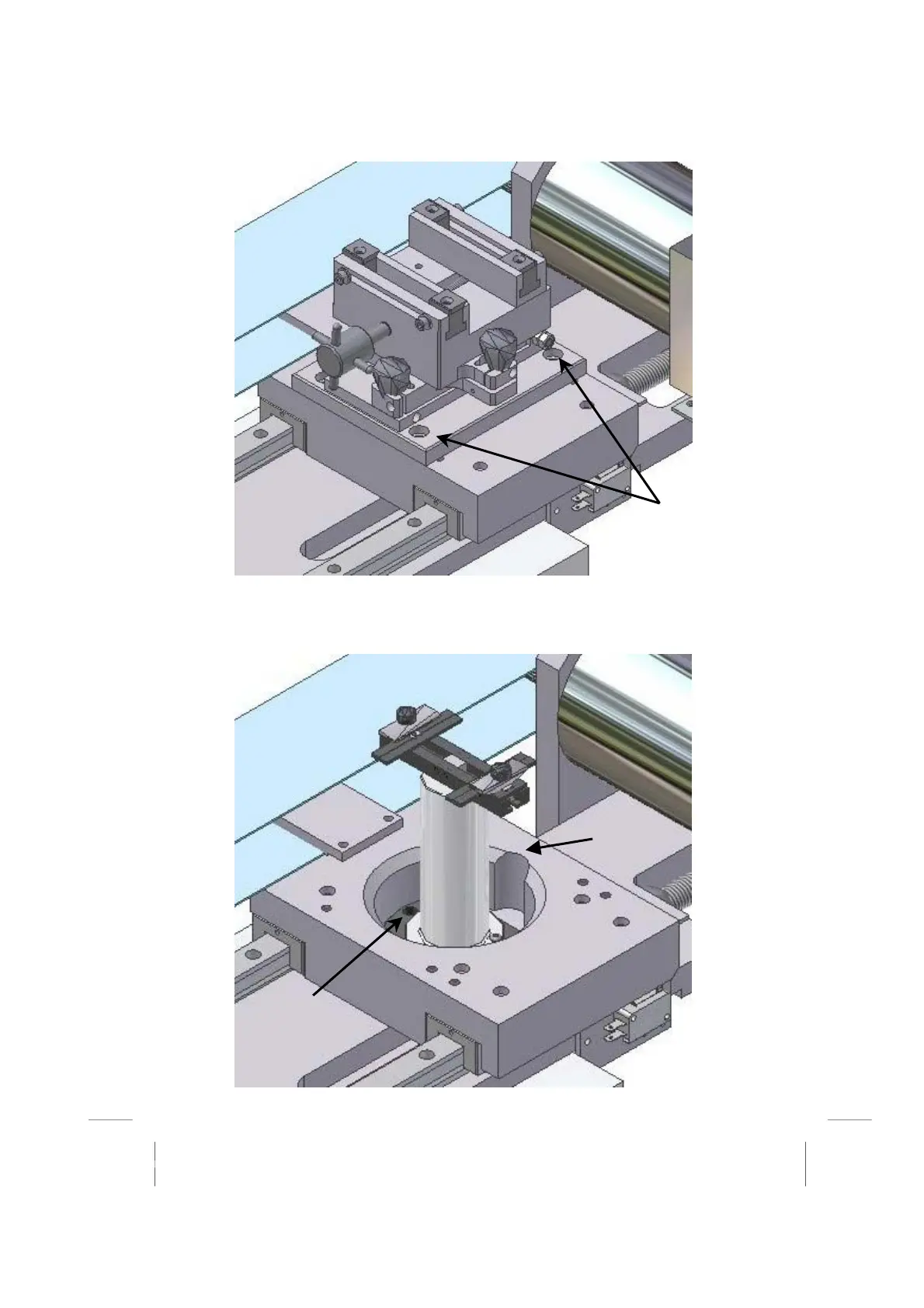

Fitting the 80Kg shear work holder to the zone shear table.
Four fixing holes
used to attach the
80Kg-work holder
to the carriage on
the y-axis of the XY
table (one in each
corner)
Fitting the 5Kg-pull work holder to the zone shear table.
Three fixing
holes
Air fitting
recess
High-speed pull
testing with a zone
shear table is the
same as using a
high-speed table
as described in
section 6.2.
