Disassembling Procedure
Disassembling
Procedure
Work Procedure Point
WARNING
Before disassembling work, be sure
to turn OFF all power supplies.

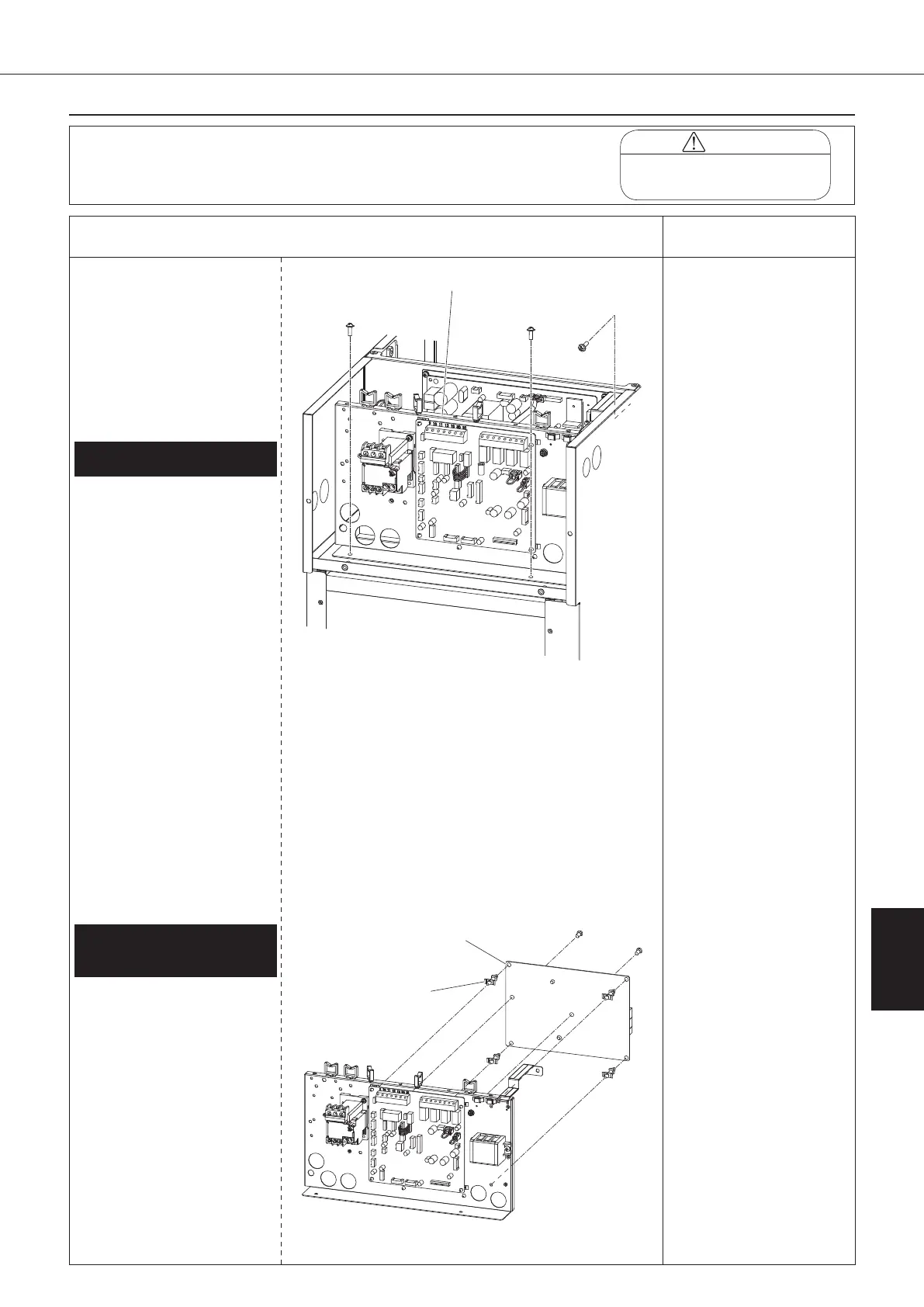

Procedure for Removing Noise
Filter Board (AKZ14A–43A-500)
1
Remove the switch box cover in
accordance with “Procedure for
Removing Outside Panel Block
(P.118)”.
1
Remove the control panel mounting
plate in accordance with “Procedure
for Removing Switch Box (P.121)”.
①
Unscrew the three screws fixing the
intermediate panel assembly.
②
Disconnect the wiring connected to the
intermediate panel assembly.
・
Primary side of power supply
terminal block (to be wired by
customer)
・
Secondary side of over current
relay
・
Control board (A1P)
See the last page “1. Removing
control board (A1P).”
・
Noise filter board (A3P)
1)
Main circuit power supply wire
(R1: F504, S1: F505, T1: F506)
2)
Inverter board signal wire 1
(X530)
3)
Inverter board signal wire 2
(X500)
1.
Removing intermediate panel
①
Disconnect all the wiring connected
to the noise filter board (A3P).
1)
Power supply wire (L1: HS501,
L2: HS502, L3: HS503)
2)
Control board signal wire
(X520)
3)
Over current relay (pump power
supply wire): (R2: F507, S2:
F508, T2: F509)
②
Remove the four locking card
spacers and two screws to take out
the noise filter board (A3P).
2.
Removing noise filter
board (A3P)
Intermediate panel assembly
(A3P)
Locking card
spacer
