(4) Temperature warning
■Outline of the function
• As a special function of the Oil Cooling Unit, you can set up the “Temperature range warning” function.
This function allows you to specify a desired temperature range within the Oil Cooling Unit operating range.
When the control temperature exceeds the preset range, the unit informs you of the “Temperature range
warning” condition.
• The operation at the time of temperature range warning activated can be selected by setting (Operation mode
after temperature range warning is activated (c) on page 70).
■Parameter setting
• For temperature range warning, up to 5 settings are available as shown in the table here below.
Also, input the set value for each parameter number to set the warning occurrence condition.
(Refer to “Parameter setting procedure” on page 64)
(1)
n010 n011
1E F1
(2)
n012 n013
2E F2
(3)
n014 n015
3E F3
(4)
n016 n017
4E F4
(5)
n018 n019
5E F5
Alarm
Display
Item
a,b,c d,e
Parameter
number
Set value
Parameter
number
Set value
Monitoring target and operation setting
Warning
Operation temperature setting
* The “monitoring target and operation” set value is composed of “monitoring target (a)”, “comparison target (b)”,
and “operation at time of warning occurrence (c)”.
* The “operation temperature” set value is composed of “warning temperature (d)” and “differential value (e)”.

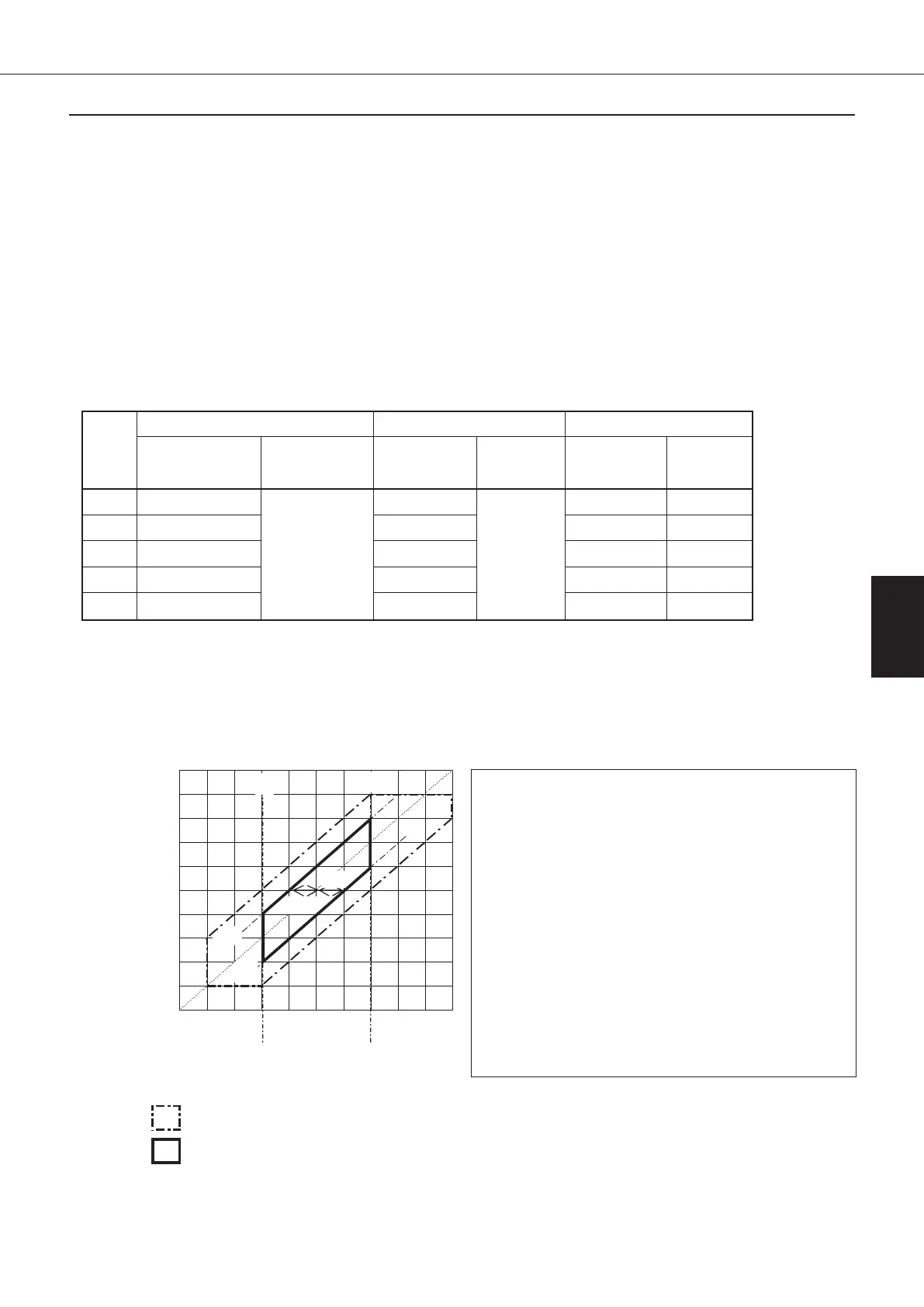

Example of temperature range warning
Outlet oil temperature [Th-2] or Inlet oil temperature [Th-4]
Room temperature
[Th-3]
or
Machine temperature
[Th-1]
: Oil Cooling Unit operating range
: Temperature range warning setting
5 10
15
20 25 30
35
40 45 50
5
10
15
20
25
30
35
40
45
50
(°C)
(°C)
5°C
(1)
5°C
(2)
(3)
(4)
(1) When the outlet oil temperature [Th-2] (or inlet oil
temperature [Th-4]) is 15°C or lower, the compressor
stops. (Warning)
(2) When the outlet oil temperature [Th-2] (or inlet oil
temperature [Th-4]) is 35°C or higher, the compressor
stops (F1 to F5 alarm), and terminal [66]-[67] output
turns ON or OFF.
(3) When the outlet oil temperature [Th-2] (or inlet oil
temperature [Th-4]) is at least 5°C lower than the
room temperature [Th-3] (or machine temperature
[Th-1]), terminal [66]-[67] output turns ON or OFF.
(4) When the outlet oil temperature [Th-2] (or inlet oil
temperature [Th-4]) is at least 5°C higher than the
room temperature [Th-3] (or machine temperature
[Th-1]), terminal [66]-[67] output turns ON or OFF.
00_PB00540A_M10.indb 69 2023/08/09 12:59:03
