2-1. Machine Body Thermistor/Returned Oil Thermistor (Optional)
①Symbol and intended use by type
Mounting this optional part to the oil piping of the main machine makes it possible to detect and control the temperature.
Procedure for Mounting Optional Parts
２
②Mounting procedure
Type
Name
Lead wire
length
L (m)
5m
10m
5m
10m
5m
10m
ＡＫＺ-OP-K5
ＡＫＺ-OP-Y10
ＡＫＺ-OP-Y5
ＡＫＺ-OP-A10
ＡＫＺ-OP-A5
ＡＫＺ-OP-K10
ＡＫＺ-OP-K15
15m
Intended use
(To be mounted by customer)
Machine body control
(To be recessed in the
main machine unit)
Machine body control
(To be affixed to the
surface of the main
machine unit)
Returned oil temperature
control
(To be mounted to the
oil piping of the main
machine)

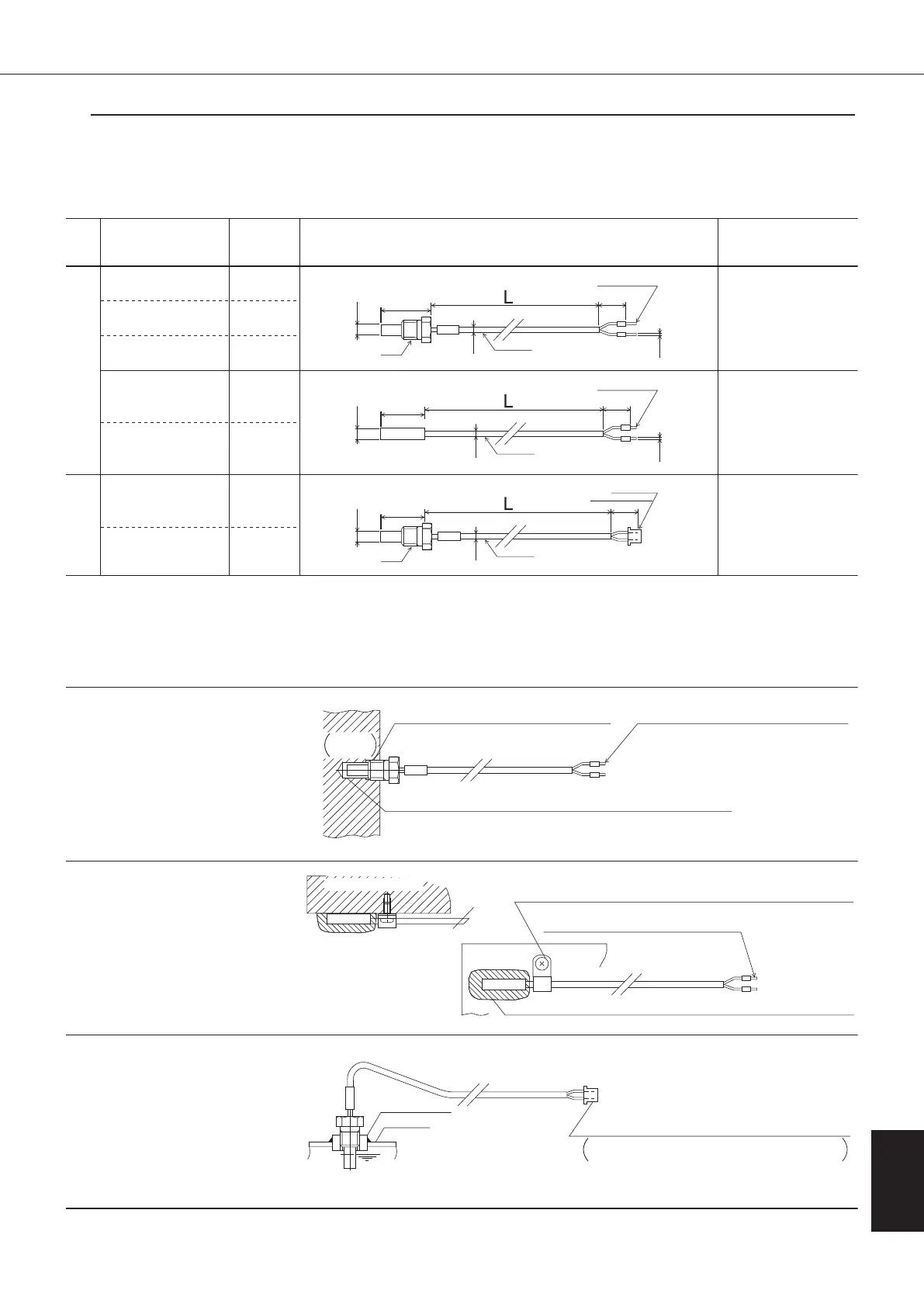

Thermistor characteristics: Resistance
...
R25 (Resistance at 25℃) ＝20kΩ Tolerance: ±3%
Shape
27.5
80
(5)
(4.5)
1.1
R1/8
Lead Wire
Insertion terminal
(4.5)
Lead Wire
25
80
8
Insertion terminal
R1/8
(4.5)
Lead Wire
27.5
80
SXH-001T-0.6
(5)
XHP-3 (Blue)
Machine body thermistor
Returned oil
thermistor (optional)
1.1
Rc 1/8 screw seat
Oil piping
Bring this into absolute contact with the main machine unit and then cover it with putty.
Connect this to the connector CN11 on the
Oil Cooling Unit control board.
Replace the oil outlet thermistor and then operate while
in outlet oil temperature control mode No. 1, 5, or 6.
Hose clamp and mounting screws are to be arranged by the customer.
Connect to Terminal Nos. 30 and 32 of the
terminal block X2M on the Oil Cooling Unit.
(Main machine unit)
Rc 1/8
(To be machined on main machine side)
Prepared hole: φ8 x 20mm or more in depth
Contain silicon grease in hollow section
Recommended product: Manufactured by Shin-Etsu Chemical Co., Ltd.
Radiation-use grease: Product No. KS609
Connect to Terminal Nos. 30 and 32 of the
terminal block X2M on the Oil Cooling Unit.
Main
machine unit
For AKZ-OP-K
For AKZ-OP-Y
For AKZ-OP-A
