Daikin ECORICH EHU2504 - PQ Representative Characteristic Diagrams


17
PIM00504

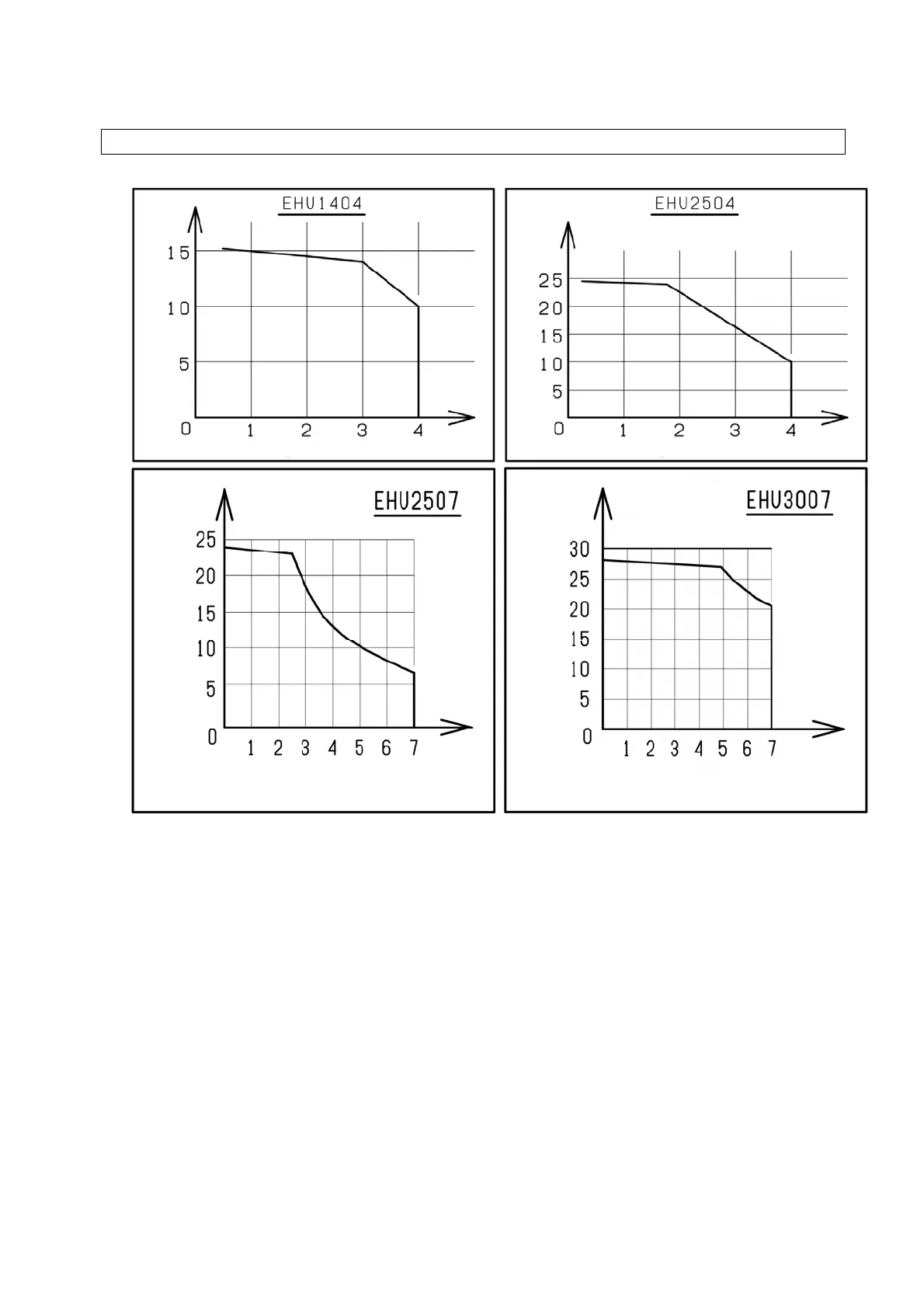

3.3  PQ Representative Characteristic Diagrams











*1 The above are the representative characteristics with oil type VG32 and a temperature of 40°C.
*2 The above PQ characteristics diagrams show the operating range in terms of actual flow rates.
*3 Restrict continuous discharge flow rate at the maximum pressure to 5 L/min or less.
Q discharge rate (L/min)
Q flow rate (L/min)
Q discharge rate (L/min)
Q flow rate (L/min)
P pressure (MPa) P pressure (MPa)
P pressure (MPa) P pressure (MPa)
