9.4 Connection of the Main Power Supply
1) Prepare the power supply cable, crimp terminals (ring-type crimp terminals with insulating cladding),
and cable clamps. Crimp a ring-type crimp terminal with insulating cladding onto the end of the cable
using a dedicated tool.
<<Recommended Items>>
Models
Cable
Specifications
Cable
Size
Recommended Cable
Recommended
Crimp
Terminal
Recommended Cable
Clamp
EHU1404
EHU2504
EHU2507
EHU3007
CE
1.5
mm
2
or
larger
CE362 1.5 mm
2
× 4
conductors
(KURAMO ELECTRIC)
RBV2-4
OA-W1611
(OHM ELECTRIC)
Applicable cable outer
diameter: φ9 to φ11
VCT
2 mm
2
or
larger
VCT362 2 mm
2
× 4
conductors
(KURAMO ELECTRIC)
OA-W1613
(OHM ELECTRIC)
Applicable cable outer
diameter: φ11 to φ13
2) Use a ground cable the same size as the power cable or larger.

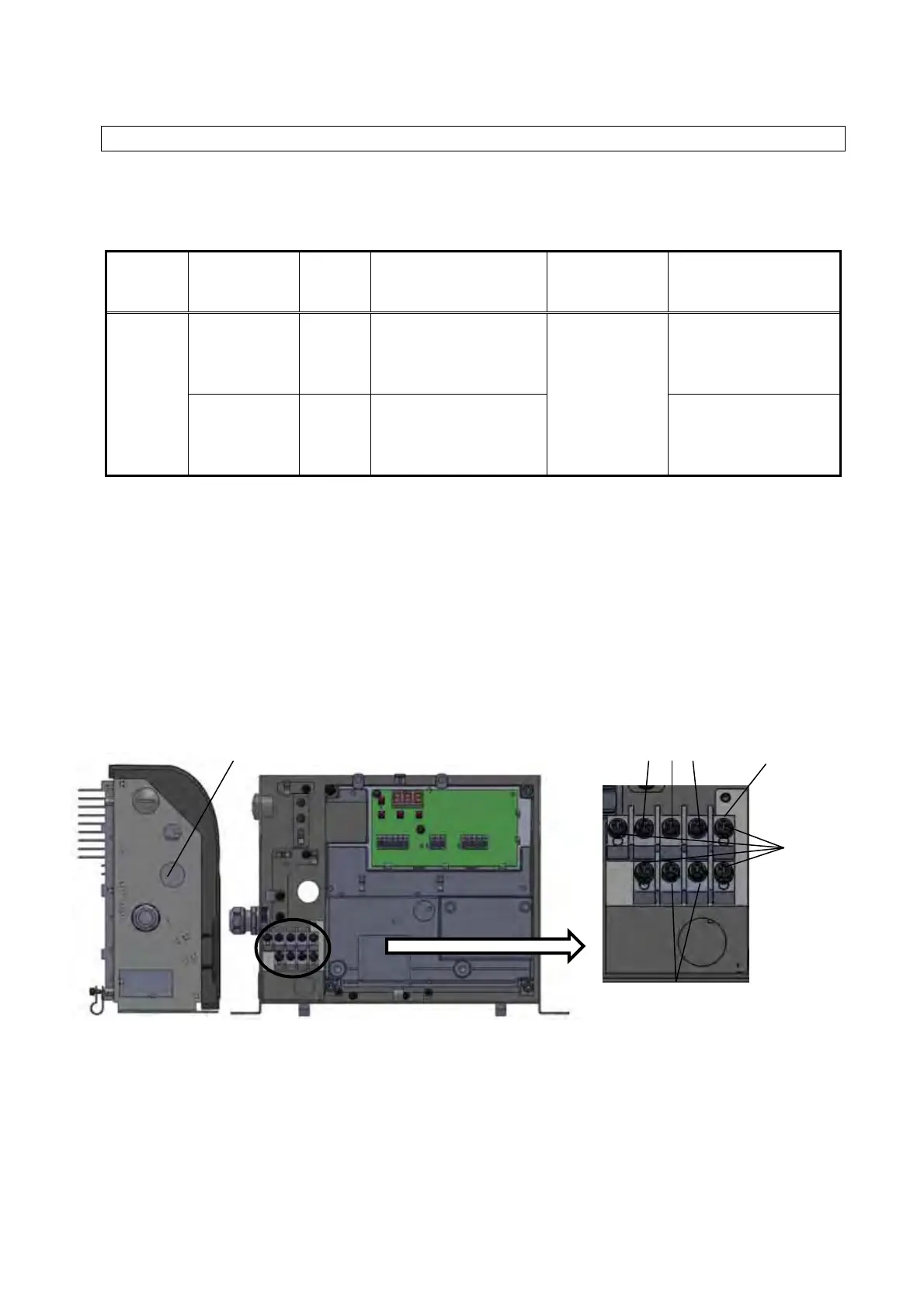

3) Pass the cables through the controller’s wiring port to accomplish the wiring work. At the wiring port,
use a cable clamp appropriate to ensure the port satisfies protection class IP54 or better.
4) Connect the power cable to the terminal block. The screws for connecting the power supply ground
are different from those for the power supply cable connection terminals, so take care not to confuse
them. The recommended tightening torque is 1.0 N⋅m.
For connecting the
power supply cable,
from left: L1, L2, L3
Power supply cable port,
φ23 hole
Ground connection
Control power supply connection
(effective when option selected)
Terminal block
securing screws
∗ Do not use these
for power supply
connection.
