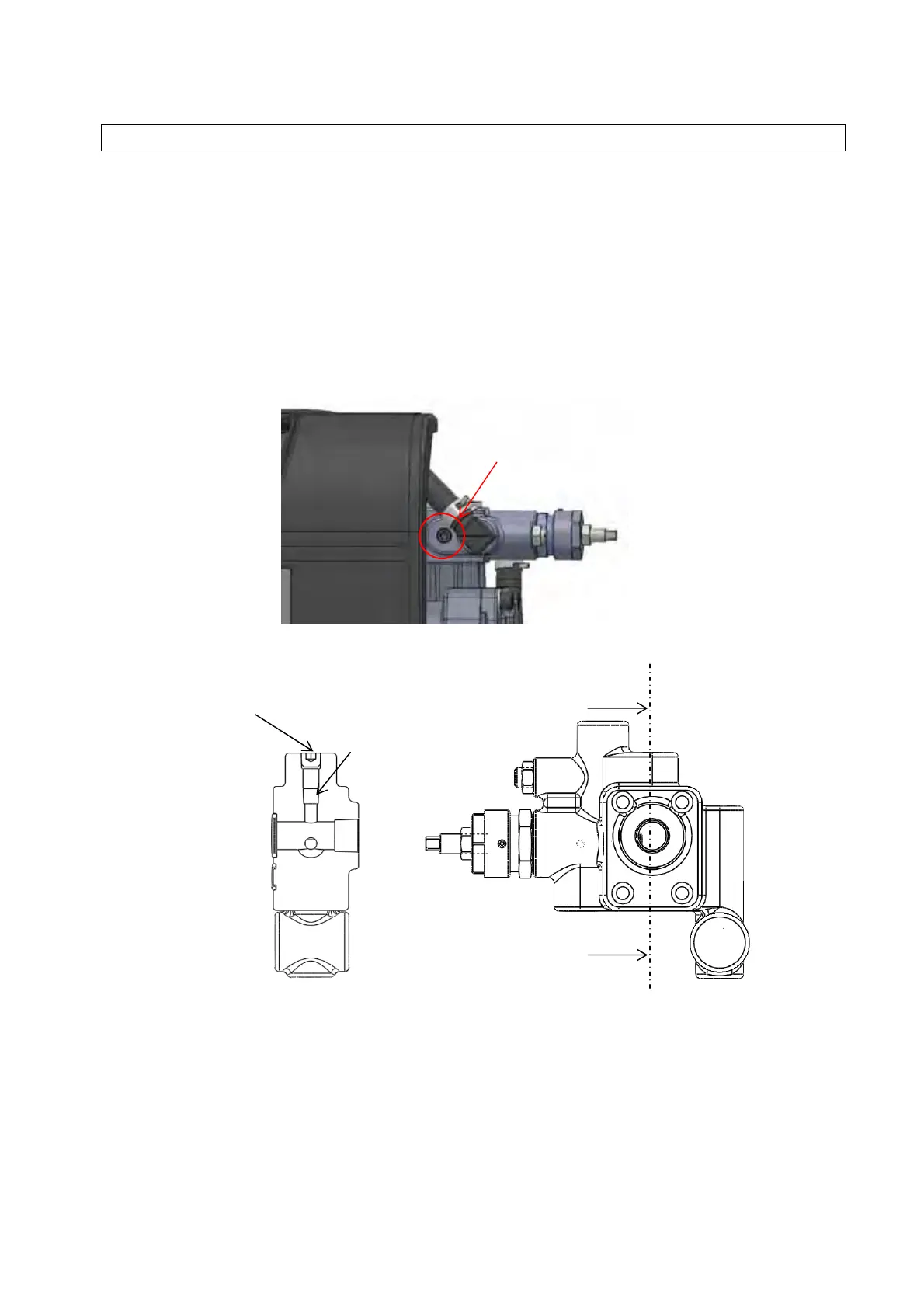

13.9 Fixed Throttle (φ0.8) Mounting Instructions
When using the unit with a set pressure of 6 MPa or higher, if the pressure becomes unstable due to the
effects of contaminants, etc., mount the fixed throttle (φ0.8) provided as an accessory. Check that there
is no residual pressure before mounting it.
1) Remove the hexagon socket head T plug (Rc 1/4).
2) Mount the fixed throttle (NPTF1/16 × φ0.8).
3) Wrap sealing tape around the hexagon socket head T plug (Rc 1/4) and fit it as it was.

A
A
Section A - A
Fixed throttle (
φ
0.8)
NPTF1/16
NPTF1/16
Hexagon socket head
tapered plug Rc 1/4
Hexagon socket head
tapered plug Rc 1/4
