Daikin FTXC71BV1B Installation Manual

1-12

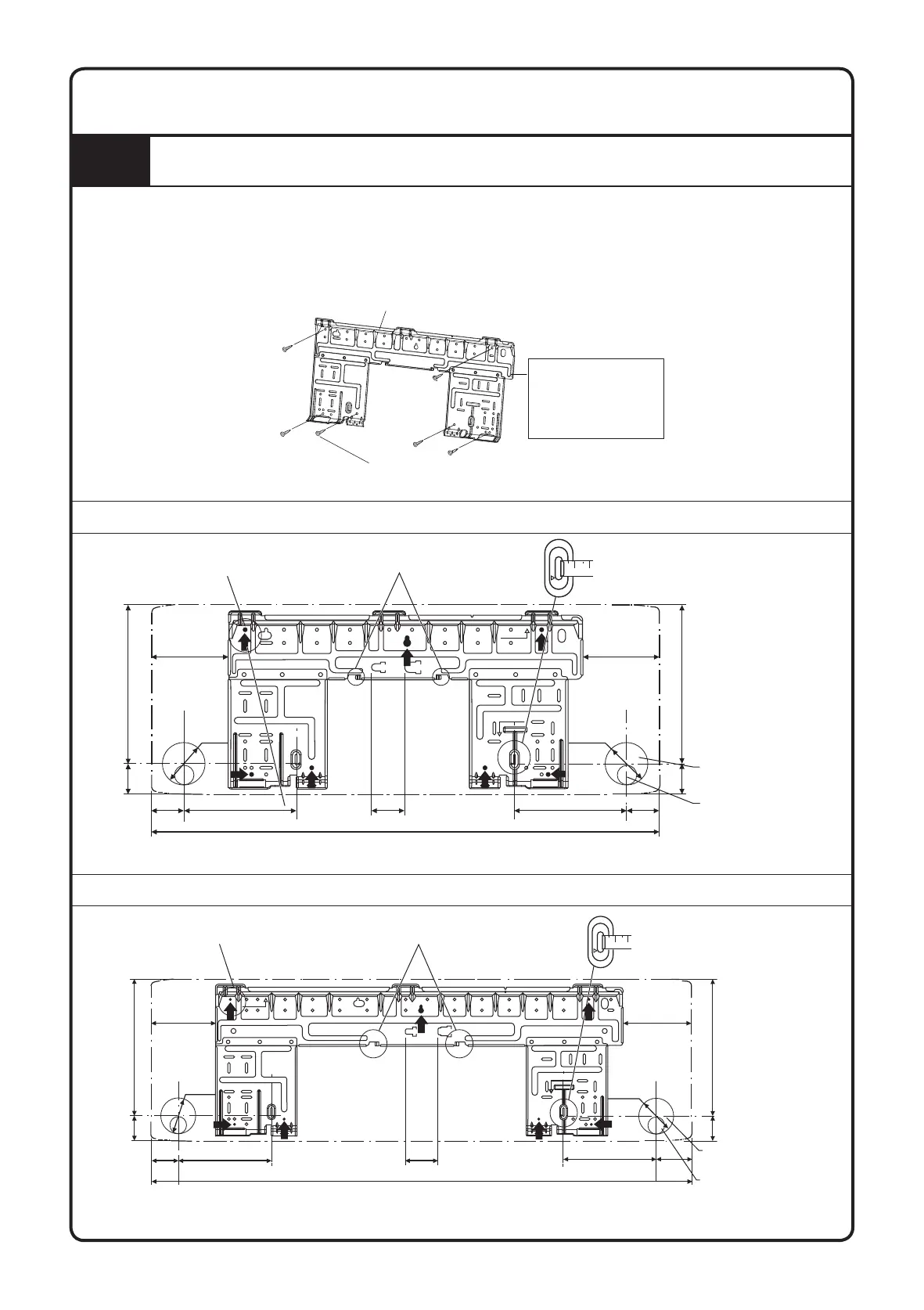

INDOOR INSTALLATION GUIDELINE
1
INSTALLING THE MOUNTING PLATE
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the drilling
points on the wall.
2) Secure the mounting plate to the wall with screws.
Recommended mounting plate retention spots and dimensions
 Mounting plate
fixing screw
The  mounting plate
should be installed
on a wall which can
support the weight of
the indoor unit.
 Mounting plate
INDOOR UNIT FTXC20/25/35/50
©
Z
116.5
241.6
46.4
770
170 055.94
49.5170
46.4 241.6
117
Ø 65
Ø 65
Recommended mounting plate
retention spots (7 spots in all)
Place a leveler
on these tabs.
Use a tape measure as
shown.
Position the end of the
tape measure at
Through-the-wall hole
Ø 65mm
Drain hose position
unit : mm
All dimensions are in mm
INDOOR UNIT FTXC60/71
©
Z
251.6
45.4
170
60
990
49.5
117
Ø 65
126.5
251.6
45.4
65.5170
Ø 65
Recommended mounting plate
retention spots (7 spots in all)
Place a leveler
on these tabs.
Use a tape measure as
shown.
Position the end of the
tape measure at
Through-the-wall hole
Ø 65mm
Drain hose position
unit : mm
All dimensions are in mm
