CTXS-L, FTXS-L Series SiUS12-928_B
93 Operation Manual
CTXS07LVJU, FTXS09/12LVJU
14
NOTE
15˚
45˚
80˚
30˚
70˚
80˚
CAUTION

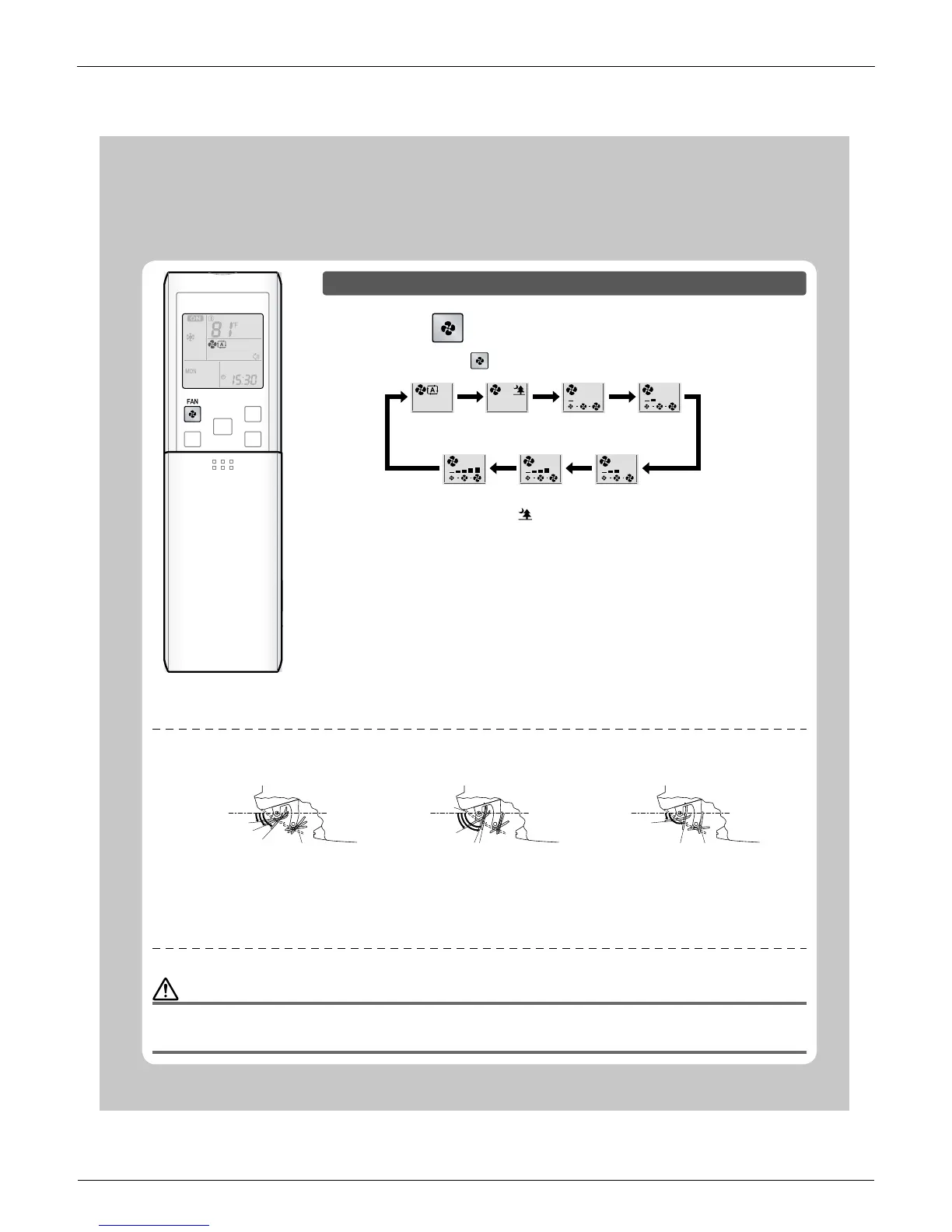

To adjust the airflow rate setting
Press .
• Each pressing of advances the airflow rate setting in sequence.
Auto Indoor unit quiet
High Middle high
Middle lowLow
Middle
When the airflow is set to “ ”, indoor unit quiet operation will start and the noise
from the unit will become quieter.
• In indoor unit quiet operation, the airflow rate is set to a weak level.
• In DRY operation, the airflow rate setting is not variable.
Notes on the angles of the louvers
COOL and DRY operation HEAT operation
• The louvers swinging range depends on the operation. (See the figure.)
FAN operation
COMFORT
AIRFLOW
COMFORT AIRFLOW
Upper limit
Upper limit
Lower limit
Lower limit
Stop operation
Stop operation
Upper limit
Lower limit
Stop operation
Note on 3-D airflow
Note on airflow rate setting
• Using 3-D airflow circulates cold air, which tends to collected at the bottom of the room, and hot air, which tends to collect near the ceiling,
throughout the room, preventing areas of cold and hot developing.
• At smaller airflow rates, the cooling (heating) effect is also smaller.
• Always use a remote controller to adjust the angles of the louvers and fins. If you attempt to move the louvers and fins forcibly with hand when they
are swinging, the mechanism may be broken.
• Always use a remote controller to adjust the fins angles. Inside the air outlet, a fan is rotating at a high speed.
