Daikin SUPER MULTI NX G Series Service Manual

Function of Thermistor SiUS12-928_B
51 Function and Control
2. Function of Thermistor

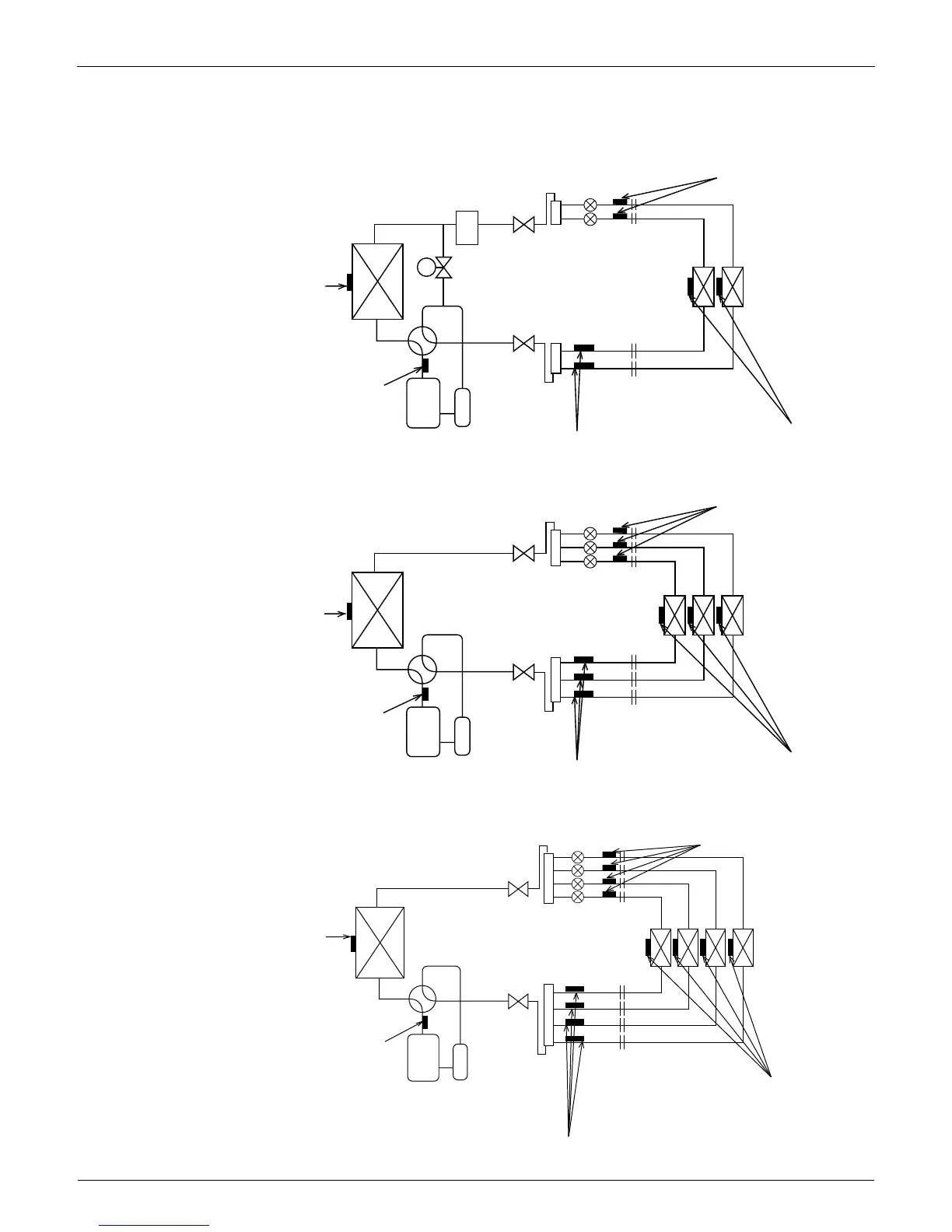

<2MXS18GVJU>
<3MXS24JVJU>
<4MXS32GVJU>
SV
D
Four way valve
Compressor
Defrost solenoid valve
EVA
EVB
Receiver
(1)
(2)
(3)
(4)
AB
(5)
(R17358)
Outdoor electronic
expansion valve
Four way valve
Compressor
EV B
EV C
EV A
(5)
ABC
(R17359)
(1)
(2)
(3)
(4)
Outdoor electronic
expansion valve
Four way valve
Compressor
EVC
EVD
EVB
EVA
(1)
(2)
(3)
(4)
(5)
(R17360)
DCBA
Outdoor electronic
expansion valve
