4. FDXS-D Series
4.1 Remote Controller
6
 Remote Controller
1
2
5
6
9
13
10
12
11
3
4
7
8
15
14
〈
ARC433B63 〉

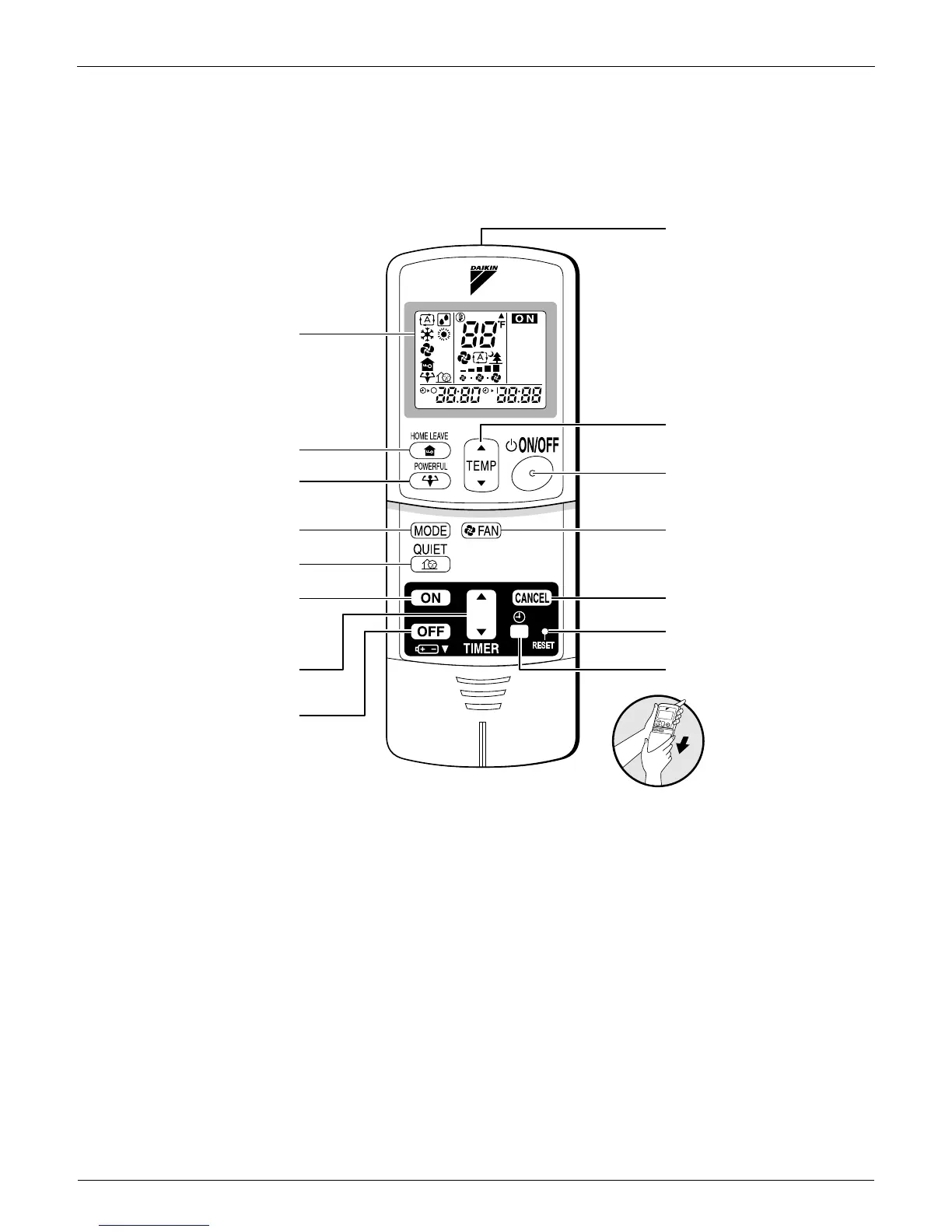

1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with
all its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
HOME LEAVE operation (page 14.)
4. POWERFUL button:
POWERFUL operation (page 12.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. QUIET button: OUTDOOR UNIT QUIET
operation
(page 13.)
9. FAN setting button:
• It selects the air flow rate setting.
10. ON TIMER button: (page 17.)
11. OFF TIMER button: (page 16.)
12. TIMER Setting button:
• It changes the time setting.
13. TIMER CANCEL button:
• It cancels the timer setting.
14. CLOCK button
15. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
