SiUS12-928_B Check
Service Diagnosis 200

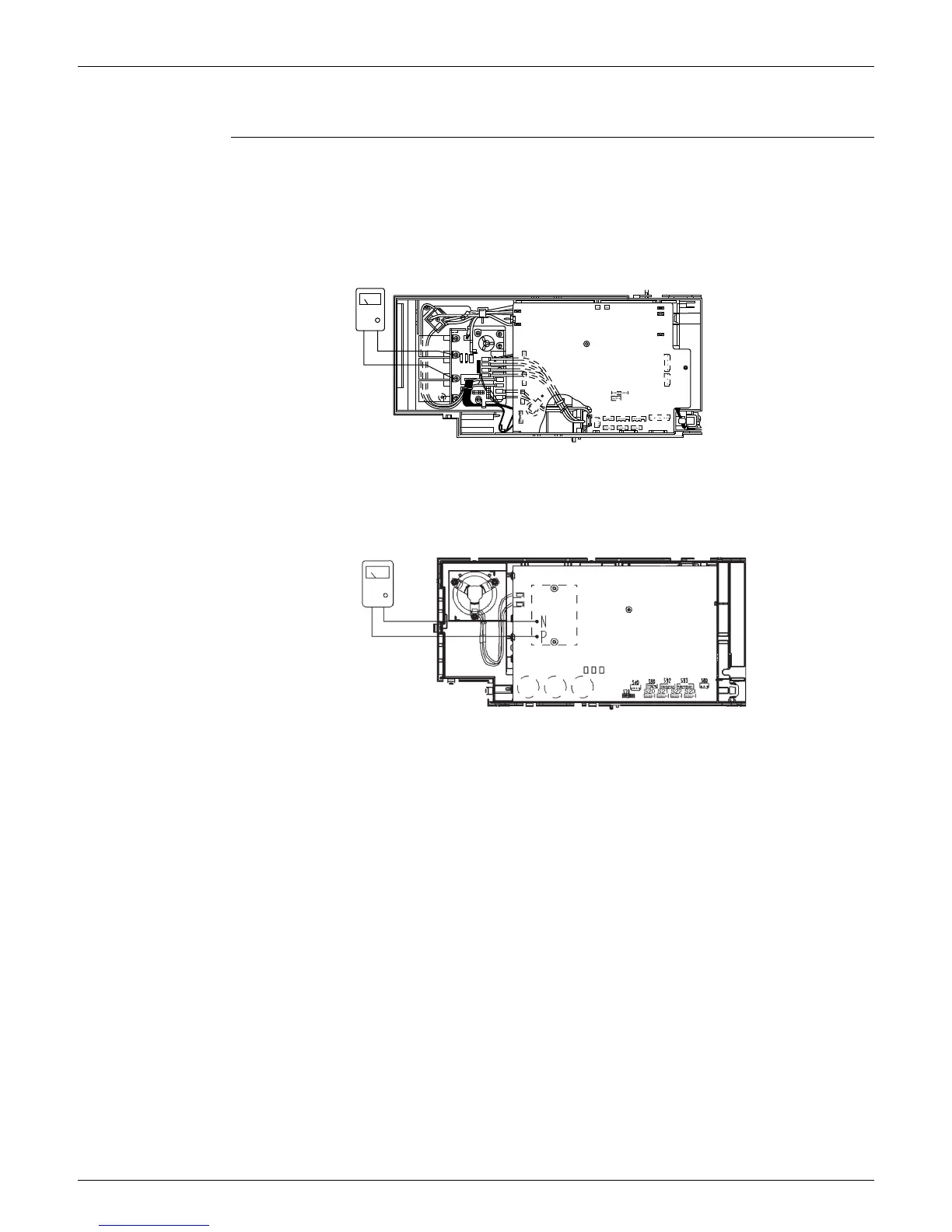

7.14 Capacitor Voltage Check
Check No.21 Before this check, be sure to check the main circuit for short circuit.
With the circuit breaker still on, measure the voltage according to the drawing of the model in
question. Be careful never to touch any live parts.
18 class
24/32 class
TB2
>PS<
TB3
P2 N1
S90 S92 S93
S80
S20 S21 S22
S40
(R11308)
Multimeter
(DC. voltage range)
(R12869)
Multimeter
(DC. voltage range)
