Outdoor Unit: 2MXS18GVJU SiUS12-928_B
203 Removal Procedure
1. Outdoor Unit: 2MXS18GVJU
1.1 Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Appearance features
2

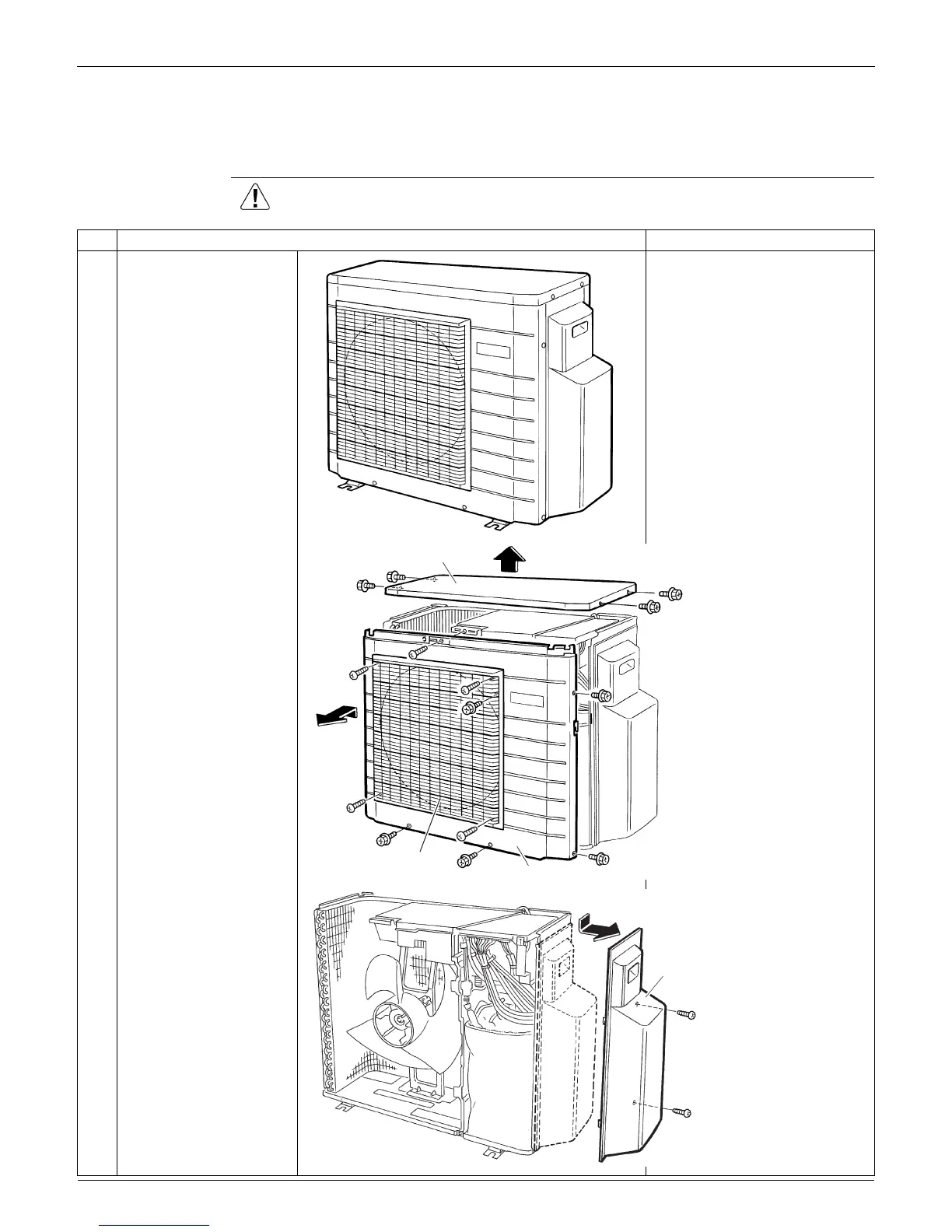

Remove the 4 screws of
the top panel and the 6
screws of the front panel.
3
Remove the 4 screws of
the discharge grille.
4
Remove the 2 screws of
the stop valve cover.
(R2159)
Top panel
Discharge grille
(R10351)
Front panel
(R10352)
Stop valve
cover
