SiUS12-928_B Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU
Removal Procedure 250
2.6 Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Open the sound blanket
(outer).
2
Remove the sound
blanket (top upper).
The sound blanket is fragile.
Carefully pass the discharge
pipe through it.
3
Remove the screw from
the partition plate (1) and
push the plate to the left
slightly for easy work.

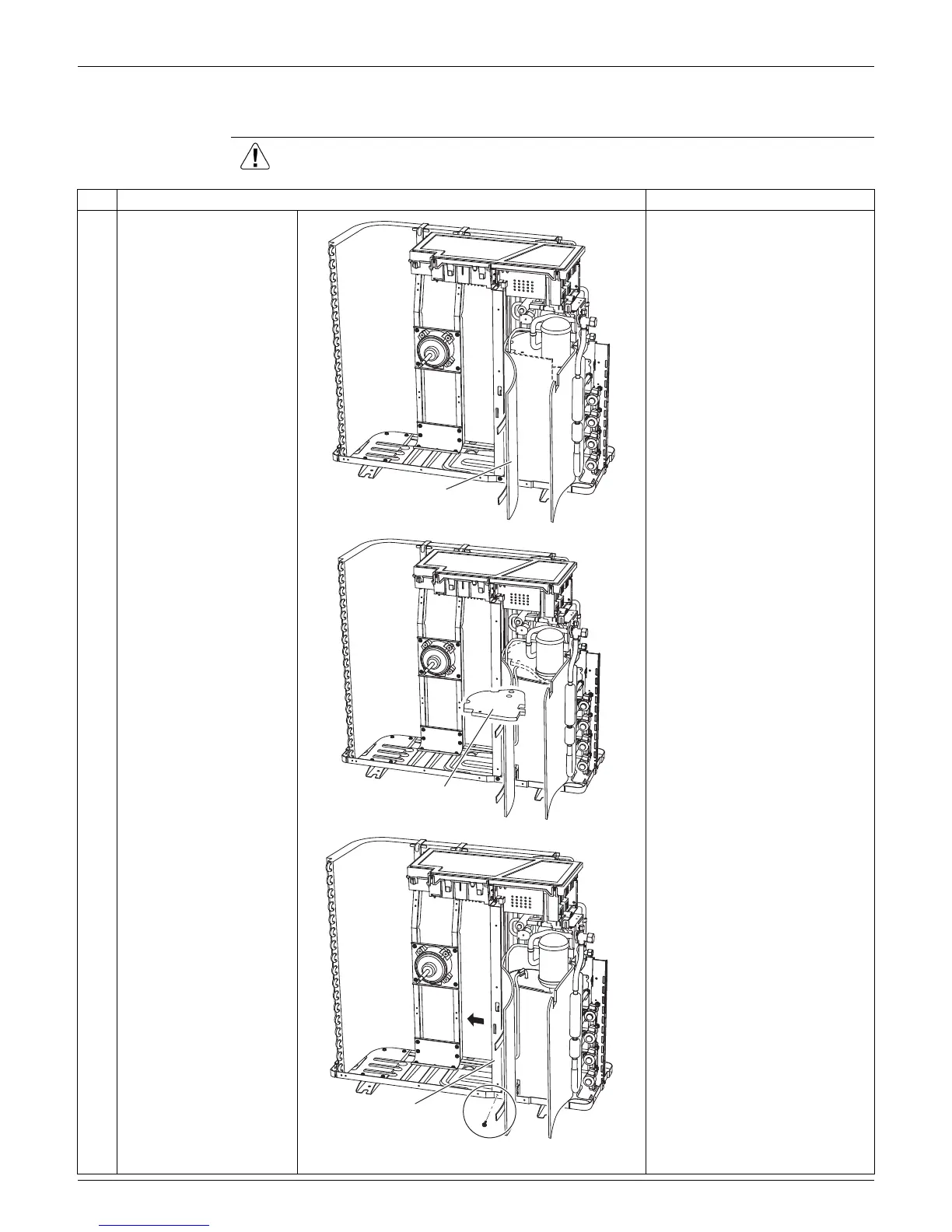

(R10433)
Sound blanket
(outer)
(R10434)
Sound blanket (top upper)
(R10435)
Partition plate (1)
